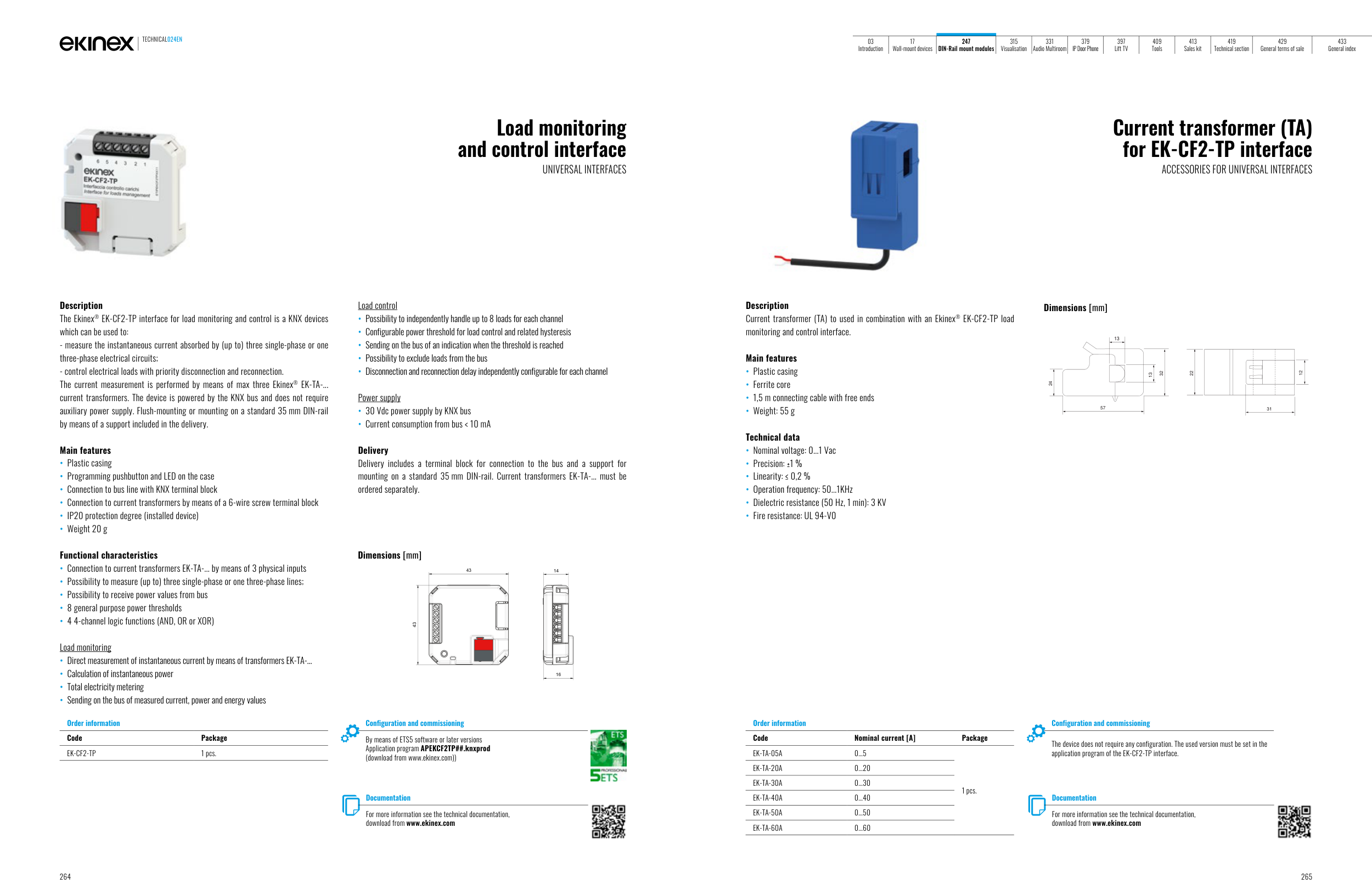

Load monitoring
and control interface
UNIVERSAL INTERFACES
Description
The Ekinex® EK-CF2-TP interface for load monitoring and control is a KNX devices
which can be used to:
- measure the instantaneous current absorbed by (up to) three single-phase or one
three-phase electrical circuits;
- control electrical loads with priority disconnection and reconnection.
The current measurement is performed by means of max three Ekinex® EK-TA-...
current transformers. The device is powered by the KNX bus and does not require
auxiliary power supply. Flush-mounting or mounting on a standard 35 mm DIN-rail
by means of a support included in the delivery.
Main features
• Plastic casing
• Programming pushbutton and LED on the case
• Connection to bus line with KNX terminal block
• Connection to current transformers by means of a 6-wire screw terminal block
• IP20 protection degree (installed device)
• Weight 20 g
Functional characteristics
• Connection to current transformers EK-TA-... by means of 3 physical inputs
• Possibility to measure (up to) three single-phase or one three-phase lines;
• Possibility to receive power values from bus
• 8 general purpose power thresholds
• 4 4-channel logic functions (AND, OR or XOR)
Load monitoring
• Direct measurement of instantaneous current by means of transformers EK-TA-...
• Calculation of instantaneous power
• Total electricity metering
• Sending on the bus of measured current, power and energy values
Load control
• Possibility to independently handle up to 8 loads for each channel
• Configurable power threshold for load control and related hysteresis
• Sending on the bus of an indication when the threshold is reached
• Possibility to exclude loads from the bus
• Disconnection and reconnection delay independently configurable for each channel
Power supply
• 30 Vdc power supply by KNX bus
• Current consumption from bus < 10 mA
Delivery
Delivery includes a terminal block for connection to the bus and a support for
mounting on a standard 35 mm DIN-rail. Current transformers EK-TA-... must be
ordered separately.
Order information
Code
Package
EK-CF2-TP
1 pcs.
Configuration and commissioning
By means of ETS5 software or later versions
Application program APEKCF2TP##.knxprod
(download from www.ekinex.com))
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Dimensions [mm]
43
43
16
14
Current transformer (TA)
for EK-CF2-TP interface
ACCESSORIES FOR UNIVERSAL INTERFACES
Description
Current transformer (TA) to used in combination with an Ekinex® EK-CF2-TP load
monitoring and control interface.
Main features
• Plastic casing
• Ferrite core
• 1,5 m connecting cable with free ends
• Weight: 55 g
Technical data
• Nominal voltage: 0...1 Vac
• Precision: ±1 %
• Linearity: ≤ 0,2 %
• Operation frequency: 50...1KHz
• Dielectric resistance (50 Hz, 1 min): 3 KV
• Fire resistance: UL 94-V0
Order information
Code
Nominal current [A]
Package
EK-TA-05A
0...5
1 pcs.
EK-TA-20A
0...20
EK-TA-30A
0...30
EK-TA-40A
0...40
EK-TA-50A
0...50
EK-TA-60A
0...60
Configuration and commissioning
The device does not require any configuration. The used version must be set in the
application program of the EK-CF2-TP interface.
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Dimensions [mm]
22
12
31
57
24
13
32
13
TECHNICAL024EN
