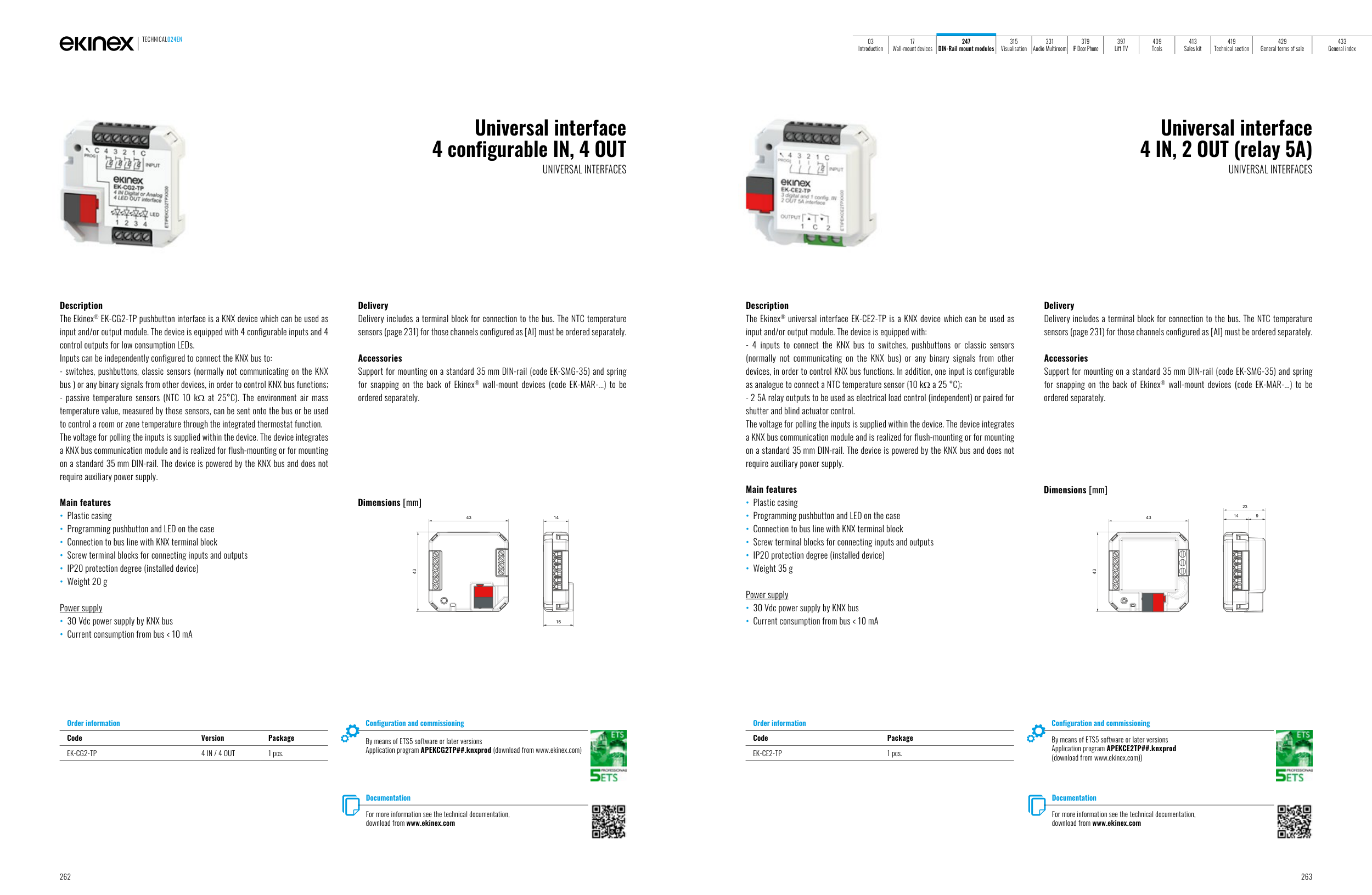

Universal interface
4 configurable IN, 4 OUT
UNIVERSAL INTERFACES
Description
The Ekinex® EK-CG2-TP pushbutton interface is a KNX device which can be used as
input and/or output module. The device is equipped with 4 configurable inputs and 4
control outputs for low consumption LEDs.
Inputs can be independently configured to connect the KNX bus to:
- switches, pushbuttons, classic sensors (normally not communicating on the KNX
bus ) or any binary signals from other devices, in order to control KNX bus functions;
- passive temperature sensors (NTC 10 kΩ at 25°C). The environment air mass
temperature value, measured by those sensors, can be sent onto the bus or be used
to control a room or zone temperature through the integrated thermostat function.
The voltage for polling the inputs is supplied within the device. The device integrates
a KNX bus communication module and is realized for flush-mounting or for mounting
on a standard 35 mm DIN-rail. The device is powered by the KNX bus and does not
require auxiliary power supply.
Main features
• Plastic casing
• Programming pushbutton and LED on the case
• Connection to bus line with KNX terminal block
• Screw terminal blocks for connecting inputs and outputs
• IP20 protection degree (installed device)
• Weight 20 g
Power supply
• 30 Vdc power supply by KNX bus
• Current consumption from bus < 10 mA
Delivery
Delivery includes a terminal block for connection to the bus. The NTC temperature
sensors (page 231) for those channels configured as [AI] must be ordered separately.
Accessories
Support for mounting on a standard 35 mm DIN-rail (code EK-SMG-35) and spring
for snapping on the back of Ekinex® wall-mount devices (code EK-MAR-...) to be
ordered separately.
Order information
Code
Version
Package
EK-CG2-TP
4 IN / 4 OUT
1 pcs.
Configuration and commissioning
By means of ETS5 software or later versions
Application program APEKCG2TP##.knxprod (download from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Dimensions [mm]
43
43
16
14
Universal interface
4 IN, 2 OUT (relay 5A)
UNIVERSAL INTERFACES
Description
The Ekinex® universal interface EK-CE2-TP is a KNX device which can be used as
input and/or output module. The device is equipped with:
- 4 inputs to connect the KNX bus to switches, pushbuttons or classic sensors
(normally not communicating on the KNX bus) or any binary signals from other
devices, in order to control KNX bus functions. In addition, one input is configurable
as analogue to connect a NTC temperature sensor (10 kΩ a 25 °C);
- 2 5A relay outputs to be used as electrical load control (independent) or paired for
shutter and blind actuator control.
The voltage for polling the inputs is supplied within the device. The device integrates
a KNX bus communication module and is realized for flush-mounting or for mounting
on a standard 35 mm DIN-rail. The device is powered by the KNX bus and does not
require auxiliary power supply.
Main features
• Plastic casing
• Programming pushbutton and LED on the case
• Connection to bus line with KNX terminal block
• Screw terminal blocks for connecting inputs and outputs
• IP20 protection degree (installed device)
• Weight 35 g
Power supply
• 30 Vdc power supply by KNX bus
• Current consumption from bus < 10 mA
Delivery
Delivery includes a terminal block for connection to the bus. The NTC temperature
sensors (page 231) for those channels configured as [AI] must be ordered separately.
Accessories
Support for mounting on a standard 35 mm DIN-rail (code EK-SMG-35) and spring
for snapping on the back of Ekinex® wall-mount devices (code EK-MAR-...) to be
ordered separately.
Order information
Code
Package
EK-CE2-TP
1 pcs.
Configuration and commissioning
By means of ETS5 software or later versions
Application program APEKCE2TP##.knxprod
(download from www.ekinex.com))
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Dimensions [mm]
43
43
14
9
23
