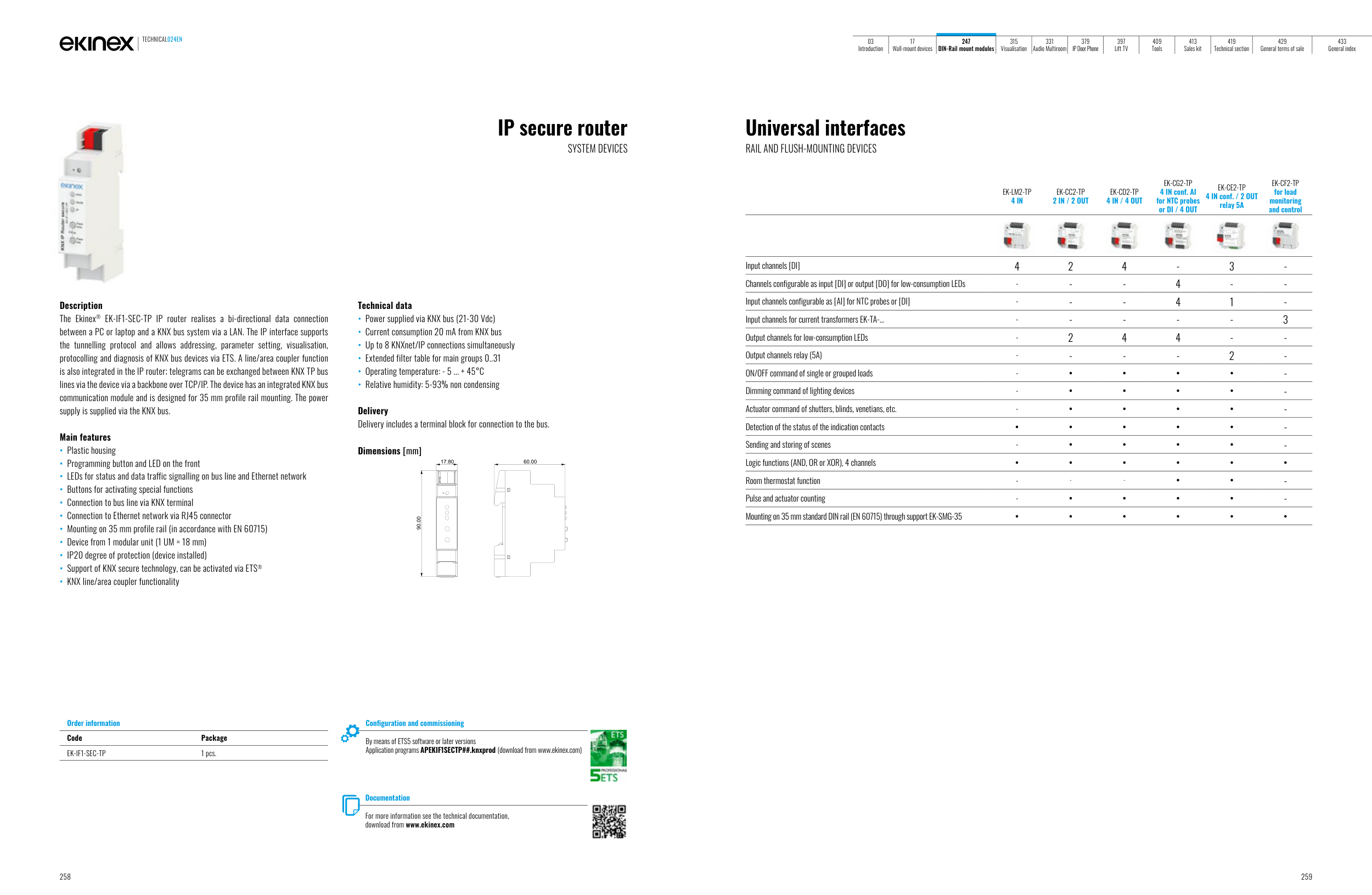

IP secure router
SYSTEM DEVICES
Description
The Ekinex® EK-IF1-SEC-TP IP router realises a bi-directional data connection
between a PC or laptop and a KNX bus system via a LAN. The IP interface supports
the tunnelling protocol and allows addressing, parameter setting, visualisation,
protocolling and diagnosis of KNX bus devices via ETS. A line/area coupler function
is also integrated in the IP router; telegrams can be exchanged between KNX TP bus
lines via the device via a backbone over TCP/IP. The device has an integrated KNX bus
communication module and is designed for 35 mm profile rail mounting. The power
supply is supplied via the KNX bus.
Main features
• Plastic housing
• Programming button and LED on the front
• LEDs for status and data traffic signalling on bus line and Ethernet network
• Buttons for activating special functions
• Connection to bus line via KNX terminal
• Connection to Ethernet network via RJ45 connector
• Mounting on 35 mm profile rail (in accordance with EN 60715)
• Device from 1 modular unit (1 UM = 18 mm)
• IP20 degree of protection (device installed)
• Support of KNX secure technology, can be activated via ETS®
• KNX line/area coupler functionality
Technical data
• Power supplied via KNX bus (21-30 Vdc)
• Current consumption 20 mA from KNX bus
• Up to 8 KNXnet/IP connections simultaneously
• Extended filter table for main groups 0..31
• Operating temperature: - 5 ... + 45°C
• Relative humidity: 5-93% non condensing
Delivery
Delivery includes a terminal block for connection to the bus.
Order information
Code
Package
EK-IF1-SEC-TP
1 pcs.
Configuration and commissioning
By means of ETS5 software or later versions
Application programs APEKIF1SECTP##.knxprod (download from www.ekinex.com)
Dimensions [mm]
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Universal interfaces
RAIL AND FLUSH-MOUNTING DEVICES
EK-LM2-TP
4 IN
EK-CC2-TP
2 IN / 2 OUT
EK-CD2-TP
4 IN / 4 OUT
EK-CG2-TP
4 IN conf. AI
for NTC probes
or DI / 4 OUT
EK-CE2-TP
4 IN conf. / 2 OUT
relay 5A
EK-CF2-TP
for load
monitoring
and control
Input channels [DI]
4
2
4
-
3
-
Channels configurable as input [DI] or output [DO] for low-consumption LEDs
-
-
-
4
-
-
Input channels configurable as [AI] for NTC probes or [DI]
-
-
-
4
1
-
Input channels for current transformers EK-TA-...
-
-
-
-
-
3
Output channels for low-consumption LEDs
-
2
4
4
-
-
Output channels relay (5A)
-
-
-
-
2
-
ON/OFF command of single or grouped loads
-
•
•
•
•
-
Dimming command of lighting devices
-
•
•
•
•
-
Actuator command of shutters, blinds, venetians, etc.
-
•
•
•
•
-
Detection of the status of the indication contacts
•
•
•
•
•
-
Sending and storing of scenes
-
•
•
•
•
-
Logic functions (AND, OR or XOR), 4 channels
•
•
•
•
•
•
Room thermostat function
-
-
-
•
•
-
Pulse and actuator counting
-
•
•
•
•
-
Mounting on 35 mm standard DIN rail (EN 60715) through support EK-SMG-35
•
•
•
•
•
•
