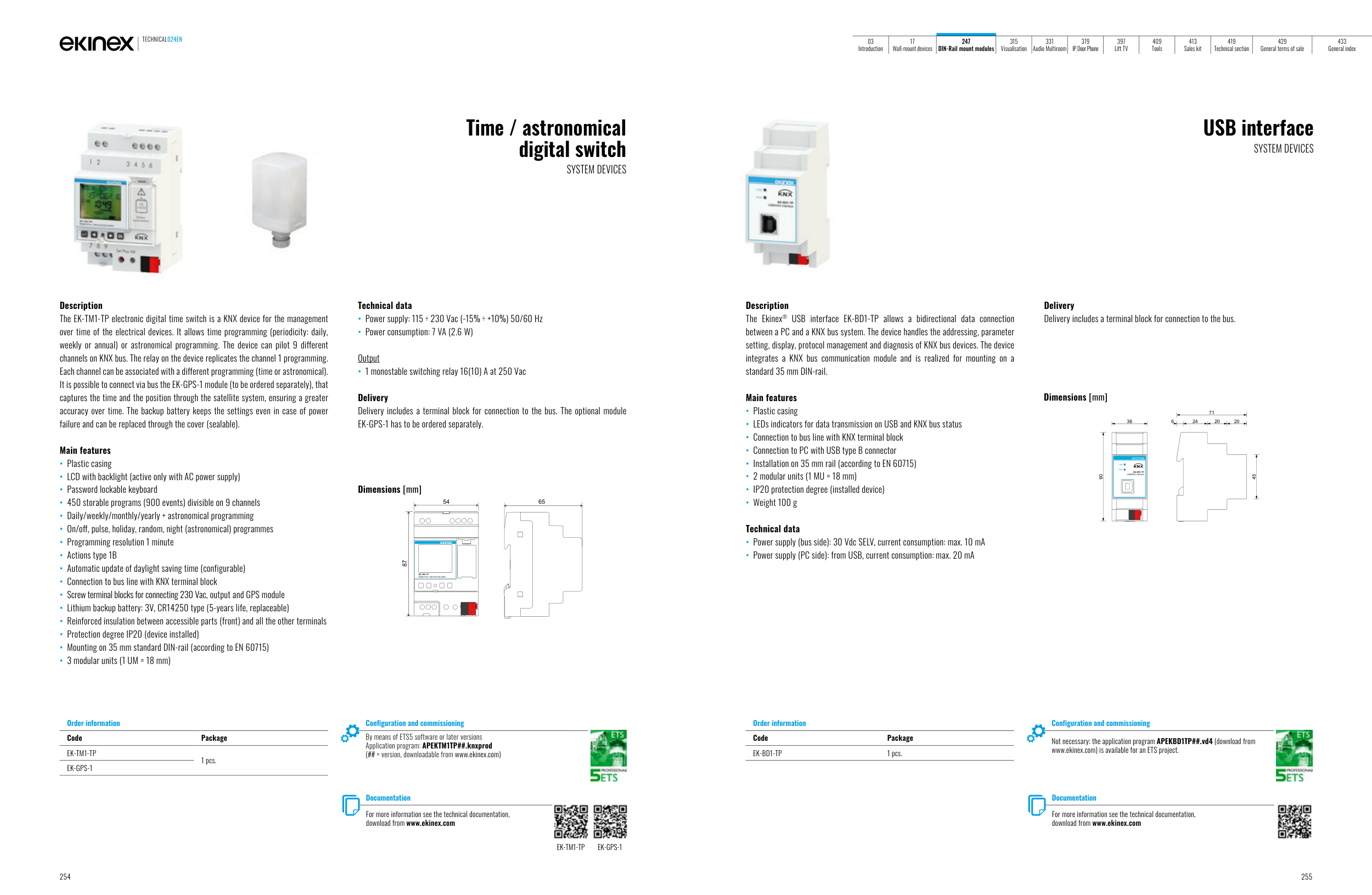

Description
The EK-TM1-TP electronic digital time switch is a KNX device for the management
over time of the electrical devices. It allows time programming (periodicity: daily,
weekly or annual) or astronomical programming. The device can pilot 9 different
channels on KNX bus. The relay on the device replicates the channel 1 programming.
Each channel can be associated with a different programming (time or astronomical).
It is possible to connect via bus the EK-GPS-1 module (to be ordered separately), that
captures the time and the position through the satellite system, ensuring a greater
accuracy over time. The backup battery keeps the settings even in case of power
failure and can be replaced through the cover (sealable).
Main features
• Plastic casing
• LCD with backlight (active only with AC power supply)
• Password lockable keyboard
• 450 storable programs (900 events) divisible on 9 channels
• Daily/weekly/monthly/yearly + astronomical programming
• On/off, pulse, holiday, random, night (astronomical) programmes
• Programming resolution 1 minute
• Actions type 1B
• Automatic update of daylight saving time (configurable)
• Connection to bus line with KNX terminal block
• Screw terminal blocks for connecting 230 Vac, output and GPS module
• Lithium backup battery: 3V, CR14250 type (5-years life, replaceable)
• Reinforced insulation between accessible parts (front) and all the other terminals
• Protection degree IP20 (device installed)
• Mounting on 35 mm standard DIN-rail (according to EN 60715)
• 3 modular units (1 UM = 18 mm)
Technical data
• Power supply: 115 ÷ 230 Vac (-15% ÷ +10%) 50/60 Hz
• Power consumption: 7 VA (2.6 W)
Output
• 1 monostable switching relay 16(10) A at 250 Vac
Delivery
Delivery includes a terminal block for connection to the bus. The optional module
EK-GPS-1 has to be ordered separately.
Time / astronomical
digital switch
SYSTEM DEVICES
Order information
Code
Package
EK-TM1-TP
1 pcs.
EK-GPS-1
Configuration and commissioning
By means of ETS5 software or later versions
Application program: APEKTM1TP##.knxprod
(## = version, downloadable from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Dimensions [mm]
54
87
65
EK-TM1-TP
Digital time / Astronomical switch
EK-TM1-TP
EK-GPS-1
USB interface
SYSTEM DEVICES
Description
The Ekinex® USB interface EK-BD1-TP allows a bidirectional data connection
between a PC and a KNX bus system. The device handles the addressing, parameter
setting, display, protocol management and diagnosis of KNX bus devices. The device
integrates a KNX bus communication module and is realized for mounting on a
standard 35 mm DIN-rail.
Main features
• Plastic casing
• LEDs indicators for data transmission on USB and KNX bus status
• Connection to bus line with KNX terminal block
• Connection to PC with USB type B connector
• Installation on 35 mm rail (according to EN 60715)
• 2 modular units (1 MU = 18 mm)
• IP20 protection degree (installed device)
• Weight 100 g
Technical data
• Power supply (bus side): 30 Vdc SELV, current consumption: max. 10 mA
• Power supply (PC side): from USB, current consumption: max. 20 mA
Delivery
Delivery includes a terminal block for connection to the bus.
Order information
Code
Package
EK-BD1-TP
1 pcs.
Configuration and commissioning
Not necessary; the application program APEKBD1TP##.vd4 (download from
www.ekinex.com) is available for an ETS project.
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Dimensions [mm]
36
6
24
20
20
71
45
90
USB
KNX
EK-BD1-TP
USB/KNX interface
