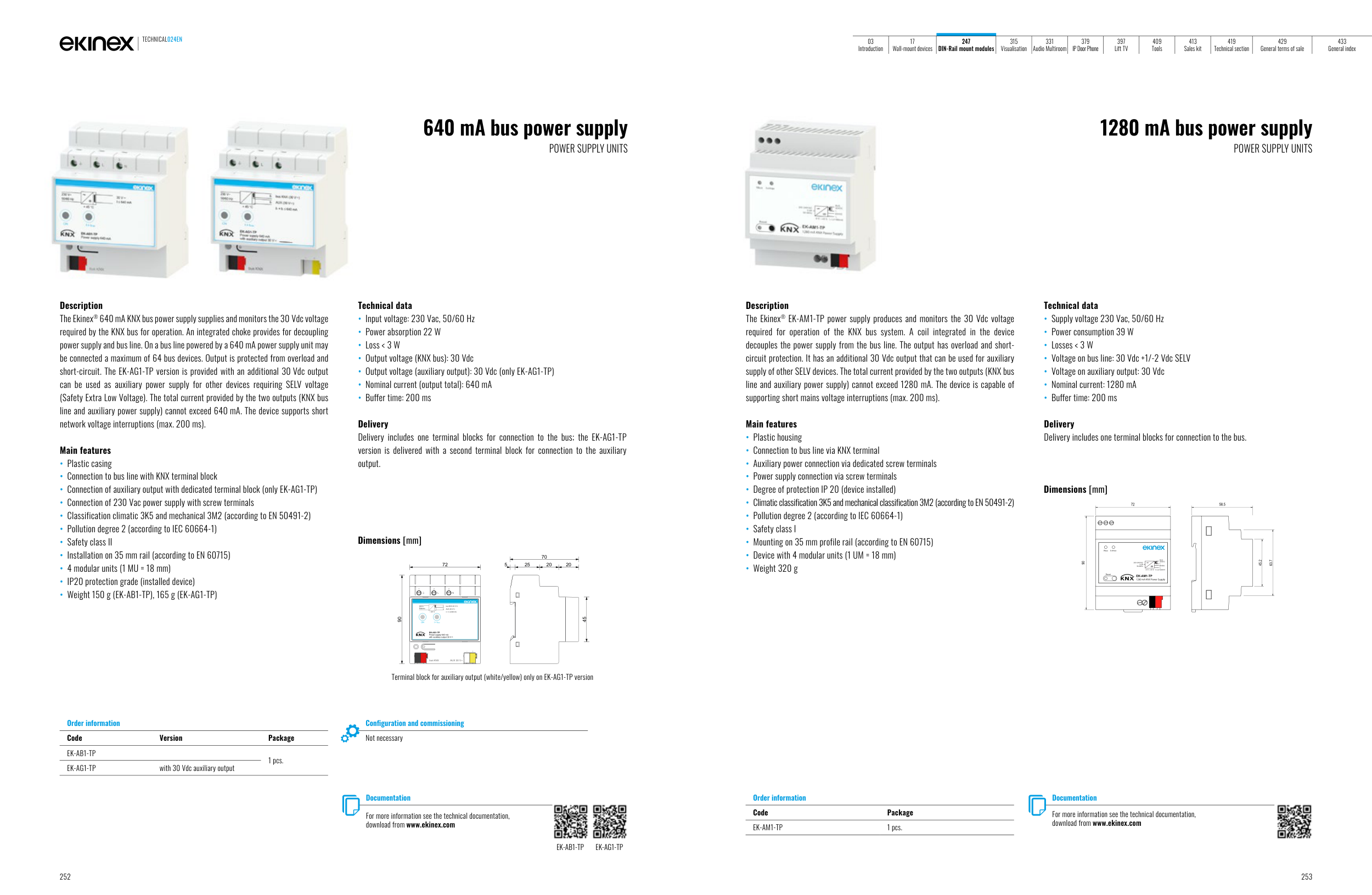

Description
The Ekinex® 640 mA KNX bus power supply supplies and monitors the 30 Vdc voltage
required by the KNX bus for operation. An integrated choke provides for decoupling
power supply and bus line. On a bus line powered by a 640 mA power supply unit may
be connected a maximum of 64 bus devices. Output is protected from overload and
short-circuit. The EK-AG1-TP version is provided with an additional 30 Vdc output
can be used as auxiliary power supply for other devices requiring SELV voltage
(Safety Extra Low Voltage). The total current provided by the two outputs (KNX bus
line and auxiliary power supply) cannot exceed 640 mA. The device supports short
network voltage interruptions (max. 200 ms).
Main features
• Plastic casing
• Connection to bus line with KNX terminal block
• Connection of auxiliary output with dedicated terminal block (only EK-AG1-TP)
• Connection of 230 Vac power supply with screw terminals
• Classification climatic 3K5 and mechanical 3M2 (according to EN 50491-2)
• Pollution degree 2 (according to IEC 60664-1)
• Safety class II
• Installation on 35 mm rail (according to EN 60715)
• 4 modular units (1 MU = 18 mm)
• IP20 protection grade (installed device)
• Weight 150 g (EK-AB1-TP), 165 g (EK-AG1-TP)
Technical data
• Input voltage: 230 Vac, 50/60 Hz
• Power absorption 22 W
• Loss < 3 W
• Output voltage (KNX bus): 30 Vdc
• Output voltage (auxiliary output): 30 Vdc (only EK-AG1-TP)
• Nominal current (output total): 640 mA
• Buffer time: 200 ms
Delivery
Delivery includes one terminal blocks for connection to the bus; the EK-AG1-TP
version is delivered with a second terminal block for connection to the auxiliary
output.
640 mA bus power supply
POWER SUPPLY UNITS
Order information
Code
Version
Package
EK-AB1-TP
1 pcs.
EK-AG1-TP
with 30 Vdc auxiliary output
Configuration and commissioning
Not necessary
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Dimensions [mm]
EK-AB1-TP
EK-AG1-TP
72
90
45
70
5
25
20
20
bus KNX
AUX 30 V
1
2
3
L
N
Terminal block for auxiliary output (white/yellow) only on EK-AG1-TP version
TECHNICAL024EN
252
253
03
Introduction
17
Wall-mount devices
247
DIN-Rail mount modules
315
Visualisation
331
Audio Multiroom
379
IP Door Phone
397
Lift TV
409
Tools
413
Sales kit
419
Technical section
429
General terms of sale
433
General index
Description
The Ekinex® EK-AM1-TP power supply produces and monitors the 30 Vdc voltage
required for operation of the KNX bus system. A coil integrated in the device
decouples the power supply from the bus line. The output has overload and short-
circuit protection. It has an additional 30 Vdc output that can be used for auxiliary
supply of other SELV devices. The total current provided by the two outputs (KNX bus
line and auxiliary power supply) cannot exceed 1280 mA. The device is capable of
supporting short mains voltage interruptions (max. 200 ms).
Main features
• Plastic housing
• Connection to bus line via KNX terminal
• Auxiliary power connection via dedicated screw terminals
• Power supply connection via screw terminals
• Degree of protection IP 20 (device installed)
• Climatic classification 3K5 and mechanical classification 3M2 (according to EN 50491-2)
• Pollution degree 2 (according to IEC 60664-1)
• Safety class I
• Mounting on 35 mm profile rail (according to EN 60715)
• Device with 4 modular units (1 UM = 18 mm)
• Weight 320 g
Technical data
• Supply voltage 230 Vac, 50/60 Hz
• Power consumption 39 W
• Losses < 3 W
• Voltage on bus line: 30 Vdc +1/-2 Vdc SELV
• Voltage on auxiliary output: 30 Vdc
• Nominal current: 1280 mA
• Buffer time: 200 ms
Delivery
Delivery includes one terminal blocks for connection to the bus.
1280 mA bus power supply
POWER SUPPLY UNITS
Dimensions [mm]
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
Package
EK-AM1-TP
1 pcs.
