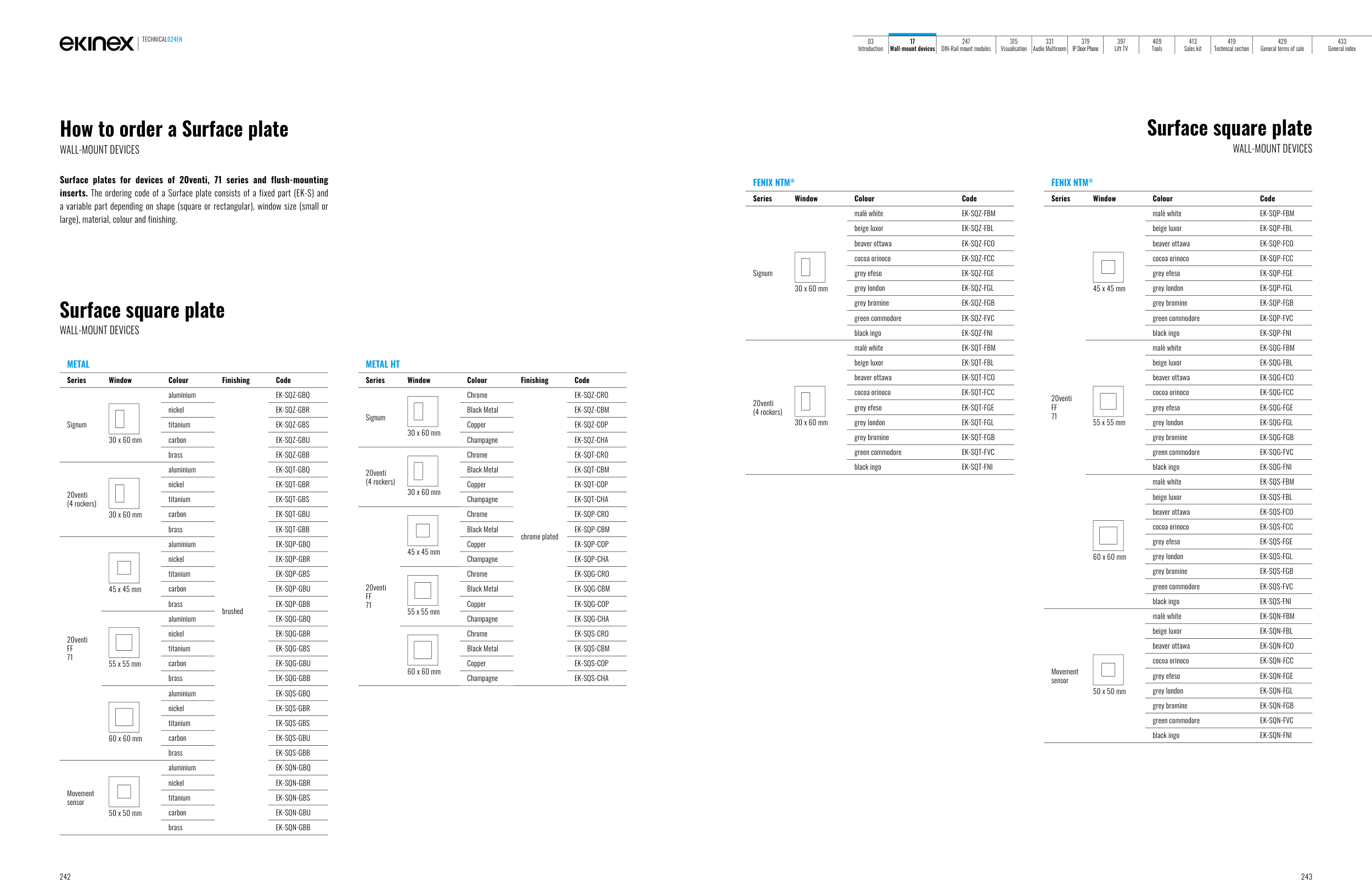

Surface square plate
WALL-MOUNT DEVICES
METAL
Series
Window
Colour
Finishing
Code
Signum
30 x 60 mm
aluminium
brushed
EK-SQZ-GBQ
nickel
EK-SQZ-GBR
titanium
EK-SQZ-GBS
carbon
EK-SQZ-GBU
brass
EK-SQZ-GBB
20venti
(4 rockers)
30 x 60 mm
aluminium
EK-SQT-GBQ
nickel
EK-SQT-GBR
titanium
EK-SQT-GBS
carbon
EK-SQT-GBU
brass
EK-SQT-GBB
20venti
FF
71
45 x 45 mm
aluminium
EK-SQP-GBQ
nickel
EK-SQP-GBR
titanium
EK-SQP-GBS
carbon
EK-SQP-GBU
brass
EK-SQP-GBB
55 x 55 mm
aluminium
EK-SQG-GBQ
nickel
EK-SQG-GBR
titanium
EK-SQG-GBS
carbon
EK-SQG-GBU
brass
EK-SQG-GBB
60 x 60 mm
aluminium
EK-SQS-GBQ
nickel
EK-SQS-GBR
titanium
EK-SQS-GBS
carbon
EK-SQS-GBU
brass
EK-SQS-GBB
Movement
sensor
50 x 50 mm
aluminium
EK-SQN-GBQ
nickel
EK-SQN-GBR
titanium
EK-SQN-GBS
carbon
EK-SQN-GBU
brass
EK-SQN-GBB
FENIX NTM®
Series
Window
Colour
Code
Signum
30 x 60 mm
malè white
EK-SQZ-FBM
beige luxor
EK-SQZ-FBL
beaver ottawa
EK-SQZ-FCO
cocoa orinoco
EK-SQZ-FCC
grey efeso
EK-SQZ-FGE
grey london
EK-SQZ-FGL
grey bromine
EK-SQZ-FGB
green commodore
EK-SQZ-FVC
black ingo
EK-SQZ-FNI
20venti
(4 rockers)
30 x 60 mm
malè white
EK-SQT-FBM
beige luxor
EK-SQT-FBL
beaver ottawa
EK-SQT-FCO
cocoa orinoco
EK-SQT-FCC
grey efeso
EK-SQT-FGE
grey london
EK-SQT-FGL
grey bromine
EK-SQT-FGB
green commodore
EK-SQT-FVC
black ingo
EK-SQT-FNI
How to order a Surface plate
WALL-MOUNT DEVICES
Surface plates for devices of 20venti, 71 series and flush-mounting
inserts. The ordering code of a Surface plate consists of a fixed part (EK-S) and
a variable part depending on shape (square or rectangular), window size (small or
large), material, colour and finishing.
METAL HT
Series
Window
Colour
Finishing
Code
Signum
30 x 60 mm
Chrome
chrome plated
EK-SQZ-CRO
Black Metal
EK-SQZ-CBM
Copper
EK-SQZ-COP
Champagne
EK-SQZ-CHA
20venti
(4 rockers)
30 x 60 mm
Chrome
EK-SQT-CRO
Black Metal
EK-SQT-CBM
Copper
EK-SQT-COP
Champagne
EK-SQT-CHA
20venti
FF
71
45 x 45 mm
Chrome
EK-SQP-CRO
Black Metal
EK-SQP-CBM
Copper
EK-SQP-COP
Champagne
EK-SQP-CHA
55 x 55 mm
Chrome
EK-SQG-CRO
Black Metal
EK-SQG-CBM
Copper
EK-SQG-COP
Champagne
EK-SQG-CHA
60 x 60 mm
Chrome
EK-SQS-CRO
Black Metal
EK-SQS-CBM
Copper
EK-SQS-COP
Champagne
EK-SQS-CHA
Surface square plate
WALL-MOUNT DEVICES
FENIX NTM®
Series
Window
Colour
Code
20venti
FF
71
45 x 45 mm
malè white
EK-SQP-FBM
beige luxor
EK-SQP-FBL
beaver ottawa
EK-SQP-FCO
cocoa orinoco
EK-SQP-FCC
grey efeso
EK-SQP-FGE
grey london
EK-SQP-FGL
grey bromine
EK-SQP-FGB
green commodore
EK-SQP-FVC
black ingo
EK-SQP-FNI
55 x 55 mm
malè white
EK-SQG-FBM
beige luxor
EK-SQG-FBL
beaver ottawa
EK-SQG-FCO
cocoa orinoco
EK-SQG-FCC
grey efeso
EK-SQG-FGE
grey london
EK-SQG-FGL
grey bromine
EK-SQG-FGB
green commodore
EK-SQG-FVC
black ingo
EK-SQG-FNI
60 x 60 mm
malè white
EK-SQS-FBM
beige luxor
EK-SQS-FBL
beaver ottawa
EK-SQS-FCO
cocoa orinoco
EK-SQS-FCC
grey efeso
EK-SQS-FGE
grey london
EK-SQS-FGL
grey bromine
EK-SQS-FGB
green commodore
EK-SQS-FVC
black ingo
EK-SQS-FNI
Movement
sensor
50 x 50 mm
malè white
EK-SQN-FBM
beige luxor
EK-SQN-FBL
beaver ottawa
EK-SQN-FCO
cocoa orinoco
EK-SQN-FCC
grey efeso
EK-SQN-FGE
grey london
EK-SQN-FGL
grey bromine
EK-SQN-FGB
green commodore
EK-SQN-FVC
black ingo
EK-SQN-FNI
