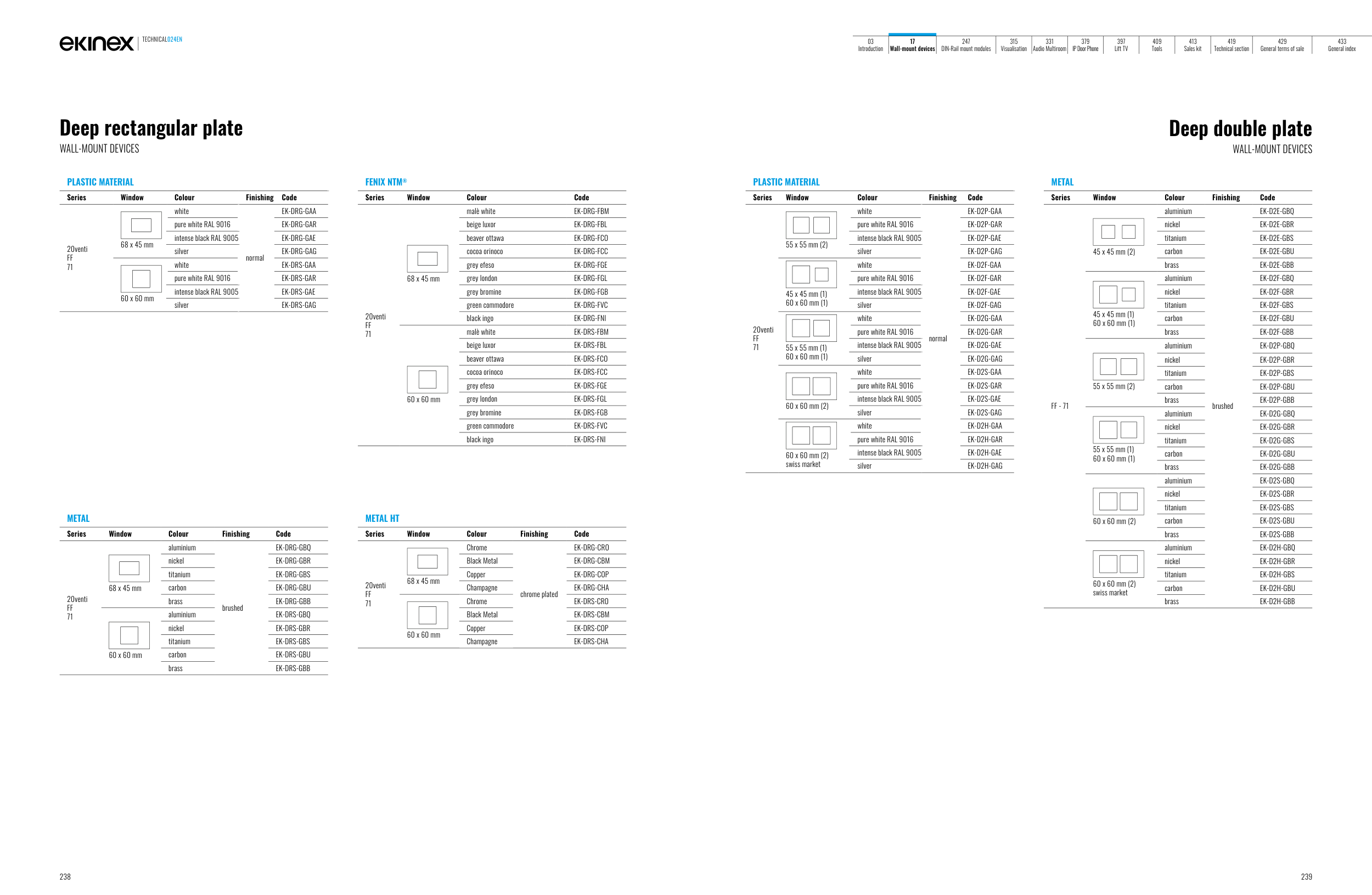

Deep rectangular plate
WALL-MOUNT DEVICES
FENIX NTM®
Series
Window
Colour
Code
20venti
FF
71
68 x 45 mm
malè white
EK-DRG-FBM
beige luxor
EK-DRG-FBL
beaver ottawa
EK-DRG-FCO
cocoa orinoco
EK-DRG-FCC
grey efeso
EK-DRG-FGE
grey london
EK-DRG-FGL
grey bromine
EK-DRG-FGB
green commodore
EK-DRG-FVC
black ingo
EK-DRG-FNI
60 x 60 mm
malè white
EK-DRS-FBM
beige luxor
EK-DRS-FBL
beaver ottawa
EK-DRS-FCO
cocoa orinoco
EK-DRS-FCC
grey efeso
EK-DRS-FGE
grey london
EK-DRS-FGL
grey bromine
EK-DRS-FGB
green commodore
EK-DRS-FVC
black ingo
EK-DRS-FNI
METAL
Series
Window
Colour
Finishing
Code
20venti
FF
71
68 x 45 mm
aluminium
brushed
EK-DRG-GBQ
nickel
EK-DRG-GBR
titanium
EK-DRG-GBS
carbon
EK-DRG-GBU
brass
EK-DRG-GBB
60 x 60 mm
aluminium
EK-DRS-GBQ
nickel
EK-DRS-GBR
titanium
EK-DRS-GBS
carbon
EK-DRS-GBU
brass
EK-DRS-GBB
PLASTIC MATERIAL
Series
Window
Colour
Finishing
Code
20venti
FF
71
68 x 45 mm
white
normal
EK-DRG-GAA
pure white RAL 9016
EK-DRG-GAR
intense black RAL 9005
EK-DRG-GAE
silver
EK-DRG-GAG
60 x 60 mm
white
EK-DRS-GAA
pure white RAL 9016
EK-DRS-GAR
intense black RAL 9005
EK-DRS-GAE
silver
EK-DRS-GAG
METAL HT
Series
Window
Colour
Finishing
Code
20venti
FF
71
68 x 45 mm
Chrome
chrome plated
EK-DRG-CRO
Black Metal
EK-DRG-CBM
Copper
EK-DRG-COP
Champagne
EK-DRG-CHA
60 x 60 mm
Chrome
EK-DRS-CRO
Black Metal
EK-DRS-CBM
Copper
EK-DRS-COP
Champagne
EK-DRS-CHA
Deep double plate
WALL-MOUNT DEVICES
METAL
Series
Window
Colour
Finishing
Code
FF - 71
45 x 45 mm (2)
aluminium
brushed
EK-D2E-GBQ
nickel
EK-D2E-GBR
titanium
EK-D2E-GBS
carbon
EK-D2E-GBU
brass
EK-D2E-GBB
45 x 45 mm (1)
60 x 60 mm (1)
aluminium
EK-D2F-GBQ
nickel
EK-D2F-GBR
titanium
EK-D2F-GBS
carbon
EK-D2F-GBU
brass
EK-D2F-GBB
55 x 55 mm (2)
aluminium
EK-D2P-GBQ
nickel
EK-D2P-GBR
titanium
EK-D2P-GBS
carbon
EK-D2P-GBU
brass
EK-D2P-GBB
55 x 55 mm (1)
60 x 60 mm (1)
aluminium
EK-D2G-GBQ
nickel
EK-D2G-GBR
titanium
EK-D2G-GBS
carbon
EK-D2G-GBU
brass
EK-D2G-GBB
60 x 60 mm (2)
aluminium
EK-D2S-GBQ
nickel
EK-D2S-GBR
titanium
EK-D2S-GBS
carbon
EK-D2S-GBU
brass
EK-D2S-GBB
60 x 60 mm (2)
swiss market
aluminium
EK-D2H-GBQ
nickel
EK-D2H-GBR
titanium
EK-D2H-GBS
carbon
EK-D2H-GBU
brass
EK-D2H-GBB
PLASTIC MATERIAL
Series
Window
Colour
Finishing
Code
20venti
FF
71
55 x 55 mm (2)
white
normal
EK-D2P-GAA
pure white RAL 9016
EK-D2P-GAR
intense black RAL 9005
EK-D2P-GAE
silver
EK-D2P-GAG
45 x 45 mm (1)
60 x 60 mm (1)
white
EK-D2F-GAA
pure white RAL 9016
EK-D2F-GAR
intense black RAL 9005
EK-D2F-GAE
silver
EK-D2F-GAG
55 x 55 mm (1)
60 x 60 mm (1)
white
EK-D2G-GAA
pure white RAL 9016
EK-D2G-GAR
intense black RAL 9005
EK-D2G-GAE
silver
EK-D2G-GAG
60 x 60 mm (2)
white
EK-D2S-GAA
pure white RAL 9016
EK-D2S-GAR
intense black RAL 9005
EK-D2S-GAE
silver
EK-D2S-GAG
60 x 60 mm (2)
swiss market
white
EK-D2H-GAA
pure white RAL 9016
EK-D2H-GAR
intense black RAL 9005
EK-D2H-GAE
silver
EK-D2H-GAG
