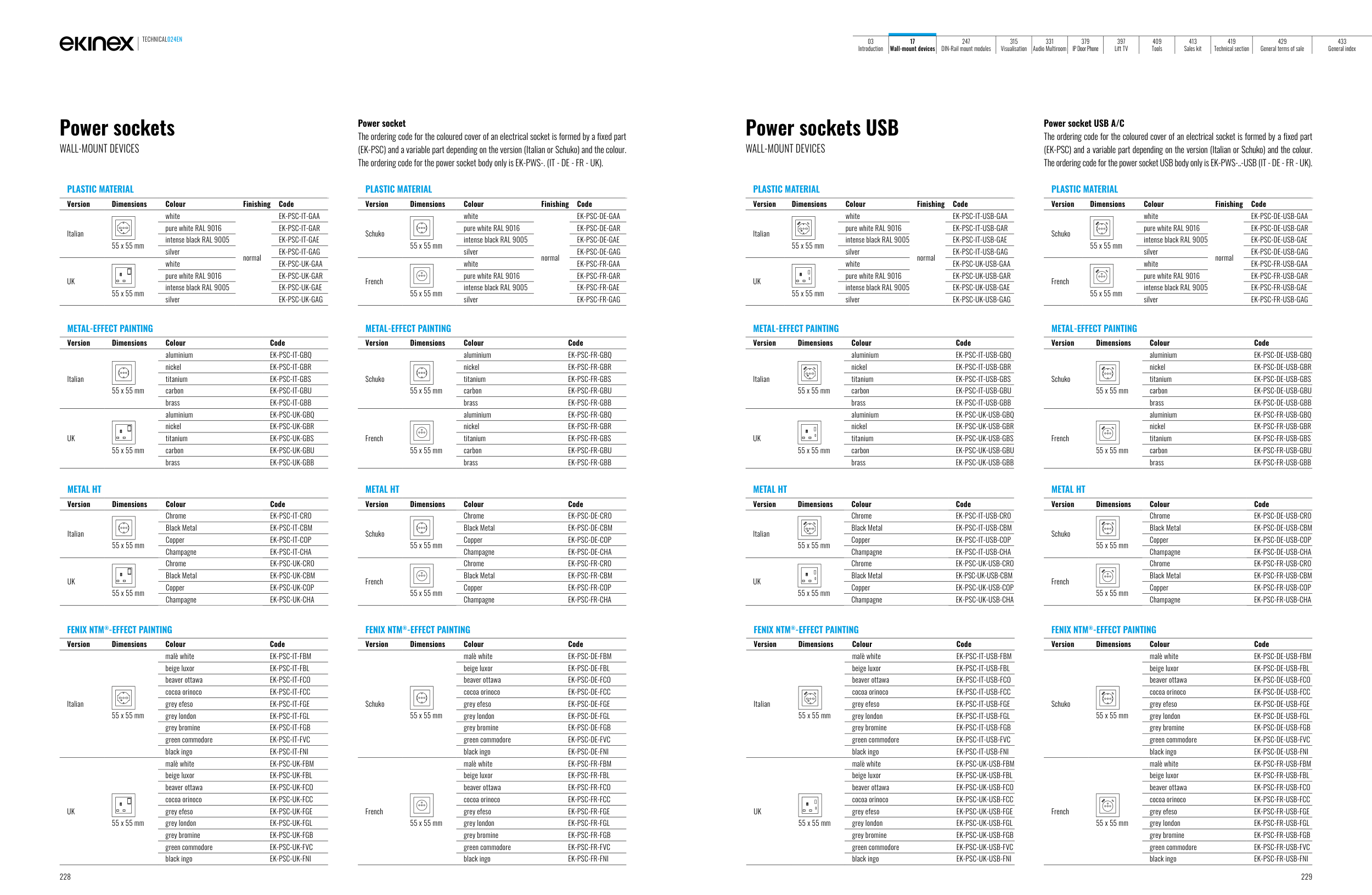

Power sockets
WALL-MOUNT DEVICES
Power sockets USB
WALL-MOUNT DEVICES
Power socket
The ordering code for the coloured cover of an electrical socket is formed by a fixed part
(EK-PSC) and a variable part depending on the version (Italian or Schuko) and the colour.
The ordering code for the power socket body only is EK-PWS-. (IT - DE - FR - UK).
Power socket USB A/C
The ordering code for the coloured cover of an electrical socket is formed by a fixed part
(EK-PSC) and a variable part depending on the version (Italian or Schuko) and the colour.
The ordering code for the power socket USB body only is EK-PWS-..-USB (IT - DE - FR - UK).
METAL-EFFECT PAINTING
Version
Dimensions
Colour
Code
Italian
55 x 55 mm
aluminium
EK-PSC-IT-USB-GBQ
nickel
EK-PSC-IT-USB-GBR
titanium
EK-PSC-IT-USB-GBS
carbon
EK-PSC-IT-USB-GBU
brass
EK-PSC-IT-USB-GBB
UK
55 x 55 mm
aluminium
EK-PSC-UK-USB-GBQ
nickel
EK-PSC-UK-USB-GBR
titanium
EK-PSC-UK-USB-GBS
carbon
EK-PSC-UK-USB-GBU
brass
EK-PSC-UK-USB-GBB
PLASTIC MATERIAL
Version
Dimensions
Colour
Finishing
Code
Italian
55 x 55 mm
white
normal
EK-PSC-IT-USB-GAA
pure white RAL 9016
EK-PSC-IT-USB-GAR
intense black RAL 9005
EK-PSC-IT-USB-GAE
silver
EK-PSC-IT-USB-GAG
UK
55 x 55 mm
white
EK-PSC-UK-USB-GAA
pure white RAL 9016
EK-PSC-UK-USB-GAR
intense black RAL 9005
EK-PSC-UK-USB-GAE
silver
EK-PSC-UK-USB-GAG
FENIX NTM®-EFFECT PAINTING
Version
Dimensions
Colour
Code
Italian
55 x 55 mm
malè white
EK-PSC-IT-USB-FBM
beige luxor
EK-PSC-IT-USB-FBL
beaver ottawa
EK-PSC-IT-USB-FCO
cocoa orinoco
EK-PSC-IT-USB-FCC
grey efeso
EK-PSC-IT-USB-FGE
grey london
EK-PSC-IT-USB-FGL
grey bromine
EK-PSC-IT-USB-FGB
green commodore
EK-PSC-IT-USB-FVC
black ingo
EK-PSC-IT-USB-FNI
UK
55 x 55 mm
malè white
EK-PSC-UK-USB-FBM
beige luxor
EK-PSC-UK-USB-FBL
beaver ottawa
EK-PSC-UK-USB-FCO
cocoa orinoco
EK-PSC-UK-USB-FCC
grey efeso
EK-PSC-UK-USB-FGE
grey london
EK-PSC-UK-USB-FGL
grey bromine
EK-PSC-UK-USB-FGB
green commodore
EK-PSC-UK-USB-FVC
black ingo
EK-PSC-UK-USB-FNI
METAL-EFFECT PAINTING
Version
Dimensions
Colour
Code
Schuko
55 x 55 mm
aluminium
EK-PSC-DE-USB-GBQ
nickel
EK-PSC-DE-USB-GBR
titanium
EK-PSC-DE-USB-GBS
carbon
EK-PSC-DE-USB-GBU
brass
EK-PSC-DE-USB-GBB
French
55 x 55 mm
aluminium
EK-PSC-FR-USB-GBQ
nickel
EK-PSC-FR-USB-GBR
titanium
EK-PSC-FR-USB-GBS
carbon
EK-PSC-FR-USB-GBU
brass
EK-PSC-FR-USB-GBB
PLASTIC MATERIAL
Version
Dimensions
Colour
Finishing
Code
Schuko
55 x 55 mm
white
normal
EK-PSC-DE-USB-GAA
pure white RAL 9016
EK-PSC-DE-USB-GAR
intense black RAL 9005
EK-PSC-DE-USB-GAE
silver
EK-PSC-DE-USB-GAG
French
55 x 55 mm
white
EK-PSC-FR-USB-GAA
pure white RAL 9016
EK-PSC-FR-USB-GAR
intense black RAL 9005
EK-PSC-FR-USB-GAE
silver
EK-PSC-FR-USB-GAG
FENIX NTM®-EFFECT PAINTING
Version
Dimensions
Colour
Code
Schuko
55 x 55 mm
malè white
EK-PSC-DE-USB-FBM
beige luxor
EK-PSC-DE-USB-FBL
beaver ottawa
EK-PSC-DE-USB-FCO
cocoa orinoco
EK-PSC-DE-USB-FCC
grey efeso
EK-PSC-DE-USB-FGE
grey london
EK-PSC-DE-USB-FGL
grey bromine
EK-PSC-DE-USB-FGB
green commodore
EK-PSC-DE-USB-FVC
black ingo
EK-PSC-DE-USB-FNI
French
55 x 55 mm
malè white
EK-PSC-FR-USB-FBM
beige luxor
EK-PSC-FR-USB-FBL
beaver ottawa
EK-PSC-FR-USB-FCO
cocoa orinoco
EK-PSC-FR-USB-FCC
grey efeso
EK-PSC-FR-USB-FGE
grey london
EK-PSC-FR-USB-FGL
grey bromine
EK-PSC-FR-USB-FGB
green commodore
EK-PSC-FR-USB-FVC
black ingo
EK-PSC-FR-USB-FNI
METAL-EFFECT PAINTING
Version
Dimensions
Colour
Code
Italian
55 x 55 mm
aluminium
EK-PSC-IT-GBQ
nickel
EK-PSC-IT-GBR
titanium
EK-PSC-IT-GBS
carbon
EK-PSC-IT-GBU
brass
EK-PSC-IT-GBB
UK
55 x 55 mm
aluminium
EK-PSC-UK-GBQ
nickel
EK-PSC-UK-GBR
titanium
EK-PSC-UK-GBS
carbon
EK-PSC-UK-GBU
brass
EK-PSC-UK-GBB
PLASTIC MATERIAL
Version
Dimensions
Colour
Finishing
Code
Italian
55 x 55 mm
white
normal
EK-PSC-IT-GAA
pure white RAL 9016
EK-PSC-IT-GAR
intense black RAL 9005
EK-PSC-IT-GAE
silver
EK-PSC-IT-GAG
UK
55 x 55 mm
white
EK-PSC-UK-GAA
pure white RAL 9016
EK-PSC-UK-GAR
intense black RAL 9005
EK-PSC-UK-GAE
silver
EK-PSC-UK-GAG
FENIX NTM®-EFFECT PAINTING
Version
Dimensions
Colour
Code
Italian
55 x 55 mm
malè white
EK-PSC-IT-FBM
beige luxor
EK-PSC-IT-FBL
beaver ottawa
EK-PSC-IT-FCO
cocoa orinoco
EK-PSC-IT-FCC
grey efeso
EK-PSC-IT-FGE
grey london
EK-PSC-IT-FGL
grey bromine
EK-PSC-IT-FGB
green commodore
EK-PSC-IT-FVC
black ingo
EK-PSC-IT-FNI
UK
55 x 55 mm
malè white
EK-PSC-UK-FBM
beige luxor
EK-PSC-UK-FBL
beaver ottawa
EK-PSC-UK-FCO
cocoa orinoco
EK-PSC-UK-FCC
grey efeso
EK-PSC-UK-FGE
grey london
EK-PSC-UK-FGL
grey bromine
EK-PSC-UK-FGB
green commodore
EK-PSC-UK-FVC
black ingo
EK-PSC-UK-FNI
METAL-EFFECT PAINTING
Version
Dimensions
Colour
Code
Schuko
55 x 55 mm
aluminium
EK-PSC-FR-GBQ
nickel
EK-PSC-FR-GBR
titanium
EK-PSC-FR-GBS
carbon
EK-PSC-FR-GBU
brass
EK-PSC-FR-GBB
French
55 x 55 mm
aluminium
EK-PSC-FR-GBQ
nickel
EK-PSC-FR-GBR
titanium
EK-PSC-FR-GBS
carbon
EK-PSC-FR-GBU
brass
EK-PSC-FR-GBB
PLASTIC MATERIAL
Version
Dimensions
Colour
Finishing
Code
Schuko
55 x 55 mm
white
normal
EK-PSC-DE-GAA
pure white RAL 9016
EK-PSC-DE-GAR
intense black RAL 9005
EK-PSC-DE-GAE
silver
EK-PSC-DE-GAG
French
55 x 55 mm
white
EK-PSC-FR-GAA
pure white RAL 9016
EK-PSC-FR-GAR
intense black RAL 9005
EK-PSC-FR-GAE
silver
EK-PSC-FR-GAG
FENIX NTM®-EFFECT PAINTING
Version
Dimensions
Colour
Code
Schuko
55 x 55 mm
malè white
EK-PSC-DE-FBM
beige luxor
EK-PSC-DE-FBL
beaver ottawa
EK-PSC-DE-FCO
cocoa orinoco
EK-PSC-DE-FCC
grey efeso
EK-PSC-DE-FGE
grey london
EK-PSC-DE-FGL
grey bromine
EK-PSC-DE-FGB
green commodore
EK-PSC-DE-FVC
black ingo
EK-PSC-DE-FNI
French
55 x 55 mm
malè white
EK-PSC-FR-FBM
beige luxor
EK-PSC-FR-FBL
beaver ottawa
EK-PSC-FR-FCO
cocoa orinoco
EK-PSC-FR-FCC
grey efeso
EK-PSC-FR-FGE
grey london
EK-PSC-FR-FGL
grey bromine
EK-PSC-FR-FGB
green commodore
EK-PSC-FR-FVC
black ingo
EK-PSC-FR-FNI
METAL HT
Version
Dimensions
Colour
Code
Italian
55 x 55 mm
Chrome
EK-PSC-IT-USB-CRO
Black Metal
EK-PSC-IT-USB-CBM
Copper
EK-PSC-IT-USB-COP
Champagne
EK-PSC-IT-USB-CHA
UK
55 x 55 mm
Chrome
EK-PSC-UK-USB-CRO
Black Metal
EK-PSC-UK-USB-CBM
Copper
EK-PSC-UK-USB-COP
Champagne
EK-PSC-UK-USB-CHA
METAL HT
Version
Dimensions
Colour
Code
Schuko
55 x 55 mm
Chrome
EK-PSC-DE-USB-CRO
Black Metal
EK-PSC-DE-USB-CBM
Copper
EK-PSC-DE-USB-COP
Champagne
EK-PSC-DE-USB-CHA
French
55 x 55 mm
Chrome
EK-PSC-FR-USB-CRO
Black Metal
EK-PSC-FR-USB-CBM
Copper
EK-PSC-FR-USB-COP
Champagne
EK-PSC-FR-USB-CHA
METAL HT
Version
Dimensions
Colour
Code
Italian
55 x 55 mm
Chrome
EK-PSC-IT-CRO
Black Metal
EK-PSC-IT-CBM
Copper
EK-PSC-IT-COP
Champagne
EK-PSC-IT-CHA
UK
55 x 55 mm
Chrome
EK-PSC-UK-CRO
Black Metal
EK-PSC-UK-CBM
Copper
EK-PSC-UK-COP
Champagne
EK-PSC-UK-CHA
METAL HT
Version
Dimensions
Colour
Code
Schuko
55 x 55 mm
Chrome
EK-PSC-DE-CRO
Black Metal
EK-PSC-DE-CBM
Copper
EK-PSC-DE-COP
Champagne
EK-PSC-DE-CHA
French
55 x 55 mm
Chrome
EK-PSC-FR-CRO
Black Metal
EK-PSC-FR-CBM
Copper
EK-PSC-FR-COP
Champagne
EK-PSC-FR-CHA
