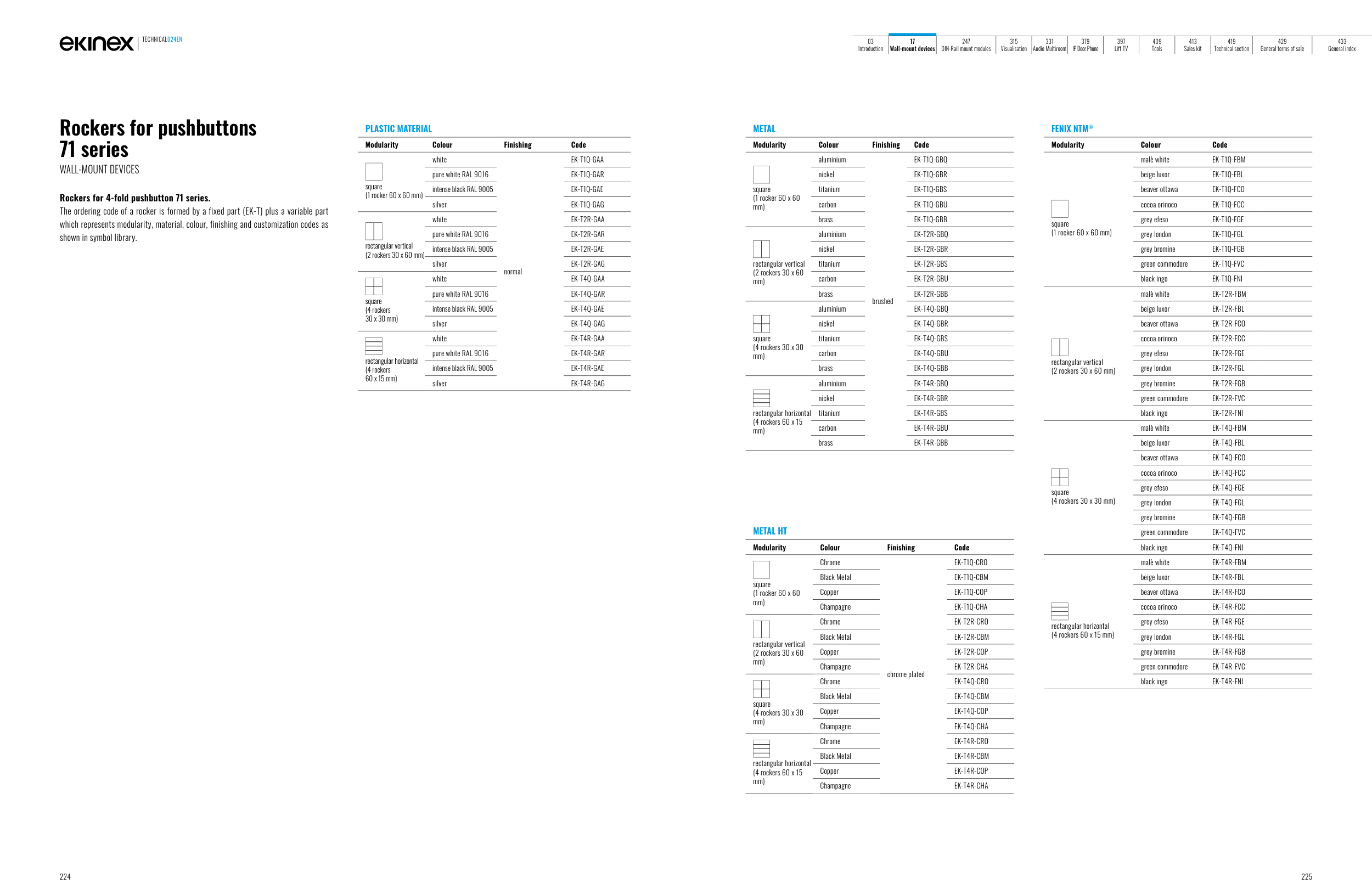

Rockers for 4-fold pushbutton 71 series.
The ordering code of a rocker is formed by a fixed part (EK-T) plus a variable part
which represents modularity, material, colour, finishing and customization codes as
shown in symbol library.
Rockers for pushbuttons
71 series
WALL-MOUNT DEVICES
PLASTIC MATERIAL
Modularity
Colour
Finishing
Code
square
(1 rocker 60 x 60 mm)
white
normal
EK-T1Q-GAA
pure white RAL 9016
EK-T1Q-GAR
intense black RAL 9005
EK-T1Q-GAE
silver
EK-T1Q-GAG
rectangular vertical
(2 rockers 30 x 60 mm)
white
EK-T2R-GAA
pure white RAL 9016
EK-T2R-GAR
intense black RAL 9005
EK-T2R-GAE
silver
EK-T2R-GAG
square
(4 rockers
30 x 30 mm)
white
EK-T4Q-GAA
pure white RAL 9016
EK-T4Q-GAR
intense black RAL 9005
EK-T4Q-GAE
silver
EK-T4Q-GAG
rectangular horizontal
(4 rockers
60 x 15 mm)
white
EK-T4R-GAA
pure white RAL 9016
EK-T4R-GAR
intense black RAL 9005
EK-T4R-GAE
silver
EK-T4R-GAG
METAL
Modularity
Colour
Finishing
Code
square
(1 rocker 60 x 60
mm)
aluminium
brushed
EK-T1Q-GBQ
nickel
EK-T1Q-GBR
titanium
EK-T1Q-GBS
carbon
EK-T1Q-GBU
brass
EK-T1Q-GBB
rectangular vertical
(2 rockers 30 x 60
mm)
aluminium
EK-T2R-GBQ
nickel
EK-T2R-GBR
titanium
EK-T2R-GBS
carbon
EK-T2R-GBU
brass
EK-T2R-GBB
square
(4 rockers 30 x 30
mm)
aluminium
EK-T4Q-GBQ
nickel
EK-T4Q-GBR
titanium
EK-T4Q-GBS
carbon
EK-T4Q-GBU
brass
EK-T4Q-GBB
rectangular horizontal
(4 rockers 60 x 15
mm)
aluminium
EK-T4R-GBQ
nickel
EK-T4R-GBR
titanium
EK-T4R-GBS
carbon
EK-T4R-GBU
brass
EK-T4R-GBB
FENIX NTM®
Modularity
Colour
Code
square
(1 rocker 60 x 60 mm)
malè white
EK-T1Q-FBM
beige luxor
EK-T1Q-FBL
beaver ottawa
EK-T1Q-FCO
cocoa orinoco
EK-T1Q-FCC
grey efeso
EK-T1Q-FGE
grey london
EK-T1Q-FGL
grey bromine
EK-T1Q-FGB
green commodore
EK-T1Q-FVC
black ingo
EK-T1Q-FNI
rectangular vertical
(2 rockers 30 x 60 mm)
malè white
EK-T2R-FBM
beige luxor
EK-T2R-FBL
beaver ottawa
EK-T2R-FCO
cocoa orinoco
EK-T2R-FCC
grey efeso
EK-T2R-FGE
grey london
EK-T2R-FGL
grey bromine
EK-T2R-FGB
green commodore
EK-T2R-FVC
black ingo
EK-T2R-FNI
square
(4 rockers 30 x 30 mm)
malè white
EK-T4Q-FBM
beige luxor
EK-T4Q-FBL
beaver ottawa
EK-T4Q-FCO
cocoa orinoco
EK-T4Q-FCC
grey efeso
EK-T4Q-FGE
grey london
EK-T4Q-FGL
grey bromine
EK-T4Q-FGB
green commodore
EK-T4Q-FVC
black ingo
EK-T4Q-FNI
rectangular horizontal
(4 rockers 60 x 15 mm)
malè white
EK-T4R-FBM
beige luxor
EK-T4R-FBL
beaver ottawa
EK-T4R-FCO
cocoa orinoco
EK-T4R-FCC
grey efeso
EK-T4R-FGE
grey london
EK-T4R-FGL
grey bromine
EK-T4R-FGB
green commodore
EK-T4R-FVC
black ingo
EK-T4R-FNI
METAL HT
Modularity
Colour
Finishing
Code
square
(1 rocker 60 x 60
mm)
Chrome
chrome plated
EK-T1Q-CRO
Black Metal
EK-T1Q-CBM
Copper
EK-T1Q-COP
Champagne
EK-T1Q-CHA
rectangular vertical
(2 rockers 30 x 60
mm)
Chrome
EK-T2R-CRO
Black Metal
EK-T2R-CBM
Copper
EK-T2R-COP
Champagne
EK-T2R-CHA
square
(4 rockers 30 x 30
mm)
Chrome
EK-T4Q-CRO
Black Metal
EK-T4Q-CBM
Copper
EK-T4Q-COP
Champagne
EK-T4Q-CHA
rectangular horizontal
(4 rockers 60 x 15
mm)
Chrome
EK-T4R-CRO
Black Metal
EK-T4R-CBM
Copper
EK-T4R-COP
Champagne
EK-T4R-CHA
