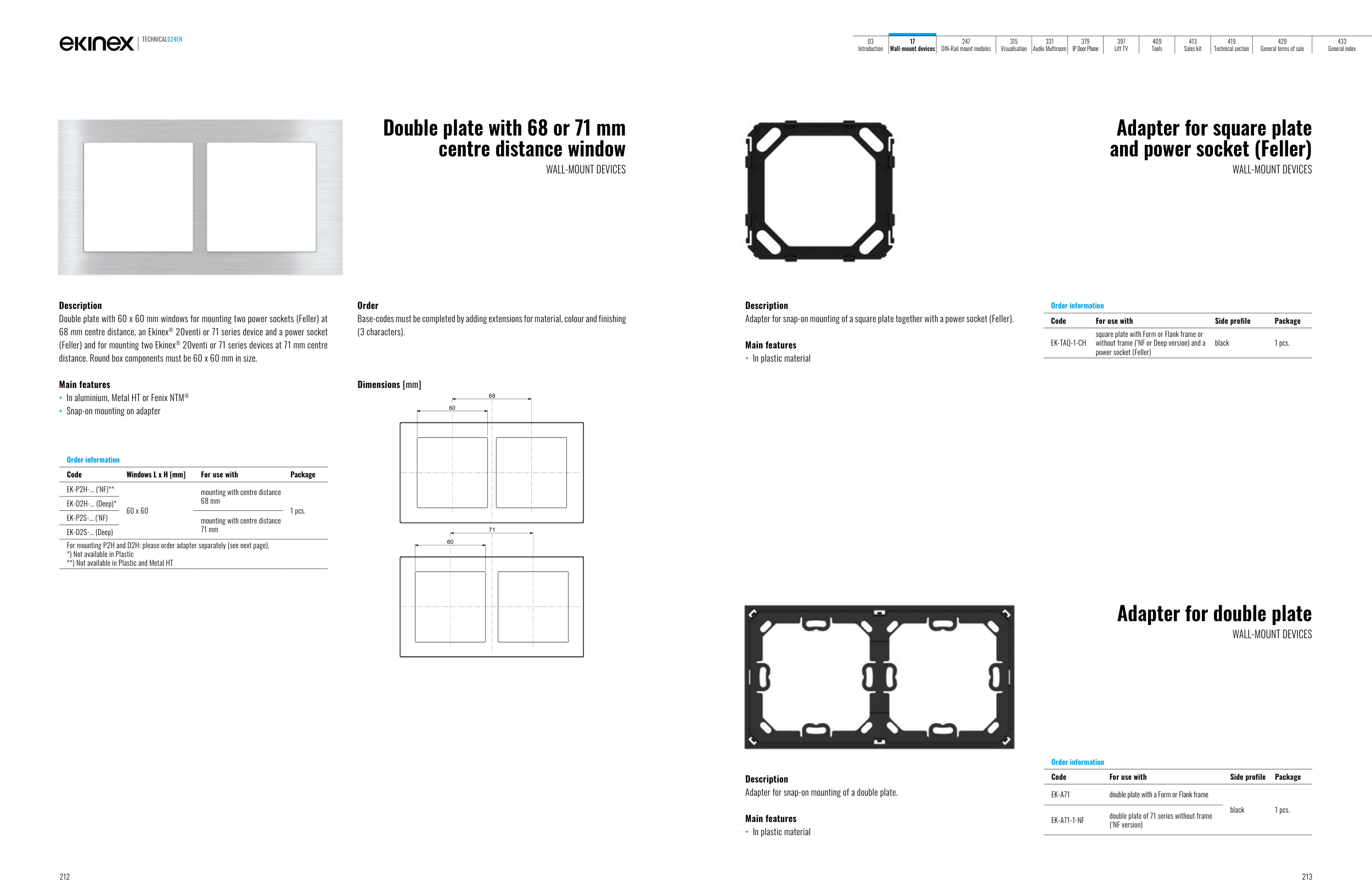

Description
Double plate with 60 x 60 mm windows for mounting two power sockets (Feller) at
68 mm centre distance, an Ekinex® 20venti or 71 series device and a power socket
(Feller) and for mounting two Ekinex® 20venti or 71 series devices at 71 mm centre
distance. Round box components must be 60 x 60 mm in size.
Main features
• In aluminium, Metal HT or Fenix NTM®
• Snap-on mounting on adapter
Order
Base-codes must be completed by adding extensions for material, colour and finishing
(3 characters).
Double plate with 68 or 71 mm
centre distance window
WALL-MOUNT DEVICES
Order information
Code
Windows L x H [mm]
For use with
Package
EK-P2H-... (‘NF)**
60 x 60
mounting with centre distance
68 mm
1 pcs.
EK-D2H-... (Deep)*
EK-P2S-... (‘NF)
mounting with centre distance
71 mm
EK-D2S-... (Deep)
For mounting P2H and D2H: please order adapter separately (see next page).
*) Not available in Plastic
**) Not available in Plastic and Metal HT
Adapter for double plate
WALL-MOUNT DEVICES
Dimensions [mm]
68
60
71
60
Adapter for square plate
and power socket (Feller)
WALL-MOUNT DEVICES
Description
Adapter for snap-on mounting of a square plate together with a power socket (Feller).
Main features
• In plastic material
Order information
Code
For use with
Side profile
Package
EK-TAQ-1-CH
square plate with Form or Flank frame or
without frame (‘NF or Deep version) and a
power socket (Feller)
black
1 pcs.
Description
Adapter for snap-on mounting of a double plate.
Main features
• In plastic material
Order information
Code
For use with
Side profile
Package
EK-A71
double plate with a Form or Flank frame
black
1 pcs.
EK-A71-1-NF
double plate of 71 series without frame
(‘NF version)
