Order information
Code
Installation
Description
EK-SM1-CHS
single
Replacement metal support for (Feller 60 x 60 mm) single socket
EK-SM1-CHT
Replacement metal support for (Feller 60 x 60 mm) triple socket
EK-SM2-CHX
double
horizontal
vertical
2 seats for Ekinex® 20venti or 71 series devices
EK-SM2-CHY
1 seat for Ekinex® 20venti or 71 series device
1 seat for 1 single socket (Feller 60 x 60 mm)
EK-SM2-CHZ
2 seats for sockets (Feller 60 x 60 mm)
Single mounting supports
Single replacement metal support for mounting of single or triple socket (Feller).
Fixing screws included.
EK-SM1-CHS
EK-SM1-CHT
Dimensions [mm]
60
67
2,8

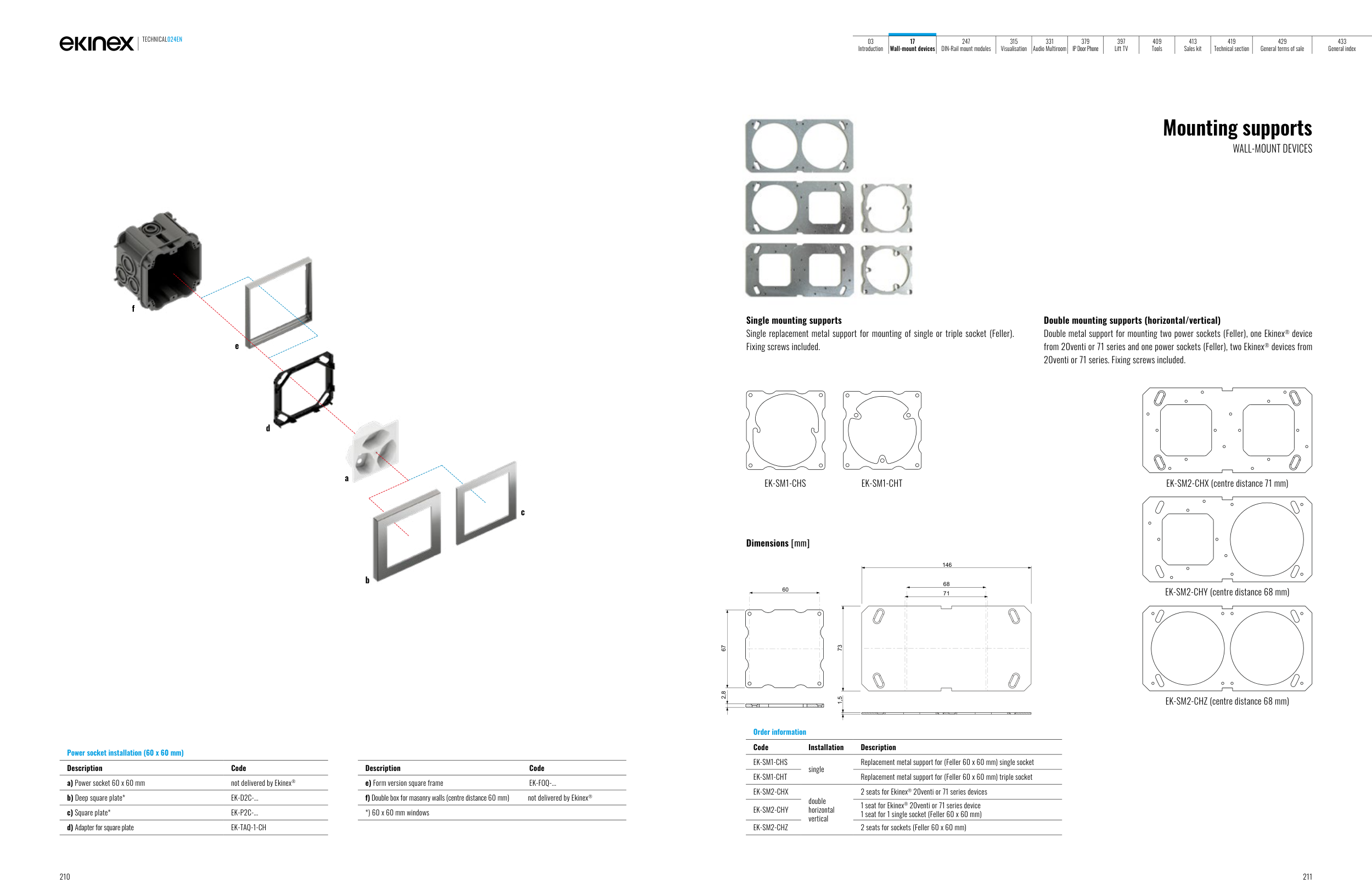

Mounting supports
WALL-MOUNT DEVICES
68
146
73
1,5
71
EK-SM2-CHX (centre distance 71 mm)
EK-SM2-CHY (centre distance 68 mm)
EK-SM2-CHZ (centre distance 68 mm)
c
b
a
e
d
f
Power socket installation (60 x 60 mm)
Description
Code
a) Power socket 60 x 60 mm
not delivered by Ekinex®
b) Deep square plate*
EK-D2C-...
c) Square plate*
EK-P2C-...
d) Adapter for square plate
EK-TAQ-1-CH
Double mounting supports (horizontal/vertical)
Double metal support for mounting two power sockets (Feller), one Ekinex® device
from 20venti or 71 series and one power sockets (Feller), two Ekinex® devices from
20venti or 71 series. Fixing screws included.
Description
Code
e) Form version square frame
EK-FOQ-...
f) Double box for masonry walls (centre distance 60 mm)
not delivered by Ekinex®
*) 60 x 60 mm windows
