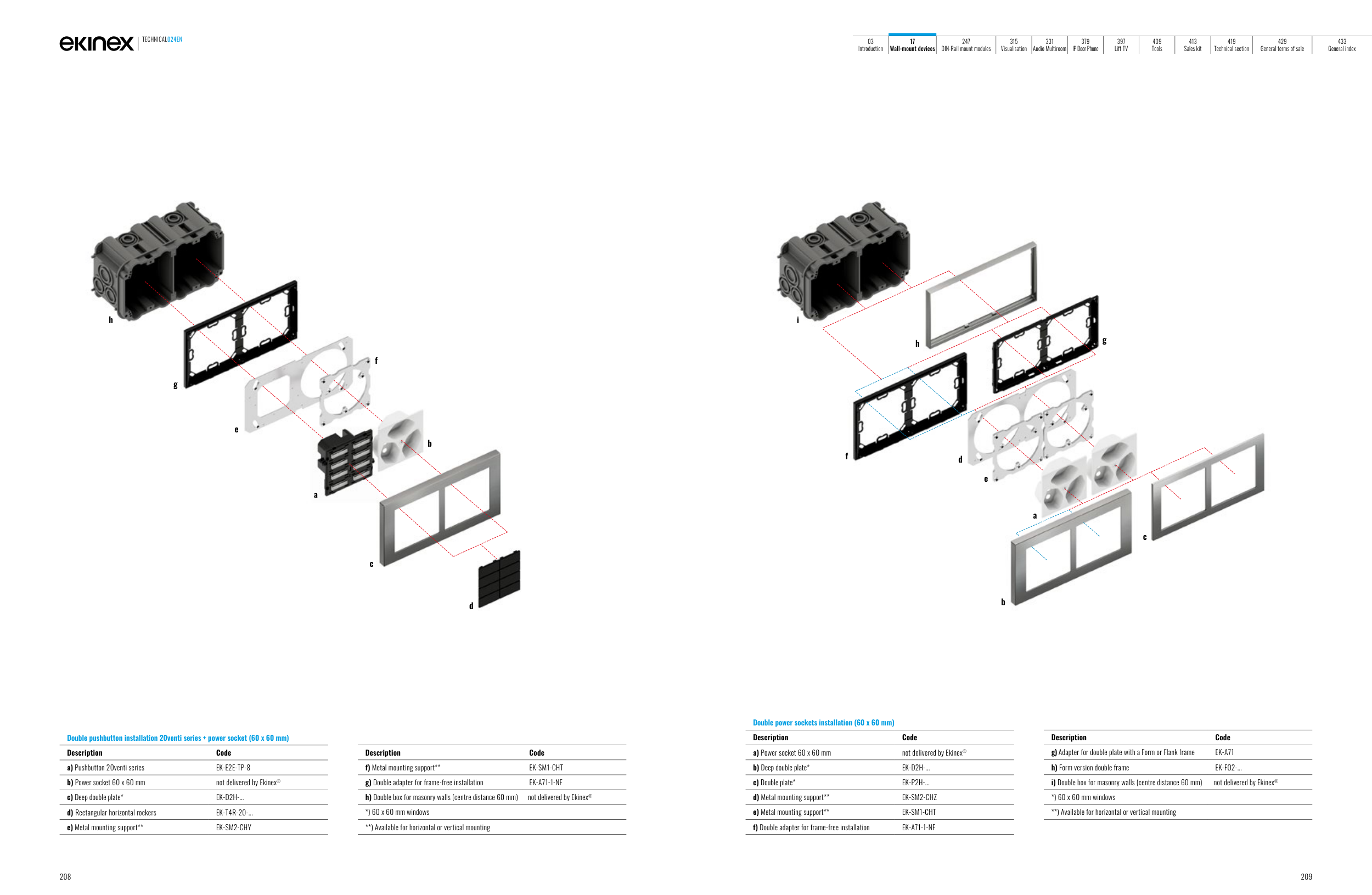

Double pushbutton installation 20venti series + power socket (60 x 60 mm)
Description
Code
a) Pushbutton 20venti series
EK-E2E-TP-8
b) Power socket 60 x 60 mm
not delivered by Ekinex®
c) Deep double plate*
EK-D2H-...
d) Rectangular horizontal rockers
EK-T4R-20-...
e) Metal mounting support**
EK-SM2-CHY
Description
Code
f) Metal mounting support**
EK-SM1-CHT
g) Double adapter for frame-free installation
EK-A71-1-NF
h) Double box for masonry walls (centre distance 60 mm)
not delivered by Ekinex®
*) 60 x 60 mm windows
**) Available for horizontal or vertical mounting
d
c
a
g
e
h
f
b
Double power sockets installation (60 x 60 mm)
Description
Code
a) Power socket 60 x 60 mm
not delivered by Ekinex®
b) Deep double plate*
EK-D2H-...
c) Double plate*
EK-P2H-...
d) Metal mounting support**
EK-SM2-CHZ
e) Metal mounting support**
EK-SM1-CHT
f) Double adapter for frame-free installation
EK-A71-1-NF
Description
Code
g) Adapter for double plate with a Form or Flank frame
EK-A71
h) Form version double frame
EK-FO2-...
i) Double box for masonry walls (centre distance 60 mm)
not delivered by Ekinex®
*) 60 x 60 mm windows
**) Available for horizontal or vertical mounting
c
b
a
e
d
g
f
h
i
