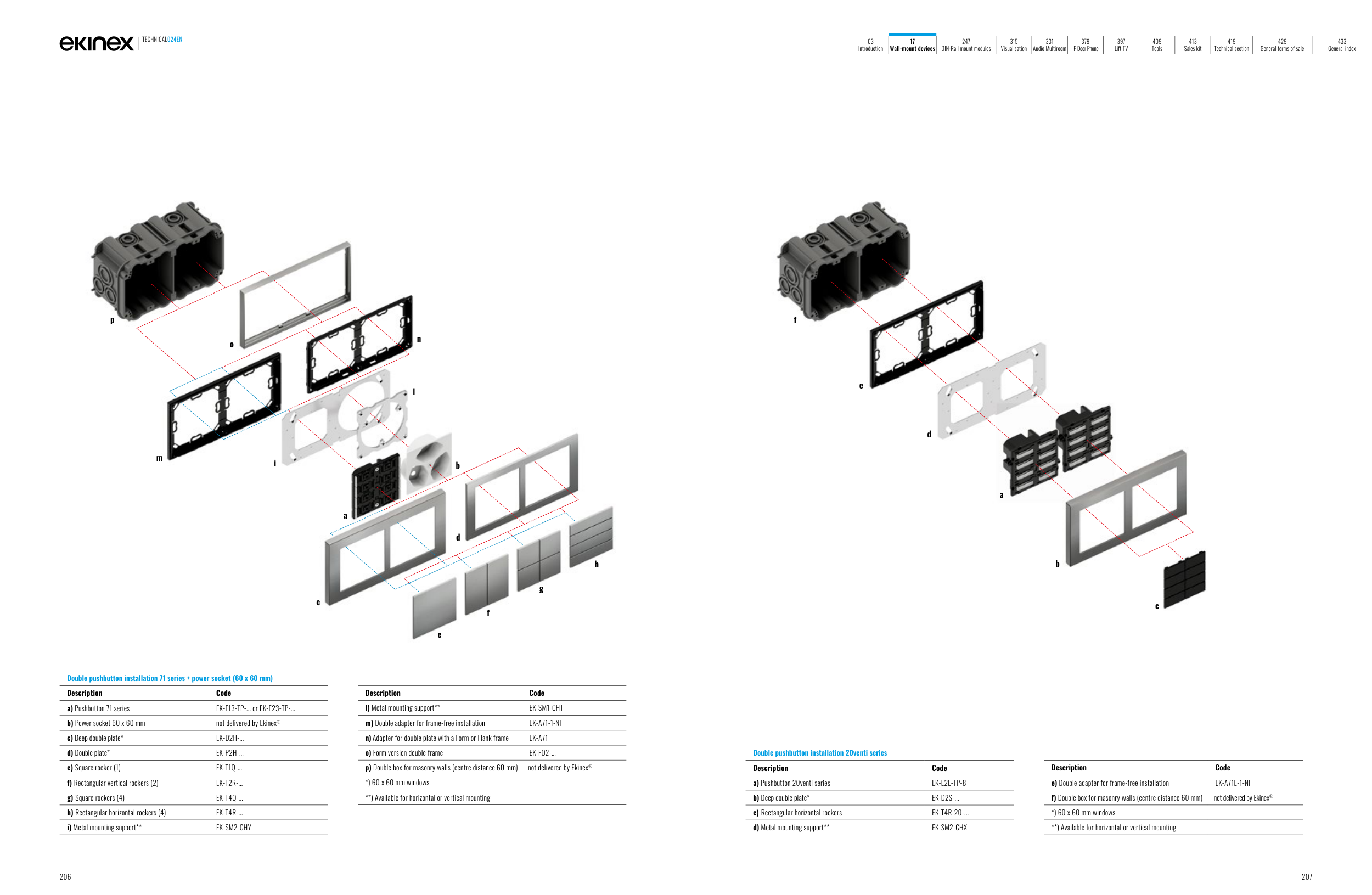

Double pushbutton installation 20venti series
Description
Code
a) Pushbutton 20venti series
EK-E2E-TP-8
b) Deep double plate*
EK-D2S-...
c) Rectangular horizontal rockers
EK-T4R-20-...
d) Metal mounting support**
EK-SM2-CHX
Description
Code
e) Double adapter for frame-free installation
EK-A71E-1-NF
f) Double box for masonry walls (centre distance 60 mm)
not delivered by Ekinex®
*) 60 x 60 mm windows
**) Available for horizontal or vertical mounting
c
b
a
e
d
f
Double pushbutton installation 71 series + power socket (60 x 60 mm)
Description
Code
a) Pushbutton 71 series
EK-E13-TP-... or EK-E23-TP-...
b) Power socket 60 x 60 mm
not delivered by Ekinex®
c) Deep double plate*
EK-D2H-...
d) Double plate*
EK-P2H-...
e) Square rocker (1)
EK-T1Q-...
f) Rectangular vertical rockers (2)
EK-T2R-...
g) Square rockers (4)
EK-T4Q-...
h) Rectangular horizontal rockers (4)
EK-T4R-...
i) Metal mounting support**
EK-SM2-CHY
Description
Code
l) Metal mounting support**
EK-SM1-CHT
m) Double adapter for frame-free installation
EK-A71-1-NF
n) Adapter for double plate with a Form or Flank frame
EK-A71
o) Form version double frame
EK-FO2-...
p) Double box for masonry walls (centre distance 60 mm)
not delivered by Ekinex®
*) 60 x 60 mm windows
**) Available for horizontal or vertical mounting
d
c
a
f
e
i
m
h
g
n
o
p
b
l
