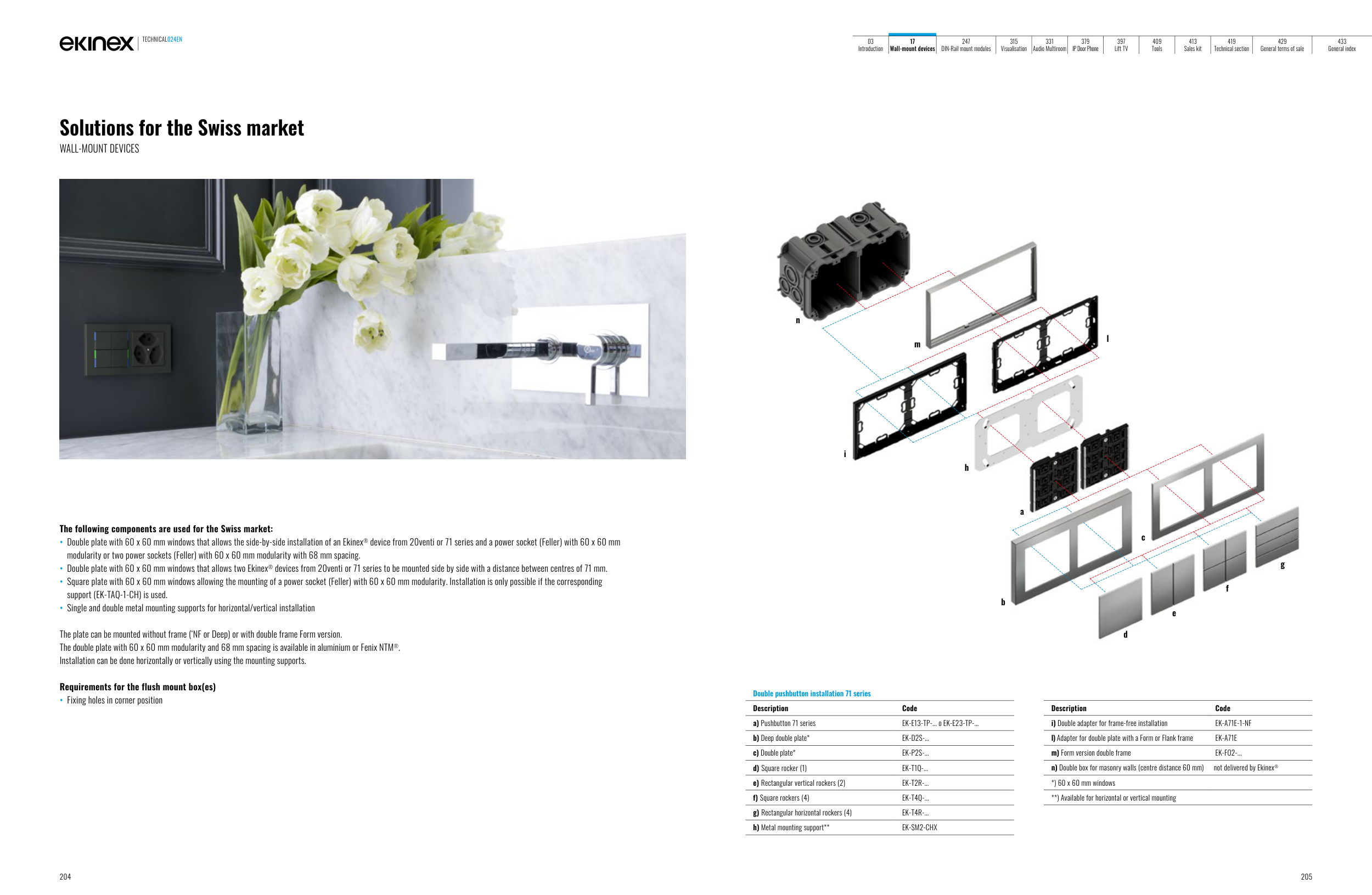

Solutions for the Swiss market
WALL-MOUNT DEVICES
The following components are used for the Swiss market:
• Double plate with 60 x 60 mm windows that allows the side-by-side installation of an Ekinex® device from 20venti or 71 series and a power socket (Feller) with 60 x 60 mm
modularity or two power sockets (Feller) with 60 x 60 mm modularity with 68 mm spacing.
• Double plate with 60 x 60 mm windows that allows two Ekinex® devices from 20venti or 71 series to be mounted side by side with a distance between centres of 71 mm.
• Square plate with 60 x 60 mm windows allowing the mounting of a power socket (Feller) with 60 x 60 mm modularity. Installation is only possible if the corresponding
support (EK-TAQ-1-CH) is used.
• Single and double metal mounting supports for horizontal/vertical installation
The plate can be mounted without frame (‘NF or Deep) or with double frame Form version.
The double plate with 60 x 60 mm modularity and 68 mm spacing is available in aluminium or Fenix NTM®.
Installation can be done horizontally or vertically using the mounting supports.
Requirements for the flush mount box(es)
• Fixing holes in corner position
Double pushbutton installation 71 series
Description
Code
a) Pushbutton 71 series
EK-E13-TP-... o EK-E23-TP-...
b) Deep double plate*
EK-D2S-...
c) Double plate*
EK-P2S-...
d) Square rocker (1)
EK-T1Q-...
e) Rectangular vertical rockers (2)
EK-T2R-...
f) Square rockers (4)
EK-T4Q-...
g) Rectangular horizontal rockers (4)
EK-T4R-...
h) Metal mounting support**
EK-SM2-CHX
Description
Code
i) Double adapter for frame-free installation
EK-A71E-1-NF
l) Adapter for double plate with a Form or Flank frame
EK-A71E
m) Form version double frame
EK-FO2-...
n) Double box for masonry walls (centre distance 60 mm)
not delivered by Ekinex®
*) 60 x 60 mm windows
**) Available for horizontal or vertical mounting
c
b
a
e
d
h
i
g
f
l
m
n
