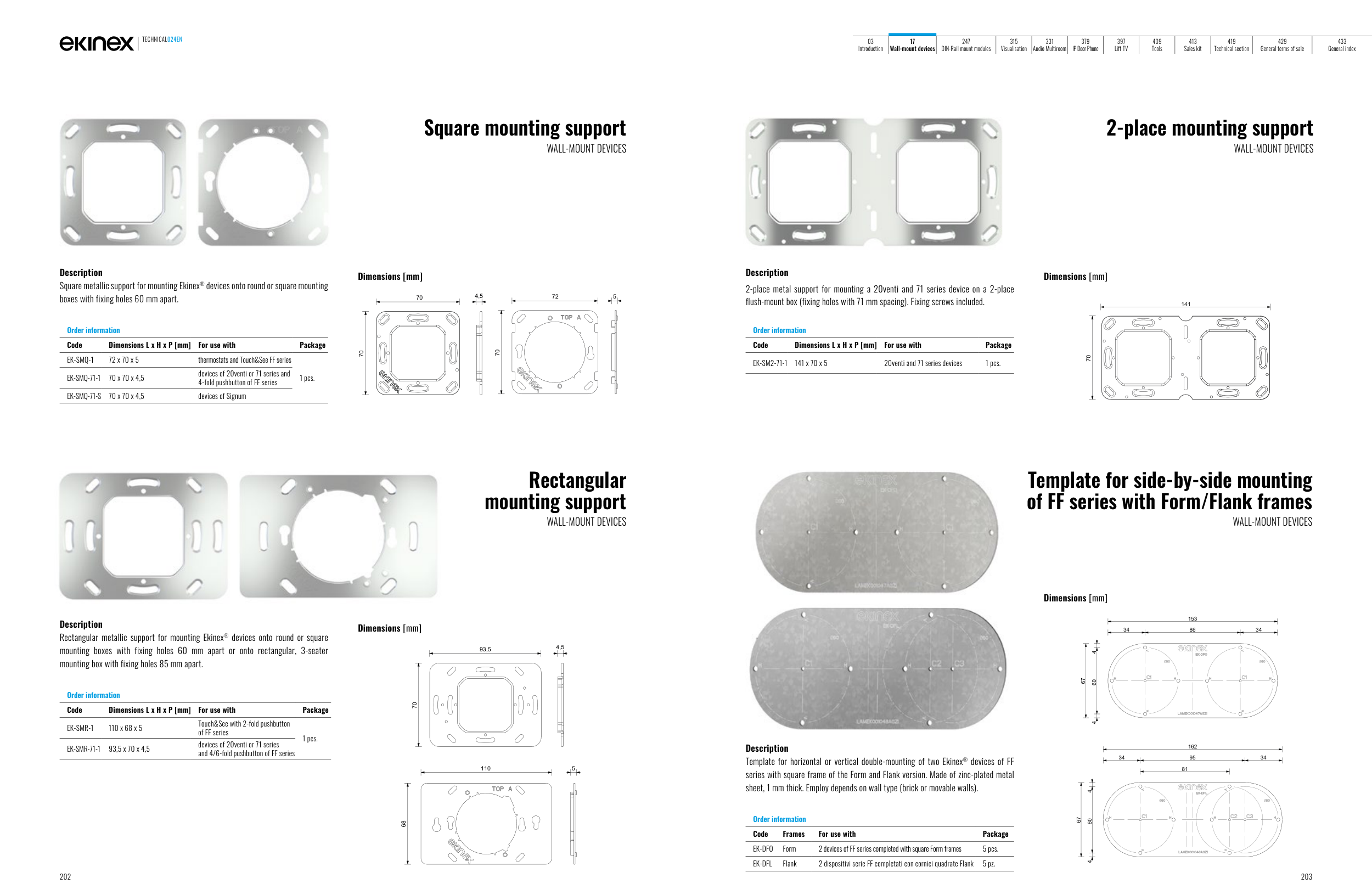

Square mounting support
WALL-MOUNT DEVICES
Description
Square metallic support for mounting Ekinex® devices onto round or square mounting
boxes with fixing holes 60 mm apart.
Order information
Code
Dimensions L x H x P [mm]
For use with
Package
EK-SMQ-1
72 x 70 x 5
thermostats and Touch&See FF series
1 pcs.
EK-SMQ-71-1
70 x 70 x 4,5
devices of 20venti or 71 series and
4-fold pushbutton of FF series
EK-SMQ-71-S
70 x 70 x 4,5
devices of Signum
Rectangular
mounting support
WALL-MOUNT DEVICES
Description
Rectangular metallic support for mounting Ekinex® devices onto round or square
mounting boxes with fixing holes 60 mm apart or onto rectangular, 3-seater
mounting box with fixing holes 85 mm apart.
Order information
Code
Dimensions L x H x P [mm]
For use with
Package
EK-SMR-1
110 x 68 x 5
Touch&See with 2-fold pushbutton
of FF series
1 pcs.
EK-SMR-71-1
93,5 x 70 x 4,5
devices of 20venti or 71 series
and 4/6-fold pushbutton of FF series
Dimensions [mm]
70
70
4,5
72
70
5
Dimensions [mm]
93,5
70
4,5
68
110
5
2-place mounting support
WALL-MOUNT DEVICES
Dimensions [mm]
70
141
Description
2-place metal support for mounting a 20venti and 71 series device on a 2-place
flush-mount box (fixing holes with 71 mm spacing). Fixing screws included.
Order information
Code
Dimensions L x H x P [mm]
For use with
Package
EK-SM2-71-1
141 x 70 x 5
20venti and 71 series devices
1 pcs.
Template for side-by-side mounting
of FF series with Form/Flank frames
WALL-MOUNT DEVICES
Description
Template for horizontal or vertical double-mounting of two Ekinex® devices of FF
series with square frame of the Form and Flank version. Made of zinc-plated metal
sheet, 1 mm thick. Employ depends on wall type (brick or movable walls).
Order information
Code
Frames
For use with
Package
EK-DFO
Form
2 devices of FF series completed with square Form frames
5 pcs.
EK-DFL
Flank
2 dispositivi serie FF completati con cornici quadrate Flank
5 pz.
Dimensions [mm]
67
153
34
86
34
4
60
4
34
95
34
162
81
67
4
60
4
