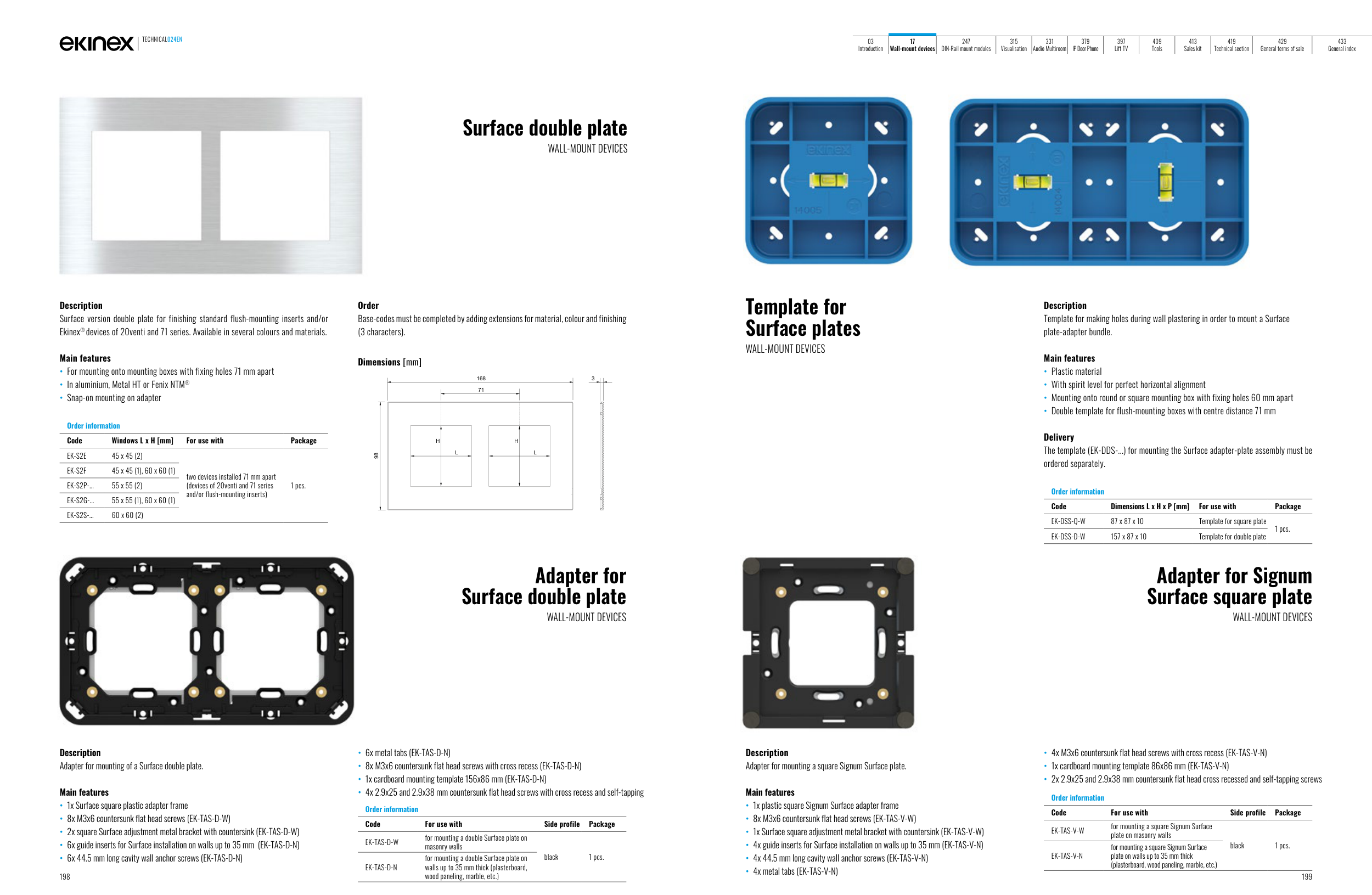

Description
Surface version double plate for finishing standard flush-mounting inserts and/or
Ekinex® devices of 20venti and 71 series. Available in several colours and materials.
Main features
• For mounting onto mounting boxes with fixing holes 71 mm apart
• In aluminium, Metal HT or Fenix NTM®
• Snap-on mounting on adapter
Order information
Code
Windows L x H [mm]
For use with
Package
EK-S2E
45 x 45 (2)
two devices installed 71 mm apart
(devices of 20venti and 71 series
and/or flush-mounting inserts)
1 pcs.
EK-S2F
45 x 45 (1), 60 x 60 (1)
EK-S2P-...
55 x 55 (2)
EK-S2G-...
55 x 55 (1), 60 x 60 (1)
EK-S2S-...
60 x 60 (2)
Order
Base-codes must be completed by adding extensions for material, colour and finishing
(3 characters).
Dimensions [mm]
H
L
3
71
168
98
H
L
Surface double plate
WALL-MOUNT DEVICES
Adapter for
Surface double plate
WALL-MOUNT DEVICES
Description
Template for making holes during wall plastering in order to mount a Surface
plate-adapter bundle.
Main features
• Plastic material
• With spirit level for perfect horizontal alignment
• Mounting onto round or square mounting box with fixing holes 60 mm apart
• Double template for flush-mounting boxes with centre distance 71 mm
Delivery
The template (EK-DDS-...) for mounting the Surface adapter-plate assembly must be
ordered separately.
Order information
Code
Dimensions L x H x P [mm]
For use with
Package
EK-DSS-Q-W
87 x 87 x 10
Template for square plate
1 pcs.
EK-DSS-D-W
157 x 87 x 10
Template for double plate
Template for
Surface plates
WALL-MOUNT DEVICES
Description
Adapter for mounting of a Surface double plate.
Main features
• 1x Surface square plastic adapter frame
• 8x M3x6 countersunk flat head screws (EK-TAS-D-W)
• 2x square Surface adjustment metal bracket with countersink (EK-TAS-D-W)
• 6x guide inserts for Surface installation on walls up to 35 mm (EK-TAS-D-N)
• 6x 44.5 mm long cavity wall anchor screws (EK-TAS-D-N)
Order information
Code
For use with
Side profile
Package
EK-TAS-D-W
for mounting a double Surface plate on
masonry walls
black
1 pcs.
EK-TAS-D-N
for mounting a double Surface plate on
walls up to 35 mm thick (plasterboard,
wood paneling, marble, etc.)
• 6x metal tabs (EK-TAS-D-N)
• 8x M3x6 countersunk flat head screws with cross recess (EK-TAS-D-N)
• 1x cardboard mounting template 156x86 mm (EK-TAS-D-N)
• 4x 2.9x25 and 2.9x38 mm countersunk flat head screws with cross recess and self-tapping
Description
Adapter for mounting a square Signum Surface plate.
Main features
• 1x plastic square Signum Surface adapter frame
• 8x M3x6 countersunk flat head screws (EK-TAS-V-W)
• 1x Surface square adjustment metal bracket with countersink (EK-TAS-V-W)
• 4x guide inserts for Surface installation on walls up to 35 mm (EK-TAS-V-N)
• 4x 44.5 mm long cavity wall anchor screws (EK-TAS-V-N)
• 4x metal tabs (EK-TAS-V-N)
Adapter for Signum
Surface square plate
WALL-MOUNT DEVICES
Order information
Code
For use with
Side profile
Package
EK-TAS-V-W
for mounting a square Signum Surface
plate on masonry walls
black
1 pcs.
EK-TAS-V-N
for mounting a square Signum Surface
plate on walls up to 35 mm thick
(plasterboard, wood paneling, marble, etc.)
• 4x M3x6 countersunk flat head screws with cross recess (EK-TAS-V-N)
• 1x cardboard mounting template 86x86 mm (EK-TAS-V-N)
• 2x 2.9x25 and 2.9x38 mm countersunk flat head cross recessed and self-tapping screws
