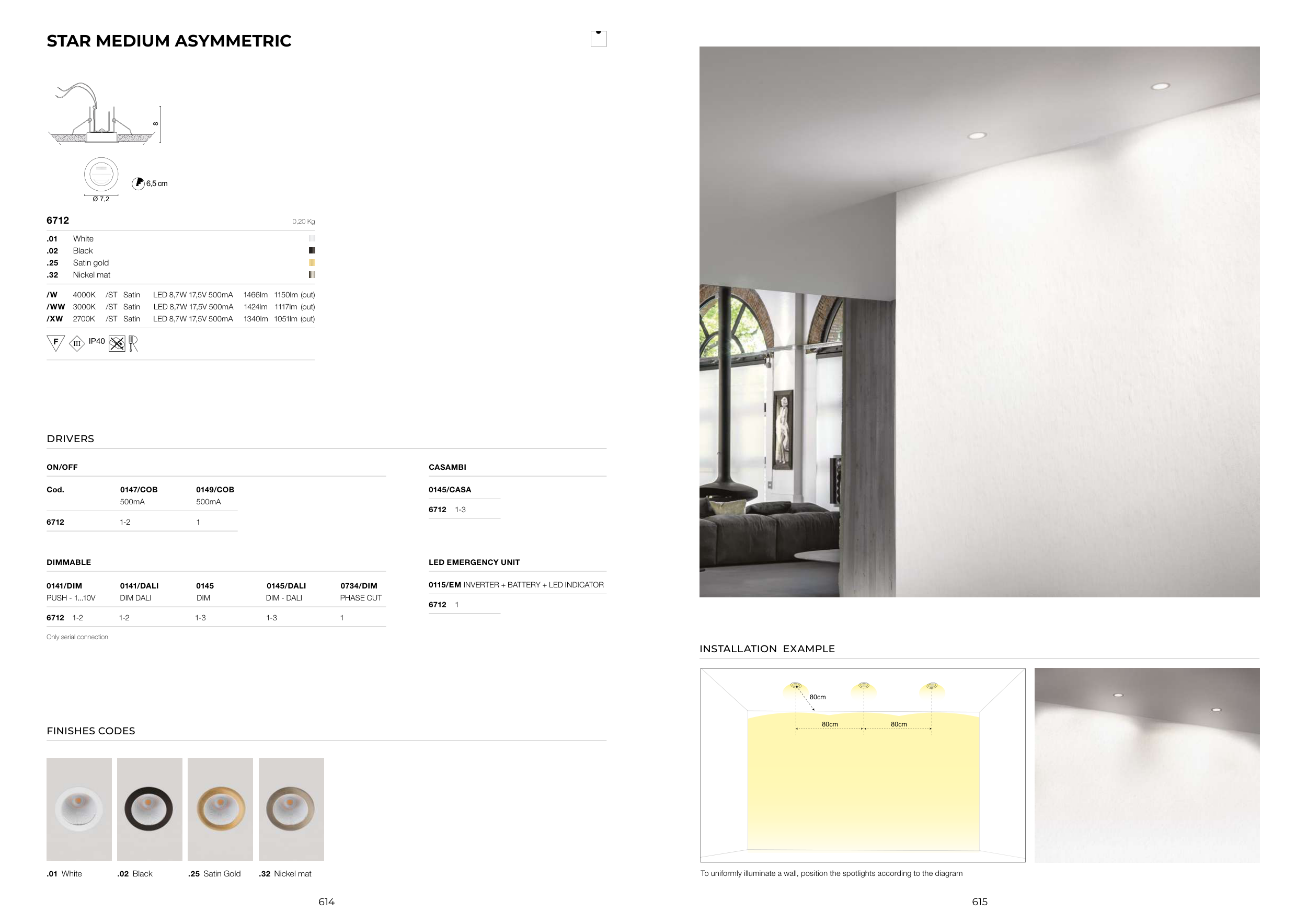

STAR MEDIUM ASYMMETRIC
6712
0,20 Kg
.01 White
.02
Black
.25 Satin gold
.32 Nickel mat
Only serial connection
/W 4000K /ST Satin LED 8,7W 17,5V 500mA 1466lm 1150lm (out)
/WW 3000K
/ST Satin LED 8,7W 17,5V 500mA 1424lm 1117lm (out)
/XW
2700K
/ST Satin LED 8,7W 17,5V 500mA 1340lm 1051lm (out)
Cod. 0147/COB 0149/COB
500mA 500mA
0145/CASA
0115/EM INVERTER + BATTERY + LED INDICATOR
ON/OFF
DIMMABLE
CASAMBI
LED EMERGENCY UNIT
6712 1-3
6712 1
DRIVERS
6712
1-2 1
0141/DIM
0141/DALI 0145 0145/DALI 0734/DIM
PUSH - 1...10V DIM DALI DIM DIM - DALI PHASE CUT
6712 1-2 1-2 1-3 1-3 1
Ø 7,2
8
.01 White
.02 Black
.25 Satin Gold
.32 Nickel mat
FINISHES CODES
6,5 cm
80cm
80cm
80cm
To uniformly illuminate a wall, position the spotlights according to the diagram
INSTALLATION EXAMPLE
