FINISHED WALL= FW
STUDWORK= S
INTERNAL PASSAGE= IP
100
75 - with one plasterboard layer
54
125
75 - with two plasterboard layers
54
150
100 - with two plasterboard layers
54
Dimensions are given in mm.
FINISHED WALL= FW
STUDWORK= S
INTERNAL PASSAGE= IP
100
75 - with one plasterboard layer
54
125
75 - with two plasterboard layers
54
150
100 - with two plasterboard layers
54
Dimensions are given in mm.
SYSTEMS FOR SINGLE DOOR - Measures related to Italian standards, other dimensions available
PASSAGE SIZE
OVERALL DIMENSIONS
DOOR PANEL*
A x H
B
C x H1
DW
DH
600 x 2000/2100
750
1393 x 2060/2160
615 ÷ 635
1992/2092
700 x 2000/2100
850
1593 x 2060/2160
715 ÷ 735
1992/2092
800 x 2000/2100
950
1793 x 2060/2160
815 ÷ 835
1992/2092
900 x 2000/2100
1050
1993 x 2060/2160
915 ÷ 935
1992/2092
1000 x 2000/2100
1150
2193 x 2060/2160
1015 ÷ 1035
1992/2092
SYSTEMS FOR DOUBLE DOOR - Measures related to Italian standards, other dimensions available
PASSAGE SIZE
OVERALL DIMENSIONS
DOOR PANEL*
A x H
B
C x H1
DW
DH
1200 x 2000/2100
750
2686 x 2060/2160
615 ÷ 635
1992/2092
1400 x 2000/2100
850
3086 x 2060/2160
715 ÷ 735
1992/2092
1600 x 2000/2100
950
3486 x 2060/2160
815 ÷ 835
1992/2092
1800 x 2000/2100
1050
3886 x 2060/2160
915 ÷ 935
1992/2092
2000 x 2000/2100
1150
4286 x 2060/2160
1015 ÷ 1035
1992/2092
NON STANDARD SIZES
NOTES
ACCESSORIES
Passage width
FW 100: 600÷1000 mm
FW 125: 600÷1300 mm
FW 150: 600÷2000 mm
Passage height
FW 100: 1000÷2100 mm
FW 125: 1000÷2700 mm
FW 150: 1000÷3000 mm
Half sizes need bespoke door panels
(e.g. A=650 mm).
The passage A is reduced by 7 mm.
For A>1000 mm and H>2150 mm only available wall thickness 125 and 150 mm.
Max door thickness 40 mm (including any glass holder for glazed door).
Max. door weight 100 kg (150 kg on request).
Install at finished floor level.
Listed measures refer to wooden door panels only.
Due to system's productive characteristics and for safety reasons, ECLISSE
recommends the door panel protrudes 80 mm.
If needed, the adjustable door stop allows to modify the real passage size.
In order to ensure that the door disappear completely, a milling is required.
The milling for the door guide must have the following dimensions: 7 x 15 mm.
ECLISSE
SYNTESIS® BASEBOARD
ECLISSE BIAS®
ECLISSE BIAS®DS
Anti-warp profile
ECLISSE PUSH&PULL S
NON STANDARD SIZES
NOTES
ACCESSORIES
Passage width
FW 100: 600+600÷1000+1000 mm
FW 125: 600+600÷1300+1300 mm
FW 150: 600+600÷2000+2000 mm
Passage height
FW 100: 1000÷2100 mm
FW 125: 1000÷2700 mm
FW 150: 1000÷3000 mm
Half sizes need bespoke door panels
(e.g. A=1300 mm).
The passage A is reduced by 14 mm.
For A>2000 mm and H>2150 mm only available wall thickness 125 and 150 mm.
Max door thickness 40 mm (including any glass holder for glazed door).
Max. door weight 100 kg (150 kg on request).
Install at finished floor level.
Listed measures refer to wooden door panels only.
Due to system's productive characteristics and for safety reasons, ECLISSE
recommends the door panel protrudes 80 mm.
If needed, the adjustable door stop allows to modify the real passage size.
In order to ensure that the door disappear completely, a milling is required.
The milling for the door guide must have the following dimensions: 7 x 15 mm.
ECLISSE
SYNTESIS® BASEBOARD
Double doors
co-ordination
for ECLISSE SYNTESIS®
ECLISSE BIAS®
ECLISSE BIAS®DS
Anti-warp profile
ECLISSE PUSH&PULL S
FINISHED
FLOOR LEVEL
�
C
A
B
50
FW
S
FW
S
IP
12,5
DW
C
A
B
50
H1
DH
H H1
DW
DH
C
A
B
B
FINISHED
FLOOR LEVEL
�
C
A
B
B
H1
FW
S
IP
12,5
DW
FW
S
DH
H H1
DW
DH
WARNING
Door panels for ECLISSE
SYNTESIS® FLUSH sliding pocket
door systems must be milled along
the upper and lower profiles, as
shown below (milling not required
on glass doors).
20
20
20
40
WARNING
Door panels for ECLISSE
SYNTESIS® FLUSH sliding pocket
door systems must be milled along
the upper and lower profiles, as
shown below (milling not required
on glass doors).
20
20
20
40
ECLISSE
— 12 —
ECLISSE
— 13 —
ECLISSE

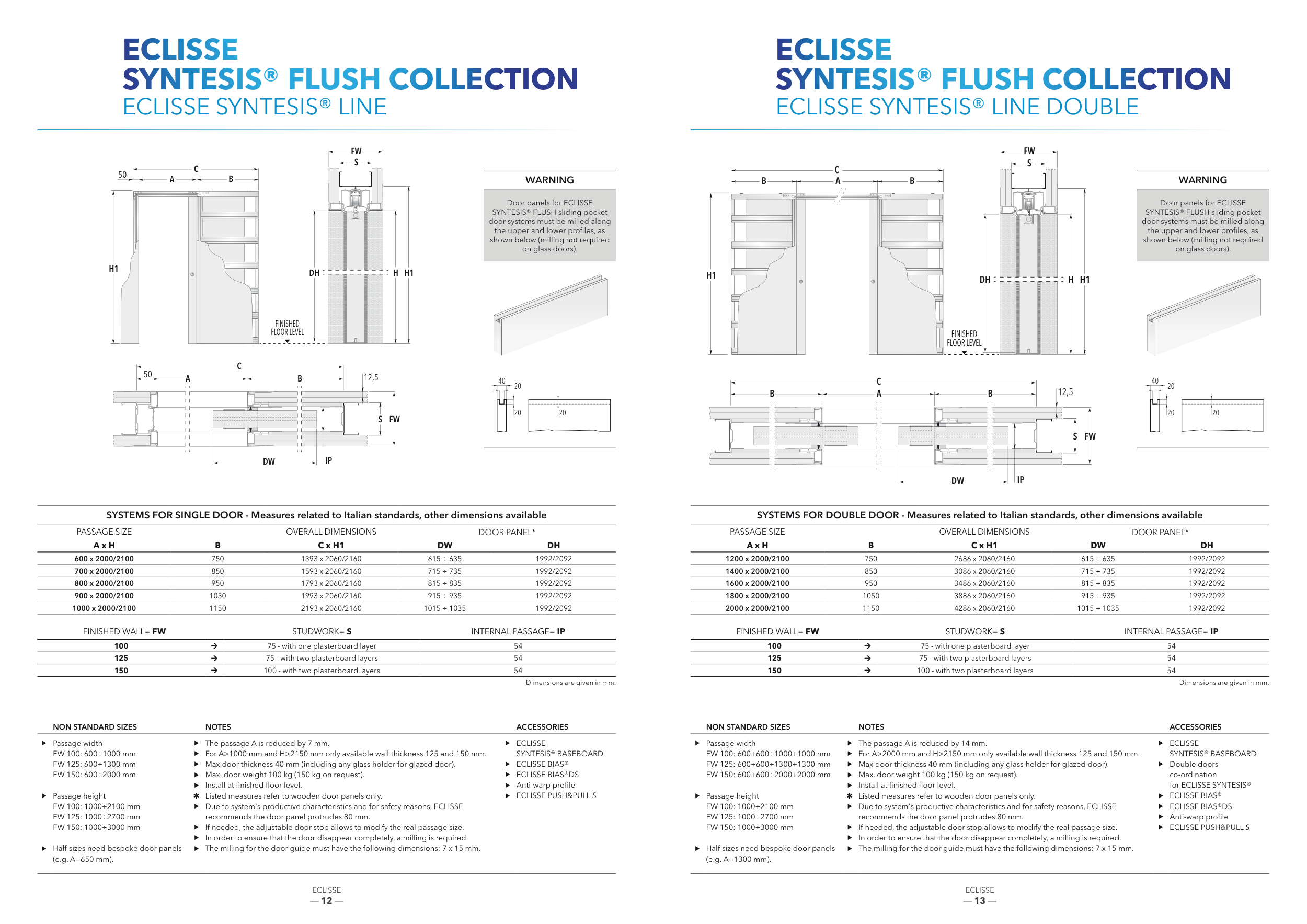

SYNTESIS® FLUSH COLLECTION
ECLISSE SYNTESIS® LINE
ECLISSE
SYNTESIS® FLUSH COLLECTION
ECLISSE SYNTESIS® LINE DOUBLE
