FINISHED WALL= FW
STUDWORK= S
INTERNAL PASSAGE= IP
100
75
54
125
100
79
150
100
103
Dimensions are given in mm.
FINISHED WALL= FW
STUDWORK= S
INTERNAL PASSAGE= IP
100
75
54
125
100
79
150
100
103
Dimensions are given in mm.
SYSTEMS FOR SINGLE DOOR - Measures related to Italian standards, other dimensions available
PASSAGE SIZE
OVERALL DIMENSIONS
DOOR PANEL*
L x H
C x H1
A
B
DW
DH
600 x 2000/2100
1297 x 2090/2190
650
617
615 ÷ 635
2010/2110
650 x 2000/2100
1447 x 2090/2190
700
717
665 ÷ 735
2010/2110
700 x 2000/2100
1497 x 2090/2190
750
717
715 ÷ 735
2010/2110
750 x 2000/2100
1647 x 2090/2190
800
817
765 ÷ 835
2010/2110
800 x 2000/2100
1697 x 2090/2190
850
817
815 ÷ 835
2010/2110
850 x 2000/2100
1847 x 2090/2190
900
917
865 ÷ 935
2010/2110
900 x 2000/2100
1897 x 2090/2190
950
917
915 ÷ 935
2010/2110
950 x 2000/2100
2047 x 2090/2190
1000
1017
965 ÷ 1035
2010/2110
1000 x 2000/2100
2097 x 2090/2190
1050
1017
1015 ÷ 1035
2010/2110
SYSTEMS FOR DOUBLE DOOR - Measures related to Italian standards, other dimensions available
PASSAGE SIZE
OVERALL DIMENSIONS
DOOR PANEL*
L x H
C x H1
A
B
DW
DH
1200 x 2000/2100
2494 x 2090/2190
1250
617
615 ÷ 635
2010/2110
1300 x 2000/2100
2794 x 2090/2190
1350
717
665 ÷ 735
2010/2110
1400 x 2000/2100
2894 x 2090/2190
1450
717
715 ÷ 735
2010/2110
1500 x 2000/2100
3194 x 2090/2190
1550
817
765 ÷ 835
2010/2110
1600 x 2000/2100
3294 x 2090/2190
1650
817
815 ÷ 835
2010/2110
1700 x 2000/2100
3594 x 2090/2190
1750
917
865 ÷ 935
2010/2110
1800 x 2000/2100
3694 x 2090/2190
1850
917
915 ÷ 935
2010/2110
1900 x 2000/2100
3994 x 2090/2190
1950
1017
965 ÷ 1035
2010/2110
2000 x 2000/2100
4094 x 2090/2190
2050
1017
1015 ÷ 1035
2010/2110
NON STANDARD SIZES
NOTES
ACCESSORIES
Passage width from 600 to 1200 mm.
Passage height from 500 to 2600 mm.
Possibility of measures up to 2000 mm (width) and 3000 mm
(height) with sizes and internal passages different from the
chart.
Frames with overall dimensions, passage sizes and internal
dims different from the ones indicated on the table, can be
realized on request.
Non standard sizes have screwed horizontal bars.
When using pocket with internal dims of 54 mm max. door
thickness 40 mm (including any glass holder for glazed door).
Max door weight 100 kg (150 kg on request).
ECLISSE counterframes can host any sliding door panel of
standard dimensions available on the market.
Install at finished floor level.
Listed measures refers to wooden door panels only.
ECLISSE BIAS®
ECLISSE BIAS®DS
ECLISSE PUSH&PULL C
Self-closing system
Motorisation
Anti-warp profile
NON STANDARD SIZES
NOTES
ACCESSORIES
Passage width from 600+600 to 1200+1200 mm.
Passage height from 500 to 2600 mm.
Possibility of measures up to 2000+2000 mm (width) and
3000 mm (height) with sizes and internal passages different
from the chart.
Frames with overall dimensions, passage sizes and internal
dims different from the ones indicated on the table, can be
realized on request.
Non standard sizes have screwed horizontal bars.
When using pocket with internal dims of 54 mm max. door
thickness 40 mm (including any glass holder for glazed door).
Max door weight 100 kg (150 kg on request).
ECLISSE counterframes can host any sliding door panel of
standard dimensions available on the market.
Install at finished floor level.
Listed measures refers to wooden door panels only.
Double door
co-ordination for
Classic
ECLISSE BIAS®
ECLISSE BIAS®DS
ECLISSE PUSH&PULL C
Motorisation
Anti-warp profile
C
A
B
5
25
C
B
A
5
25
H1
FINISHED
FLOOR LEVEL
�
L
25
25
12,5
FW
S
H H1
FW
S
IP
DW
DH
C
A
B
5
5
B
H1
DW
DH
L
25
25
FINISHED
FLOOR LEVEL
�
H H1
FW
S
12,5
FW
S
C
A
B
B
5
5
IP
ECLISSE
— 6 —
ECLISSE
— 7 —

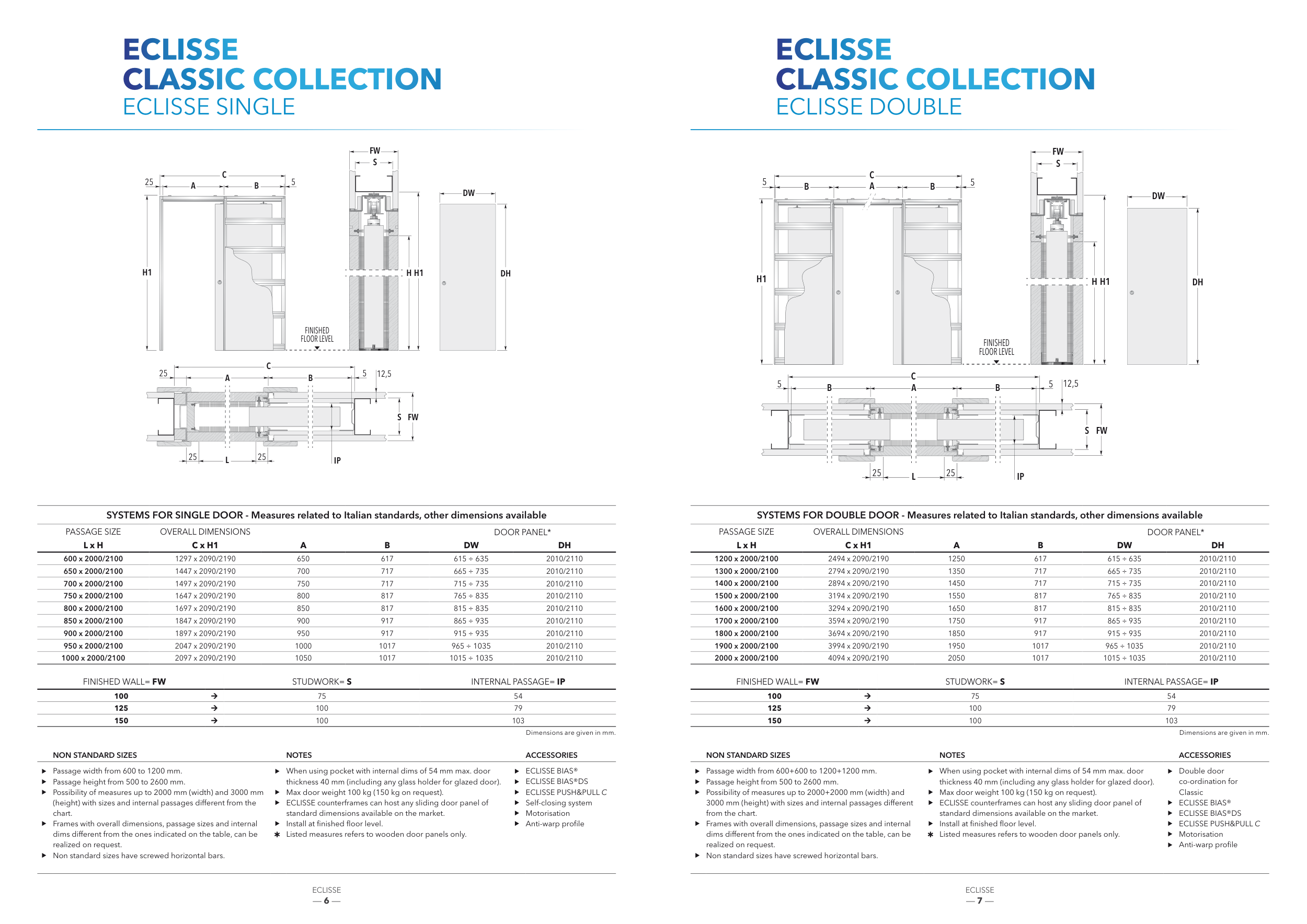

ECLISSE
CLASSIC COLLECTION
ECLISSE SINGLE
ECLISSE
CLASSIC COLLECTION
ECLISSE DOUBLE
