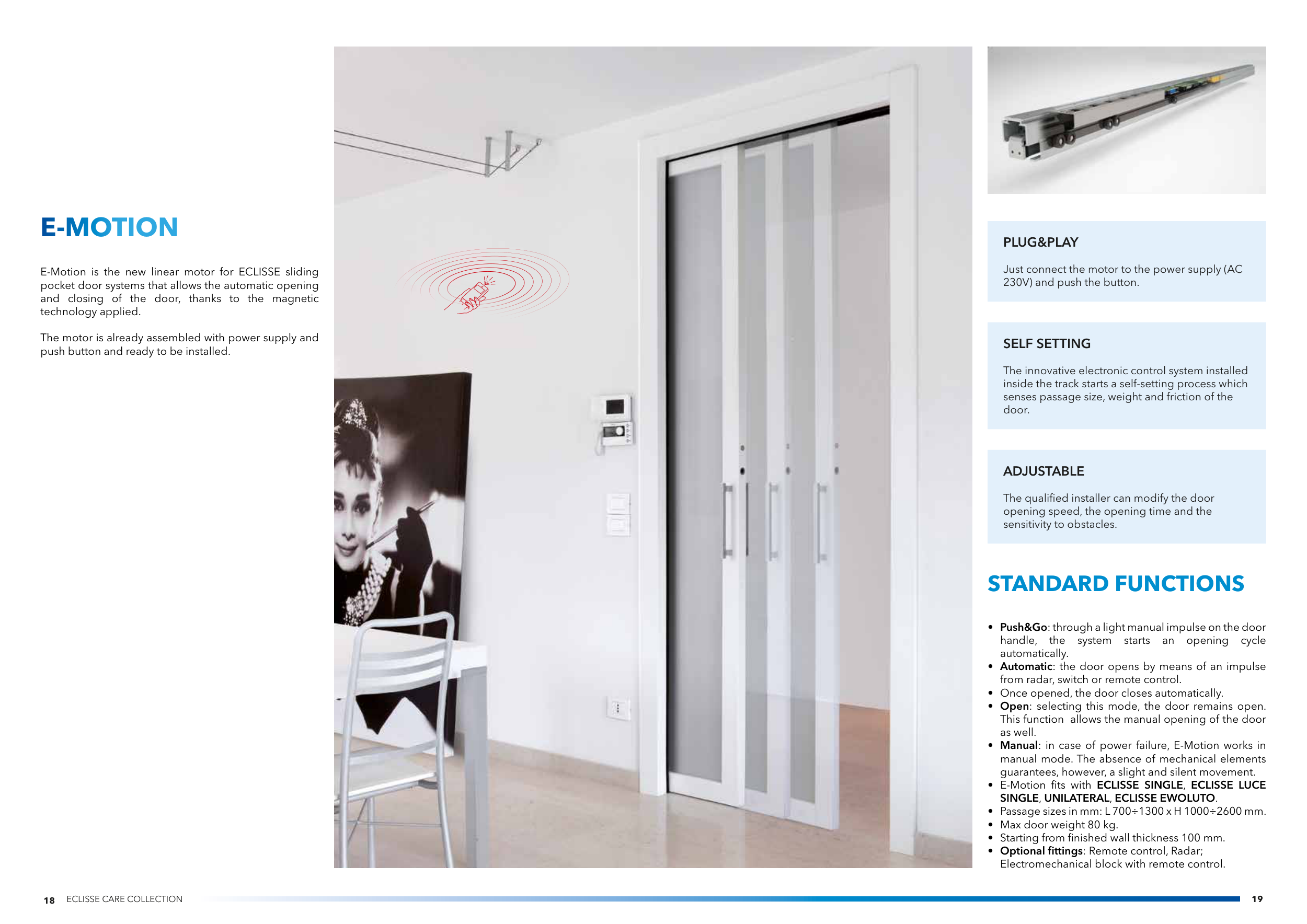

E-Motion is the new linear motor for ECLISSE sliding
pocket door systems that allows the automatic opening
and closing of the door, thanks to the magnetic
technology applied.
The motor is already assembled with power supply and
push button and ready to be installed.
E-MOTION
STANDARD FUNCTIONS
• Push&Go: through a light manual impulse on the door
handle,
the
system
starts
an
opening
cycle
automatically.
• Automatic: the door opens by means of an impulse
from radar, switch or remote control.
• Once opened, the door closes automatically.
• Open: selecting this mode, the door remains open.
This function allows the manual opening of the door
as well.
• Manual: in case of power failure, E-Motion works in
manual mode. The absence of mechanical elements
guarantees, however, a slight and silent movement.
• E-Motion fits with ECLISSE SINGLE, ECLISSE LUCE
SINGLE, UNILATERAL, ECLISSE EWOLUTO.
• Passage sizes in mm: L 700÷1300 x H 1000÷2600 mm.
• Max door weight 80 kg.
• Starting from finished wall thickness 100 mm.
• Optional fittings: Remote control, Radar;
Electromechanical block with remote control.
PLUG&PLAY
Just connect the motor to the power supply (AC
230V) and push the button.
SELF SETTING
The innovative electronic control system installed
inside the track starts a self-setting process which
senses passage size, weight and friction of the
door.
ADJUSTABLE
The qualified installer can modify the door
opening speed, the opening time and the
sensitivity to obstacles.
