Intervals for height every 50 mm, from 1650 mm to 2700 mm.
Supplied as standard with 3 hinges. Max. door panel weight with 3 hinges: 50 kg.
Available upon request with 4 hinges. Max. door panel weight with 4 hinges: 65 kg.
Available finishes: Primer-coated, Champagne, Bronze, Tobacco and White RAL 9010.
FINISHED WALL THICKNESS - 125
FINISHED WALL THICKNESS - 150
PASSAGE
OVERALL DIMENSIONS
OVERALL DIMENSIONS
DOOR PANEL
SIZE
C x H1
C x H1
Thk. 45 mm
L x H
PUSH DOOR
PULL DOOR
PUSH DOOR
PULL DOOR
DW
DH
600 x 2100/2400
766 x 2183/2483
790 x 2195/2495
810 x 2205/2505
832 x 2216/2516
616
2104/2404
700 x 2100/2400
866 x 2183/2483
890 x 2195/2495
910 x 2205/2505
932 x 2216/2516
716
2104/2404
800 x 2100/2400
966 x 2183/2483
990 x 2195/2495
1010 x 2205/2505
1032 x 2216/2516
816
2104/2404
900 x 2100/2400
1066 x 2183/2483
1090 x 2195/2495
1110 x 2205/2505
1132 x 2216/2516
916
2104/2404
1000 x 2100/2400
1166 x 2183/2483
1190 x 2195/2495
1210 x 2205/2505
1232 x 2216/2516
1016
2104/2404
SOLID WALL
STUD WALL
AVAILABLE THICKNESSES
FINISHED WALL = FW
BRICKS = Br
FINISHED WALL = FW
STUDWORK = S
--
--
100
50 - double plasterboard
75 - single plasterboard
108
80
--
--
--
125
100
125
75 - double plasterboard
100 - single plasterboard
150
120
150
100 - double plasterboard
dimensions are given in mm
FINISHED WALL THICKNESS - 100
FINISHED WALL THICKNESS - 108
PASSAGE
OVERALL DIMENSIONS
OVERALL DIMENSIONS
DOOR PANEL
SIZE
C x H1
C x H1
Thk. 45 mm
L x H
PUSH DOOR
PULL DOOR
PUSH DOOR
PULL DOOR
DW
DH
600 x 2100/2400
726 x 2163/2463
750 x 2175/2475
734 x 2167/2467
758 x 2179/2479
616
2104/2404
700 x 2100/2400
826 x 2163/2463
850 x 2175/2475
834 x 2167/2467
858 x 2179/2479
716
2104/2404
800 x 2100/2400
926 x 2163/2463
950 x 2175/2475
934 x 2167/2467
958 x 2179/2479
816
2104/2404
900 x 2100/2400
1026 x 2163/2463
1050 x 2175/2475
1034 x 2167/2467
1058 x 2179/2479
916
2104/2404
1000 x 2100/2400
1126 x 2163/2463
1150 x 2175/2475
1134 x 2167/2467
1158 x 2179/2479
1016
2104/2404
PUSH DOOR | PULL DOOR - FRAME WITH HEADER
PUSH DOOR | PULL DOOR - FRAME WITHOUT HEADER
In the version without header, intervals for height every 10 mm, from 1650 mm to 2700 mm.
Supplied as standard with 3 hinges. Max. door panel weight with 3 hinges: 50 kg.
Available upon request with 4 hinges. Max. door panel weight with 4 hinges: 65 kg.
Available finishes: Primer-coated, Champagne, Bronze, Tobacco and White RAL 9010.
FINISHED WALL THICKNESS - 125
FINISHED WALL THICKNESS - 150
PASSAGE
OVERALL DIMENSIONS
OVERALL DIMENSIONS
DOOR PANEL
SIZE
C x H1
C x H1
Thk. 45 mm
L x H
PUSH DOOR
PULL DOOR
PUSH DOOR
PULL DOOR
DW
DH
600 x 2700
766 x 2700
790 x 2700
810 x 2700
832 x 2700
616
2693
700 x 2700
866 x 2700
890 x 2700
910 x 2700
932 x 2700
716
2693
800 x 2700
966 x 2700
990 x 2700
1010 x 2700
1032 x 2700
816
2693
900 x 2700
1066 x 2700
1090 x 2700
1110 x 2700
1132 x 2700
916
2693
1000 x 2700
1166 x 2700
1190 x 2700
1210 x 2700
1232 x 2700
1016
2693
SOLID WALL
STUD WALL
AVAILABLE THICKNESSES
FINISHED WALL = FW
BRICKS = Br
FINISHED WALL = FW
STUDWORK = S
--
--
100
50 - double plasterboard
75 - single plasterboard
108
80
--
--
--
125
100
125
75 - double plasterboard
100 - single plasterboard
150
120
150
100 - double plasterboard
dimensions are given in mm
FINISHED WALL THICKNESS - 100
FINISHED WALL THICKNESS - 108
PASSAGE
OVERALL DIMENSIONS
OVERALL DIMENSIONS
DOOR PANEL
SIZE
C x H1
C x H1
Thk. 45 mm
L x H
PUSH DOOR
PULL DOOR
PUSH DOOR
PULL DOOR
DW
DH
600 x 2700
726 x 2700
750 x 2700
734 x 2700
758 x 2700
616
2693
700 x 2700
826 x 2700
850 x 2700
834 x 2700
858 x 2700
716
2693
800 x 2700
926 x 2700
950 x 2700
934 x 2700
958 x 2700
816
2693
900 x 2700
1026 x 2700
1050 x 2700
1034 x 2700
1058 x 2700
916
2693
1000 x 2700
1126 x 2700
1150 x 2700
1134 x 2700
1158 x 2700
1016
2693
ECLISSE
— 30 —
ECLISSE
— 31 —

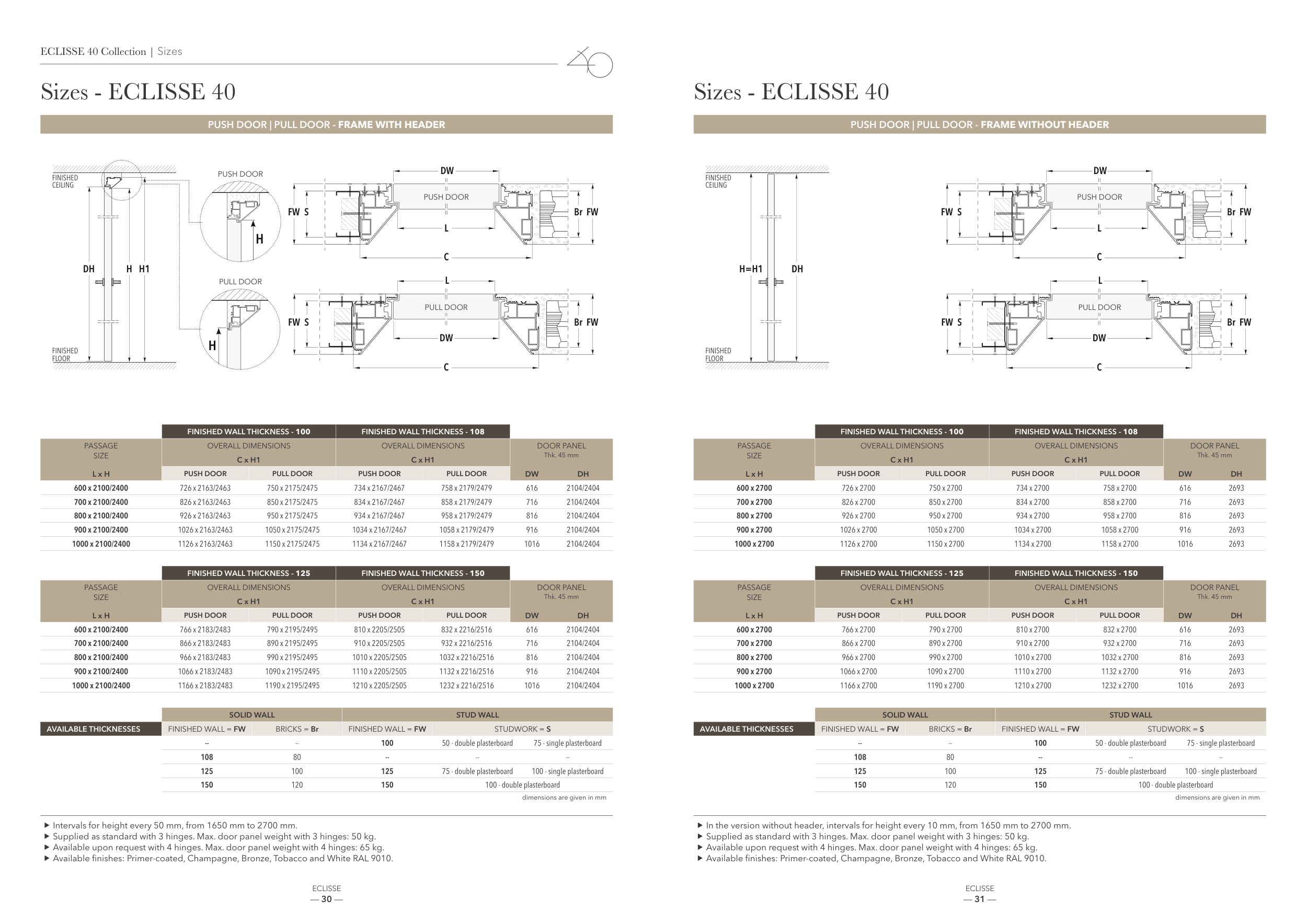

Sizes - ECLISSE 40
H
H
PUSH DOOR
PULL DOOR
PUSH DOOR
PULL DOOR
FINISHED
CEILING
FINISHED
FLOOR
PUSH DOOR
PULL DOOR
FINISHED
CEILING
FINISHED
FLOOR
Sizes - ECLISSE 40
ECLISSE 40 Collection | Sizes
