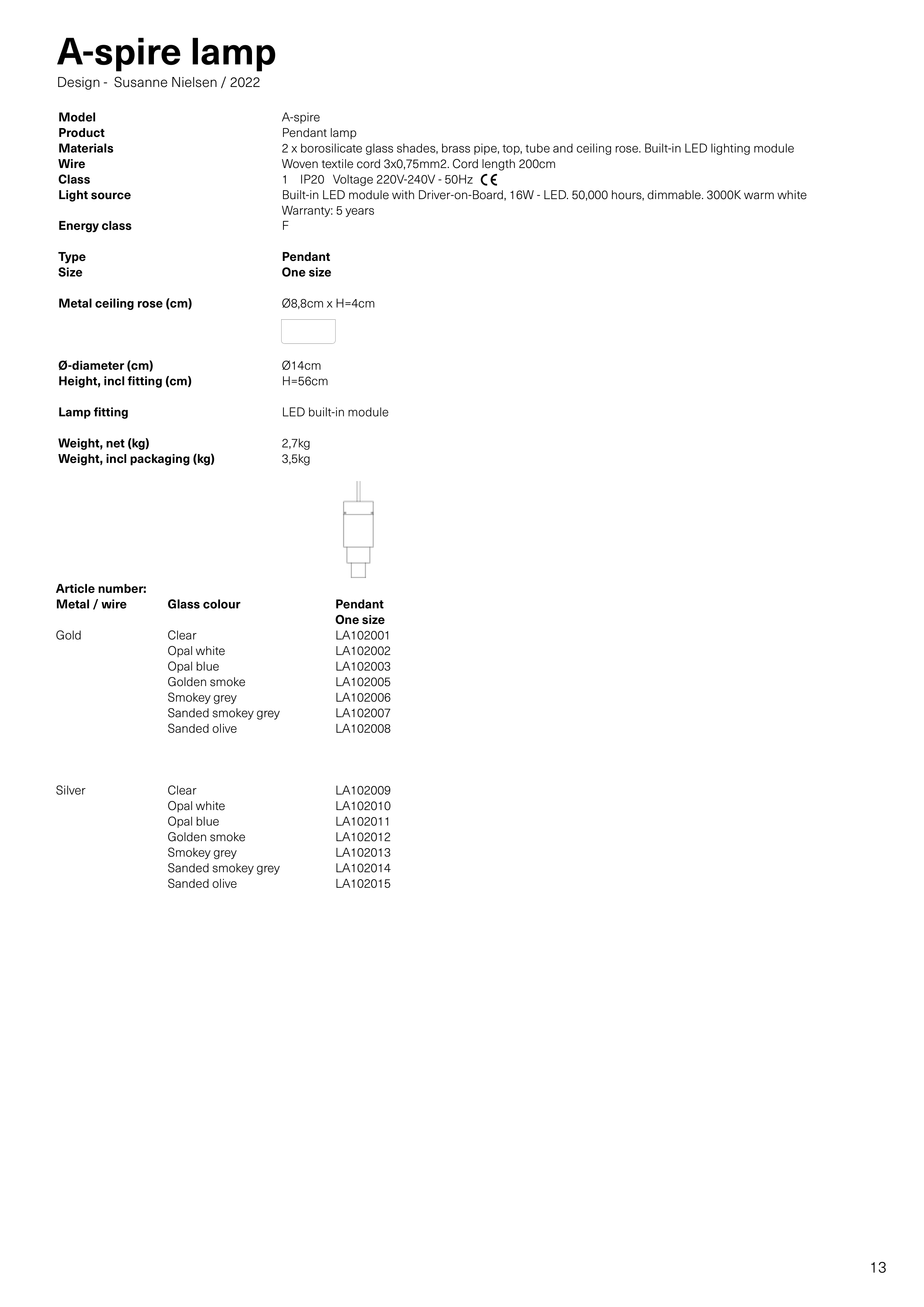

A-spire lamp
A-spire lamp
Design - Susanne Nielsen / 2022
Design - Susanne Nielsen / 2022
Article number:
Article number:
Metal / wire
Glass colour
Pendant
Metal / wire
Glass colour
Pendant
One size
One size
Gold
Clear
LA102001
Gold
Clear
LA102001
Opal white
LA102002
Opal white
LA102002
Opal blue
LA102003
Opal blue
LA102003
Golden smoke
LA102005
Golden smoke
LA102005
Smokey grey
LA102006
Smokey grey
LA102006
Sanded smokey grey
LA102007
Sanded smokey grey
LA102007
Sanded olive
LA102008
Sanded olive
LA102008
Silver
Silver
Clear
LA102009
Clear
LA102009
Opal white
LA102010
Opal white
LA102010
Opal blue
LA102011
Opal blue
LA102011
Golden smoke
LA102012
Golden smoke
LA102012
Smokey grey
LA102013
Smokey grey
LA102013
Sanded smokey grey
LA102014
Sanded smokey grey
LA102014
Sanded olive
LA102015
Sanded olive
LA102015
Model
Model
A-spire
A-spire
Product
Product
Pendant lamp
Pendant lamp
Materials
Materials
2 x borosilicate glass shades, brass pipe, top, tube and ceiling rose. Built-in LED lighting module
2 x borosilicate glass shades, brass pipe, top, tube and ceiling rose. Built-in LED lighting module
Wire
Wire
Woven textile cord 3x0,75mm2. Cord length 200cm
Woven textile cord 3x0,75mm2. Cord length 200cm
Class
Class
1 IP20 Voltage 220V-240V - 50Hz
1 IP20 Voltage 220V-240V - 50Hz
Light source
Light source
Built-in LED module with Driver-on-Board, 16W - LED. 50,000 hours, dimmable. 3000K warm white
Built-in LED module with Driver-on-Board, 16W - LED. 50,000 hours, dimmable. 3000K warm white
Warranty: 5 years
Warranty: 5 years
Energy class
Energy class
F
Type
Pendant
Type
Pendant
Size
One size
Size
One size
Metal ceiling rose (cm)
Metal ceiling rose (cm)
Ø8,8cm x H=4cm
Ø8,8cm x H=4cm
Ø-diameter (cm)
Ø-diameter (cm)
Ø14cm
Ø14cm
Height, incl fitting (cm)
Height, incl fitting (cm)
H=56cm
H=56cm
Lamp fitting
Lamp fitting
LED built-in module
LED built-in module
Weight, net (kg)
Weight, net (kg)
2,7kg
2,7kg
Weight, incl packaging (kg)
Weight, incl packaging (kg)
3,5kg
3,5kg
63
SYMBOLS
LIGHT SOURCES
TECHNICAL DEFINITIONS
CRI
Defined as the Colour Rendering Index, CRI defines the ability of a light source to reveal the colour of an object, ie a lamp.
Kelvin
Kelvin is the standard unit of the thermodynamic temperature. It measures the warmth of light.
Lumen
Lumen is a measure of the amount of light emitted by a lightsource.
CLEANING AND CARE
The lamp shade is hand-crafted using mouth-blown glass. Air bubbles and other imperfections may occur.
These are not considered defects, they are unique characteristics of the glass.
The glass should be handled and cleaned using only a mild non-abrasive soap, and must be dried using a clean and soft cloth.
TECHNICAL INFORMATION
Lamps must only be fitted by a qualified electrician.
The white connection box located inside the ceiling rose on some models and wall cups must be opened in order to fit and connect the lamp.
Ceiling hook or similar fitting attachment, NOT included.
PRODUCTS and SPECIFICATIONS
CE
CFL
Energy saving bulp
Class 1
LED
IP 20
I
Incandescent
13
