294
libero 5000
libero 4000
libero 3000
acqua 5000
pura 5000
multi-S 4000
natura 4000
gallery 3000
dukessa 3000
multi 3000 glass
multi 3000
vela 2000
stila 2000
prima 2000
A10
AQ10 2
AQB10 2
ST10 1
AG10 1
C10
CSG10
TS10 1, 2, 3, 4
TG10 1, 2
VM10 2, 3, 4
VB10 1, 2, 3, 4
DA4
KA1
1 Silk-screen print
upper glass edge:
These glasses both feature
a screen print on the upper
edge of around about 55
mm, which conceals the rai-
ls and the adhesion points.
2 Colour deviation
of the screen print:
Due to the nature of
satin screen printing
ink, the colour of this
glass may vary slight-
ly from the image.
3 Max width TS10, TQ10,
VM10, VQ10:
Please note that the silk-
screen print for these panels
can be produced at a max-
imum width of 1400 mm.
The centred silkscreen print
is 760 mm high in TS10
/ TQ10 and 1045 mm in
VM10 / VQ10.
4 Height differences:
Please note that height
alterations of up to 3mm
may occur in multi-pa-
nel models due to the
complexity of ceramic
silkscreen
printing
in
single-item production.

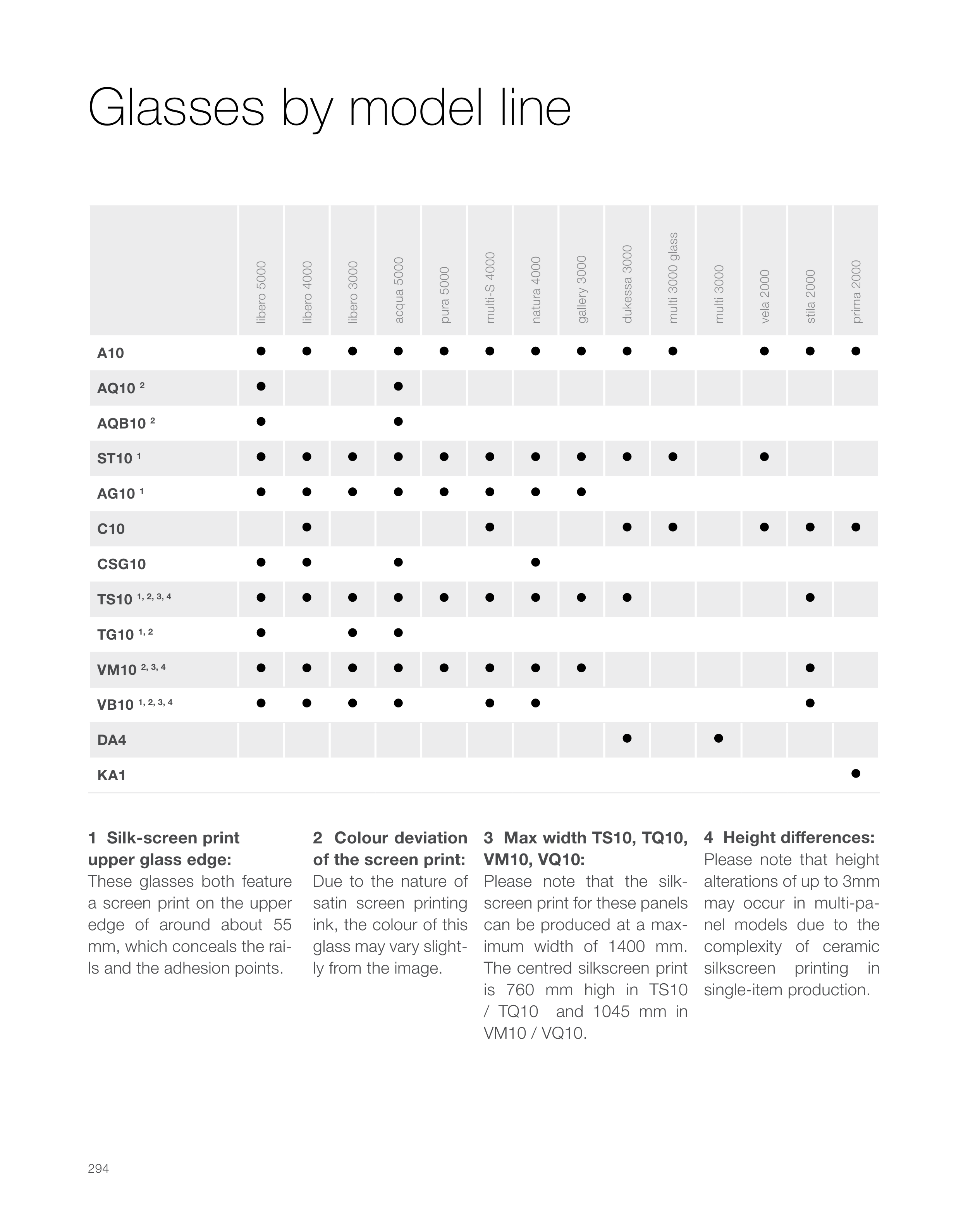

Glasses by model line
