97

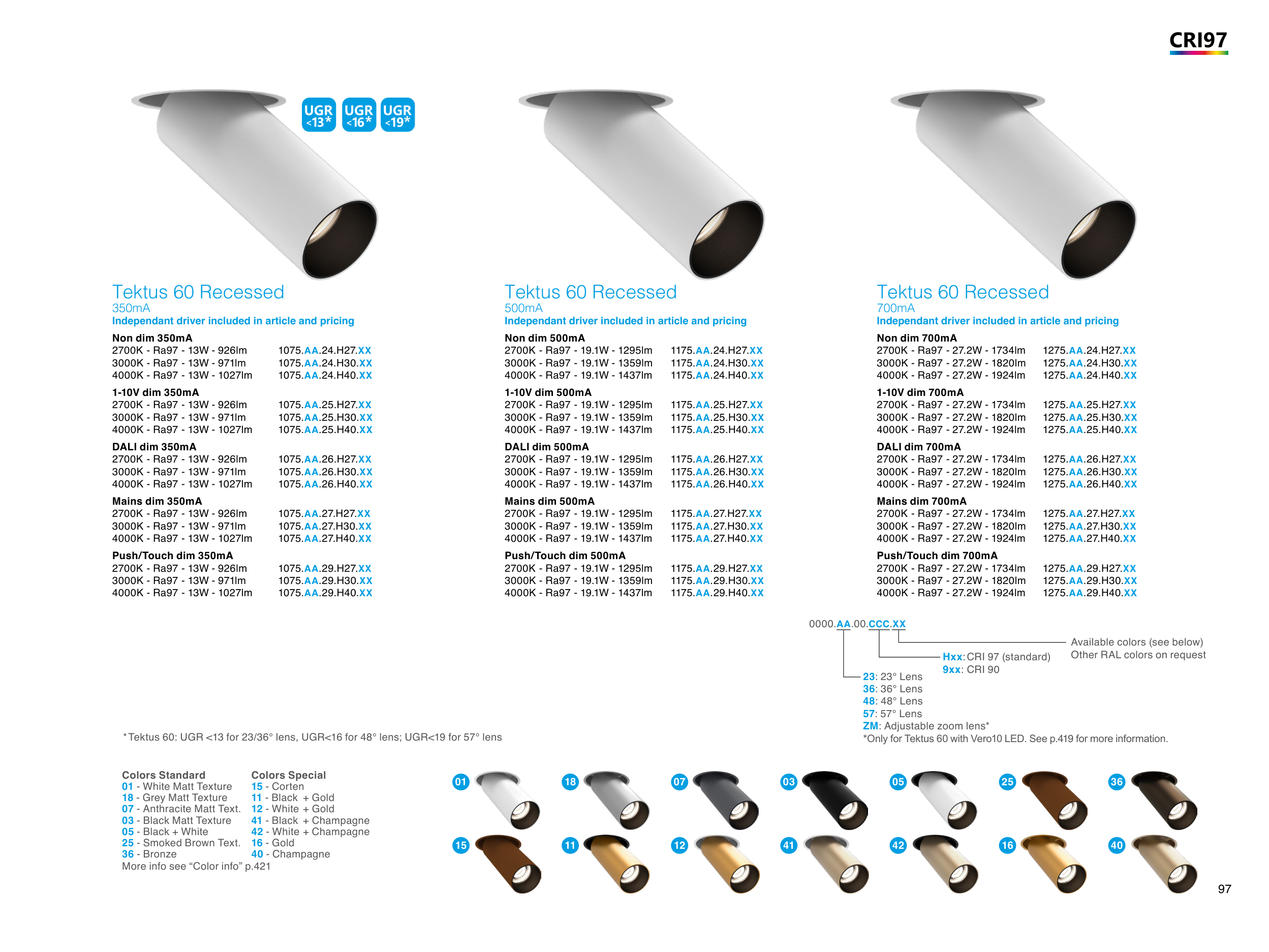

Tektus 60 Recessed
350mA
Independant driver included in article and pricing
Non dim 350mA
2700K - Ra97 - 13W - 926lm
1075.AA.24.H27.XX
3000K - Ra97 - 13W - 971lm
1075.AA.24.H30.XX
4000K - Ra97 - 13W - 1027lm
1075.AA.24.H40.XX
1-10V dim 350mA
2700K - Ra97 - 13W - 926lm
1075.AA.25.H27.XX
3000K - Ra97 - 13W - 971lm
1075.AA.25.H30.XX
4000K - Ra97 - 13W - 1027lm
1075.AA.25.H40.XX
DALI dim 350mA
2700K - Ra97 - 13W - 926lm
1075.AA.26.H27.XX
3000K - Ra97 - 13W - 971lm
1075.AA.26.H30.XX
4000K - Ra97 - 13W - 1027lm
1075.AA.26.H40.XX
Mains dim 350mA
2700K - Ra97 - 13W - 926lm
1075.AA.27.H27.XX
3000K - Ra97 - 13W - 971lm
1075.AA.27.H30.XX
4000K - Ra97 - 13W - 1027lm
1075.AA.27.H40.XX
Push/Touch dim 350mA
2700K - Ra97 - 13W - 926lm
1075.AA.29.H27.XX
3000K - Ra97 - 13W - 971lm
1075.AA.29.H30.XX
4000K - Ra97 - 13W - 1027lm
1075.AA.29.H40.XX
Tektus 60 Recessed
500mA
Independant driver included in article and pricing
Non dim 500mA
2700K - Ra97 - 19.1W - 1295lm
1175.AA.24.H27.XX
3000K - Ra97 - 19.1W - 1359lm
1175.AA.24.H30.XX
4000K - Ra97 - 19.1W - 1437lm
1175.AA.24.H40.XX
1-10V dim 500mA
2700K - Ra97 - 19.1W - 1295lm
1175.AA.25.H27.XX
3000K - Ra97 - 19.1W - 1359lm
1175.AA.25.H30.XX
4000K - Ra97 - 19.1W - 1437lm
1175.AA.25.H40.XX
DALI dim 500mA
2700K - Ra97 - 19.1W - 1295lm
1175.AA.26.H27.XX
3000K - Ra97 - 19.1W - 1359lm
1175.AA.26.H30.XX
4000K - Ra97 - 19.1W - 1437lm
1175.AA.26.H40.XX
Mains dim 500mA
2700K - Ra97 - 19.1W - 1295lm
1175.AA.27.H27.XX
3000K - Ra97 - 19.1W - 1359lm
1175.AA.27.H30.XX
4000K - Ra97 - 19.1W - 1437lm
1175.AA.27.H40.XX
Push/Touch dim 500mA
2700K - Ra97 - 19.1W - 1295lm
1175.AA.29.H27.XX
3000K - Ra97 - 19.1W - 1359lm
1175.AA.29.H30.XX
4000K - Ra97 - 19.1W - 1437lm
1175.AA.29.H40.XX
Tektus 60 Recessed
700mA
Independant driver included in article and pricing
Non dim 700mA
2700K - Ra97 - 27.2W - 1734lm
1275.AA.24.H27.XX
3000K - Ra97 - 27.2W - 1820lm
1275.AA.24.H30.XX
4000K - Ra97 - 27.2W - 1924lm
1275.AA.24.H40.XX
1-10V dim 700mA
2700K - Ra97 - 27.2W - 1734lm
1275.AA.25.H27.XX
3000K - Ra97 - 27.2W - 1820lm
1275.AA.25.H30.XX
4000K - Ra97 - 27.2W - 1924lm
1275.AA.25.H40.XX
DALI dim 700mA
2700K - Ra97 - 27.2W - 1734lm
1275.AA.26.H27.XX
3000K - Ra97 - 27.2W - 1820lm
1275.AA.26.H30.XX
4000K - Ra97 - 27.2W - 1924lm
1275.AA.26.H40.XX
Mains dim 700mA
2700K - Ra97 - 27.2W - 1734lm
1275.AA.27.H27.XX
3000K - Ra97 - 27.2W - 1820lm
1275.AA.27.H30.XX
4000K - Ra97 - 27.2W - 1924lm
1275.AA.27.H40.XX
Push/Touch dim 700mA
2700K - Ra97 - 27.2W - 1734lm
1275.AA.29.H27.XX
3000K - Ra97 - 27.2W - 1820lm
1275.AA.29.H30.XX
4000K - Ra97 - 27.2W - 1924lm
1275.AA.29.H40.XX
01
15
18
11
07
12
03
41
05
42
25
16
36
40
More info see “Color info” p.421
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
05 - Black + White
25 - Smoked Brown Text.
36 - Bronze
Colors Special
15 - Corten
11 - Black + Gold
12 - White + Gold
41 - Black + Champagne
42 - White + Champagne
16 - Gold
40 - Champagne
* Tektus 60: UGR <13 for 23/36° lens, UGR<16 for 48° lens; UGR<19 for 57° lens
0000.AA.00.CCC.XX
Available colors (see below)
Other RAL colors on request
Hxx: CRI 97 (standard)
9xx: CRI 90
23: 23° Lens
36: 36° Lens
48: 48° Lens
57: 57° Lens
ZM: Adjustable zoom lens*
*Only for Tektus 60 with Vero10 LED. See p.419 for more information.
CRI97
