89

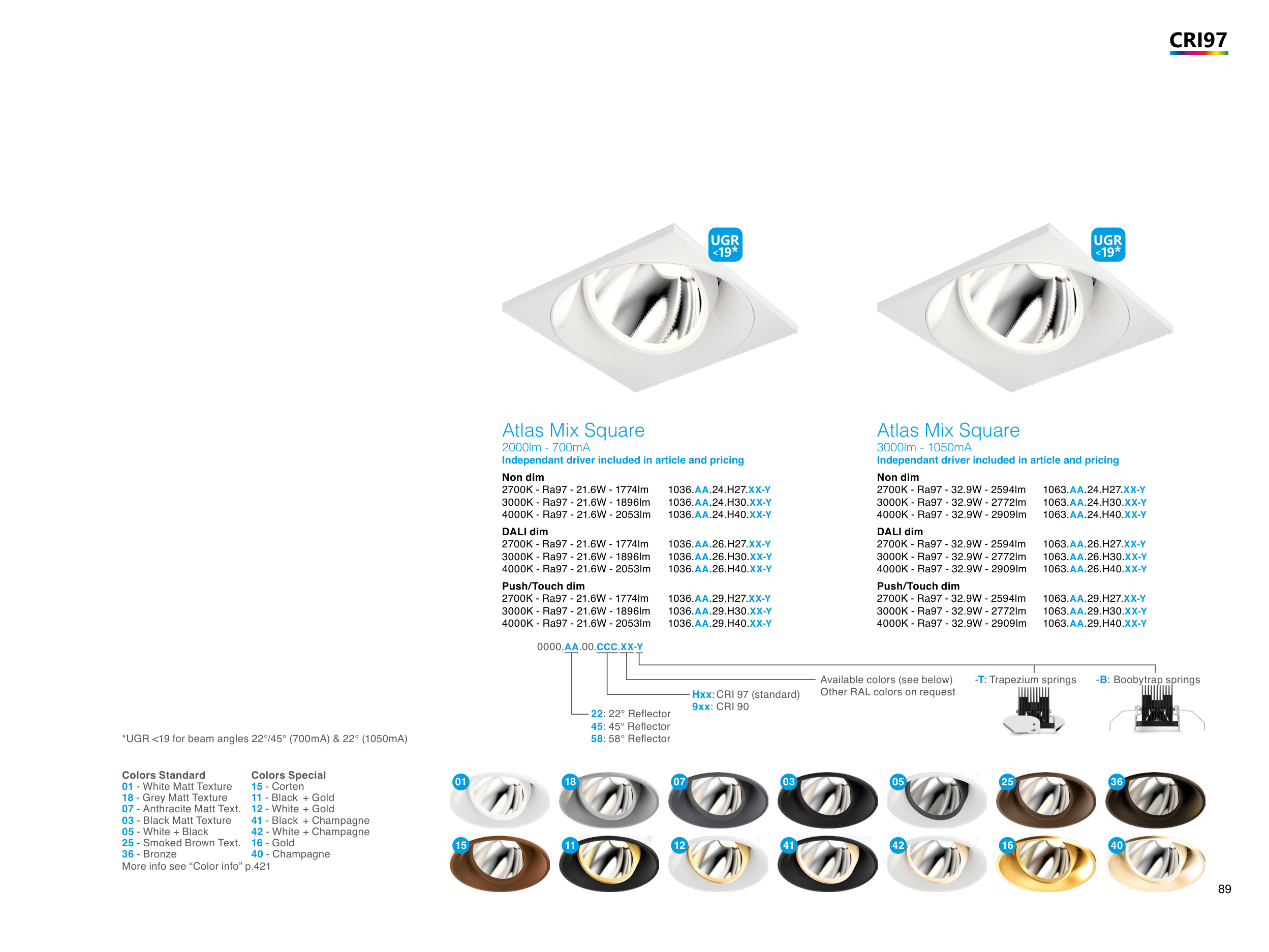

Atlas Mix Square
3000lm - 1050mA
Independant driver included in article and pricing
Non dim
2700K - Ra97 - 32.9W - 2594lm
1063.AA.24.H27.XX-Y
3000K - Ra97 - 32.9W - 2772lm
1063.AA.24.H30.XX-Y
4000K - Ra97 - 32.9W - 2909lm
1063.AA.24.H40.XX-Y
DALI dim
2700K - Ra97 - 32.9W - 2594lm
1063.AA.26.H27.XX-Y
3000K - Ra97 - 32.9W - 2772lm
1063.AA.26.H30.XX-Y
4000K - Ra97 - 32.9W - 2909lm
1063.AA.26.H40.XX-Y
Push/Touch dim
2700K - Ra97 - 32.9W - 2594lm
1063.AA.29.H27.XX-Y
3000K - Ra97 - 32.9W - 2772lm
1063.AA.29.H30.XX-Y
4000K - Ra97 - 32.9W - 2909lm
1063.AA.29.H40.XX-Y
Atlas Mix Square
2000lm - 700mA
Independant driver included in article and pricing
Non dim
2700K - Ra97 - 21.6W - 1774lm
1036.AA.24.H27.XX-Y
3000K - Ra97 - 21.6W - 1896lm
1036.AA.24.H30.XX-Y
4000K - Ra97 - 21.6W - 2053lm
1036.AA.24.H40.XX-Y
DALI dim
2700K - Ra97 - 21.6W - 1774lm
1036.AA.26.H27.XX-Y
3000K - Ra97 - 21.6W - 1896lm
1036.AA.26.H30.XX-Y
4000K - Ra97 - 21.6W - 2053lm
1036.AA.26.H40.XX-Y
Push/Touch dim
2700K - Ra97 - 21.6W - 1774lm
1036.AA.29.H27.XX-Y
3000K - Ra97 - 21.6W - 1896lm
1036.AA.29.H30.XX-Y
4000K - Ra97 - 21.6W - 2053lm
1036.AA.29.H40.XX-Y
More info see “Color info” p.421
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
05 - White + Black
25 - Smoked Brown Text.
36 - Bronze
Colors Special
15 - Corten
11 - Black + Gold
12 - White + Gold
41 - Black + Champagne
42 - White + Champagne
16 - Gold
40 - Champagne
*UGR <19 for beam angles 22°/45° (700mA) & 22° (1050mA)
-T: Trapezium springs
-B: Boobytrap springs
0000.AA.00.CCC.XX-Y
Available colors (see below)
Other RAL colors on request
Hxx: CRI 97 (standard)
9xx: CRI 90
22: 22° Reflector
45: 45° Reflector
58: 58° Reflector
CRI97
01
15
18
11
07
12
03
41
05
42
25
16
36
40
