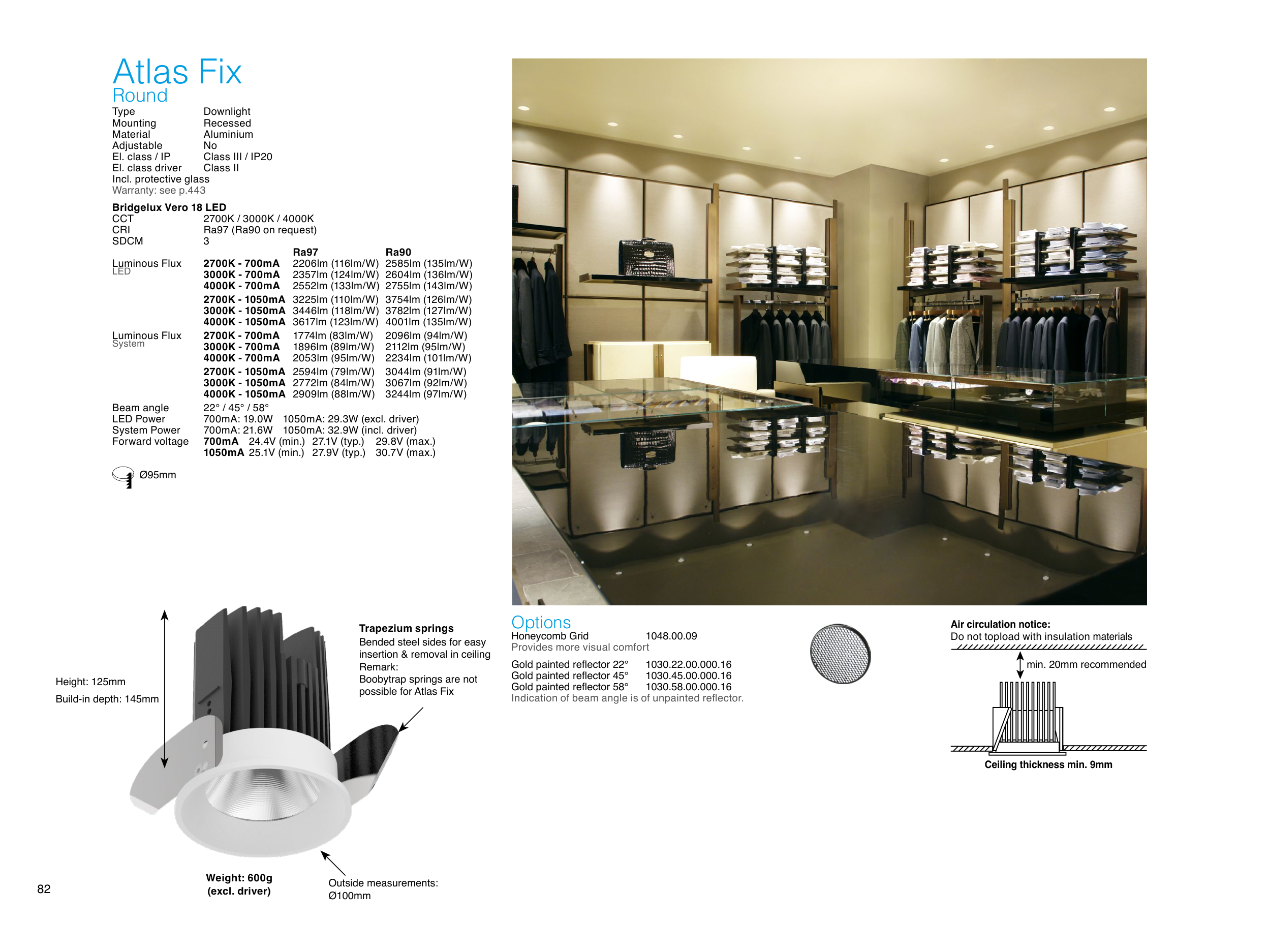

Atlas Fix
Round
Type
Downlight
Mounting
Recessed
Material
Aluminium
Adjustable
No
El. class / IP
Class III / IP20
El. class driver
Class II
Incl. protective glass
Warranty: see p.443
Bridgelux Vero 18 LED
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K - 700mA 2206lm (116lm/W) 2585lm (135lm/W)
LED
3000K - 700mA 2357lm (124lm/W) 2604lm (136lm/W)
4000K - 700mA 2552lm (133lm/W) 2755lm (143lm/W)
2700K - 1050mA 3225lm (110lm/W) 3754lm (126lm/W)
3000K - 1050mA 3446lm (118lm/W) 3782lm (127lm/W)
4000K - 1050mA 3617lm (123lm/W) 4001lm (135lm/W)
Luminous Flux
2700K - 700mA 1774lm (83lm/W) 2096lm (94lm/W)
System
3000K - 700mA 1896lm (89lm/W) 2112lm (95lm/W)
4000K - 700mA 2053lm (95lm/W) 2234lm (101lm/W)
2700K - 1050mA 2594lm (79lm/W) 3044lm (91lm/W)
3000K - 1050mA 2772lm (84lm/W) 3067lm (92lm/W)
4000K - 1050mA 2909lm (88lm/W) 3244lm (97lm/W)
Beam angle
22° / 45° / 58°
LED Power
700mA: 19.0W 1050mA: 29.3W (excl. driver)
System Power
700mA: 21.6W 1050mA: 32.9W (incl. driver)
Forward voltage
700mA 24.4V (min.) 27.1V (typ.)
29.8V (max.)
1050mA 25.1V (min.) 27.9V (typ.) 30.7V (max.)
Outside measurements:
Ø100mm
min. 20mm recommended
Air circulation notice:
Do not topload with insulation materials
Weight: 600g
(excl. driver)
Bended steel sides for easy
insertion & removal in ceiling
Remark:
Boobytrap springs are not
possible for Atlas Fix
Trapezium springs
Ø95mm
Ceiling thickness min. 9mm
Height: 125mm
Build-in depth: 145mm
Options
Honeycomb Grid
1048.00.09
Provides more visual comfort
Gold painted reflector 22°
1030.22.00.000.16
Gold painted reflector 45°
1030.45.00.000.16
Gold painted reflector 58°
1030.58.00.000.16
Indication of beam angle is of unpainted reflector.
