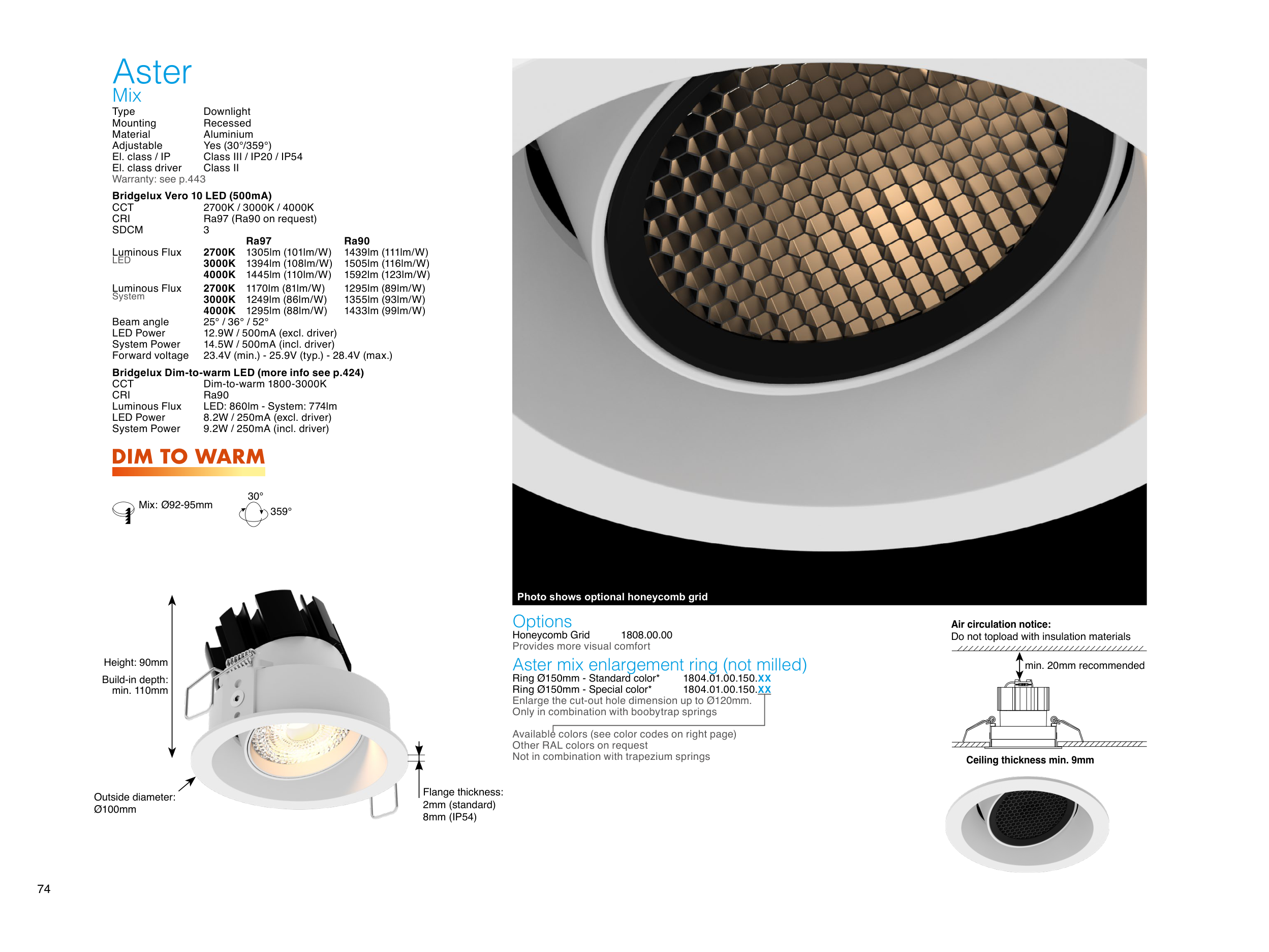

74
Aster
Mix
359°
30°
Mix: Ø92-95mm
min. 20mm recommended
Air circulation notice:
Do not topload with insulation materials
Ceiling thickness min. 9mm
DIM TO
WARM
DIM TO WARM
3100K
1850K
3100K
1850K
DIM TO WARM
3100K
1850K
Type
Downlight
Mounting
Recessed
Material
Aluminium
Adjustable
Yes (30°/359°)
El. class / IP
Class III / IP20 / IP54
El. class driver
Class II
Warranty: see p.443
Bridgelux Vero 10 LED (500mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K 1305lm (101lm/W) 1439lm (111lm/W)
LED
3000K 1394lm (108lm/W) 1505lm (116lm/W)
4000K 1445lm (110lm/W) 1592lm (123lm/W)
Luminous Flux
2700K 1170lm (81lm/W)
1295lm (89lm/W)
System
3000K 1249lm (86lm/W)
1355lm (93lm/W)
4000K 1295lm (88lm/W)
1433lm (99lm/W)
Beam angle
25° / 36° / 52°
LED Power
12.9W / 500mA (excl. driver)
System Power
14.5W / 500mA (incl. driver)
Forward voltage
23.4V (min.) - 25.9V (typ.) - 28.4V (max.)
Bridgelux Dim-to-warm LED (more info see p.424)
CCT
Dim-to-warm 1800-3000K
CRI
Ra90
Luminous Flux
LED: 860lm - System: 774lm
LED Power
8.2W / 250mA (excl. driver)
System Power
9.2W / 250mA (incl. driver)
Options
Honeycomb Grid
1808.00.00
Provides more visual comfort
Aster mix enlargement ring (not milled)
Ring Ø150mm - Standard color*
1804.01.00.150.XX
Ring Ø150mm - Special color*
1804.01.00.150.XX
Enlarge the cut-out hole dimension up to Ø120mm.
Only in combination with boobytrap springs
Available colors (see color codes on right page)
Other RAL colors on request
Not in combination with trapezium springs
Outside diameter:
Ø100mm
Flange thickness:
2mm (standard)
8mm (IP54)
Photo shows optional honeycomb grid
Height: 90mm
Build-in depth:
min. 110mm
