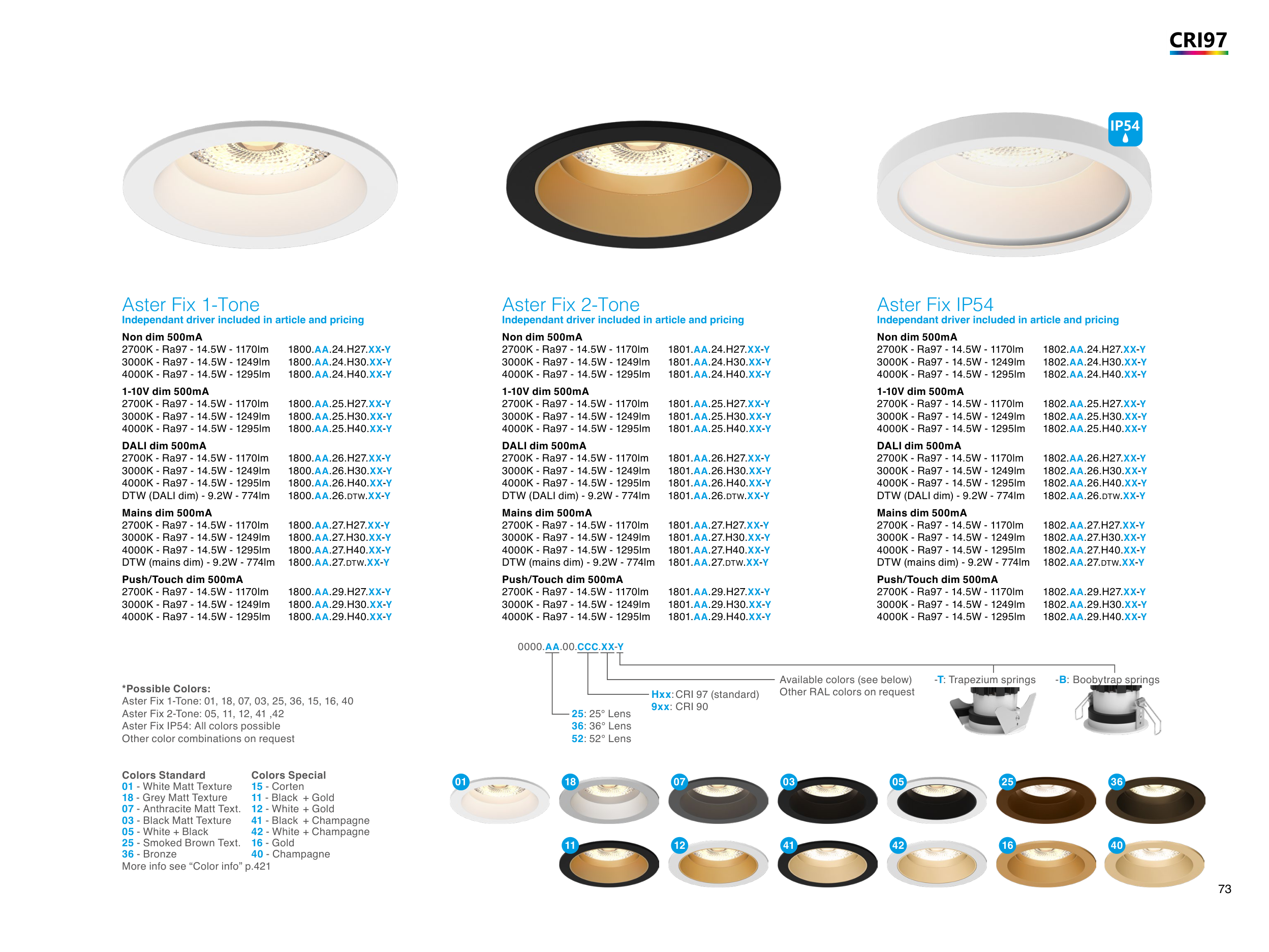

Aster Fix IP54
Independant driver included in article and pricing
Non dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1802.AA.24.H27.XX-Y
3000K - Ra97 - 14.5W - 1249lm
1802.AA.24.H30.XX-Y
4000K - Ra97 - 14.5W - 1295lm
1802.AA.24.H40.XX-Y
1-10V dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1802.AA.25.H27.XX-Y
3000K - Ra97 - 14.5W - 1249lm
1802.AA.25.H30.XX-Y
4000K - Ra97 - 14.5W - 1295lm
1802.AA.25.H40.XX-Y
DALI dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1802.AA.26.H27.XX-Y
3000K - Ra97 - 14.5W - 1249lm
1802.AA.26.H30.XX-Y
4000K - Ra97 - 14.5W - 1295lm
1802.AA.26.H40.XX-Y
DTW (DALI dim) - 9.2W - 774lm
1802.AA.26.DTW.XX-Y
Mains dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1802.AA.27.H27.XX-Y
3000K - Ra97 - 14.5W - 1249lm
1802.AA.27.H30.XX-Y
4000K - Ra97 - 14.5W - 1295lm
1802.AA.27.H40.XX-Y
DTW (mains dim) - 9.2W - 774lm
1802.AA.27.DTW.XX-Y
Push/Touch dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1802.AA.29.H27.XX-Y
3000K - Ra97 - 14.5W - 1249lm
1802.AA.29.H30.XX-Y
4000K - Ra97 - 14.5W - 1295lm
1802.AA.29.H40.XX-Y
Aster Fix 2-Tone
Independant driver included in article and pricing
Non dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1801.AA.24.H27.XX-Y
3000K - Ra97 - 14.5W - 1249lm
1801.AA.24.H30.XX-Y
4000K - Ra97 - 14.5W - 1295lm
1801.AA.24.H40.XX-Y
1-10V dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1801.AA.25.H27.XX-Y
3000K - Ra97 - 14.5W - 1249lm
1801.AA.25.H30.XX-Y
4000K - Ra97 - 14.5W - 1295lm
1801.AA.25.H40.XX-Y
DALI dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1801.AA.26.H27.XX-Y
3000K - Ra97 - 14.5W - 1249lm
1801.AA.26.H30.XX-Y
4000K - Ra97 - 14.5W - 1295lm
1801.AA.26.H40.XX-Y
DTW (DALI dim) - 9.2W - 774lm
1801.AA.26.DTW.XX-Y
Mains dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1801.AA.27.H27.XX-Y
3000K - Ra97 - 14.5W - 1249lm
1801.AA.27.H30.XX-Y
4000K - Ra97 - 14.5W - 1295lm
1801.AA.27.H40.XX-Y
DTW (mains dim) - 9.2W - 774lm
1801.AA.27.DTW.XX-Y
Push/Touch dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1801.AA.29.H27.XX-Y
3000K - Ra97 - 14.5W - 1249lm
1801.AA.29.H30.XX-Y
4000K - Ra97 - 14.5W - 1295lm
1801.AA.29.H40.XX-Y
Aster Fix 1-Tone
Independant driver included in article and pricing
Non dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1800.AA.24.H27.XX-Y
3000K - Ra97 - 14.5W - 1249lm
1800.AA.24.H30.XX-Y
4000K - Ra97 - 14.5W - 1295lm
1800.AA.24.H40.XX-Y
1-10V dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1800.AA.25.H27.XX-Y
3000K - Ra97 - 14.5W - 1249lm
1800.AA.25.H30.XX-Y
4000K - Ra97 - 14.5W - 1295lm
1800.AA.25.H40.XX-Y
DALI dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1800.AA.26.H27.XX-Y
3000K - Ra97 - 14.5W - 1249lm
1800.AA.26.H30.XX-Y
4000K - Ra97 - 14.5W - 1295lm
1800.AA.26.H40.XX-Y
DTW (DALI dim) - 9.2W - 774lm
1800.AA.26.DTW.XX-Y
Mains dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1800.AA.27.H27.XX-Y
3000K - Ra97 - 14.5W - 1249lm
1800.AA.27.H30.XX-Y
4000K - Ra97 - 14.5W - 1295lm
1800.AA.27.H40.XX-Y
DTW (mains dim) - 9.2W - 774lm
1800.AA.27.DTW.XX-Y
Push/Touch dim 500mA
2700K - Ra97 - 14.5W - 1170lm
1800.AA.29.H27.XX-Y
3000K - Ra97 - 14.5W - 1249lm
1800.AA.29.H30.XX-Y
4000K - Ra97 - 14.5W - 1295lm
1800.AA.29.H40.XX-Y
*Possible Colors:
Aster Fix 1-Tone: 01, 18, 07, 03, 25, 36, 15, 16, 40
Aster Fix 2-Tone: 05, 11, 12, 41 ,42
Aster Fix IP54: All colors possible
Other color combinations on request
01
18
11
07
12
03
41
05
42
25
16
36
40
More info see “Color info” p.421
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
05 - White + Black
25 - Smoked Brown Text.
36 - Bronze
Colors Special
15 - Corten
11 - Black + Gold
12 - White + Gold
41 - Black + Champagne
42 - White + Champagne
16 - Gold
40 - Champagne
-T: Trapezium springs
-B: Boobytrap springs
0000.AA.00.CCC.XX-Y
Available colors (see below)
Other RAL colors on request
Hxx: CRI 97 (standard)
9xx: CRI 90
25: 25° Lens
36: 36° Lens
52: 52° Lens
CRI97
