43

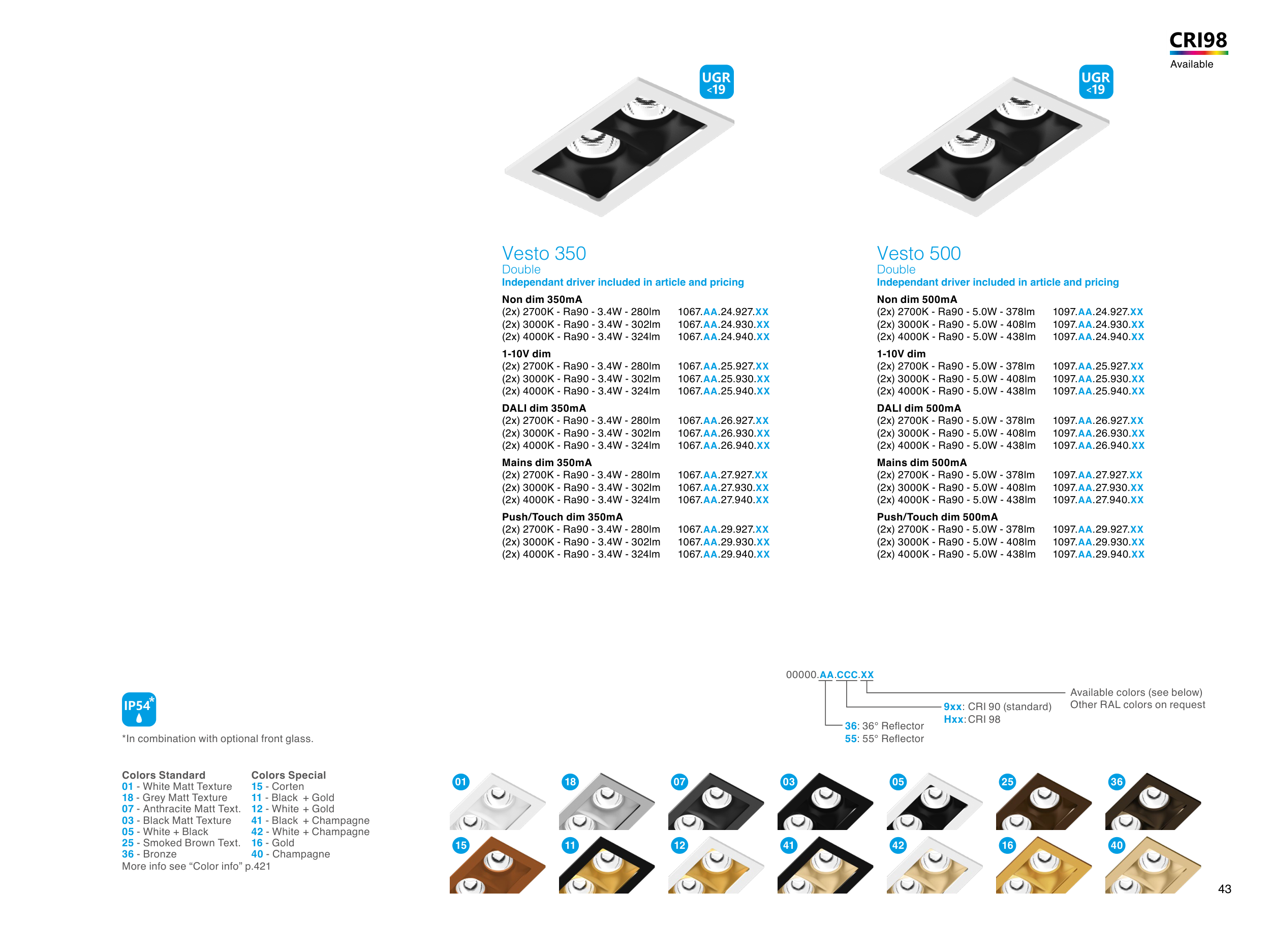

Vesto 500
Double
Independant driver included in article and pricing
Non dim 500mA
(2x) 2700K - Ra90 - 5.0W - 378lm
1097.AA.24.927.XX
(2x) 3000K - Ra90 - 5.0W - 408lm
1097.AA.24.930.XX
(2x) 4000K - Ra90 - 5.0W - 438lm
1097.AA.24.940.XX
1-10V dim
(2x) 2700K - Ra90 - 5.0W - 378lm
1097.AA.25.927.XX
(2x) 3000K - Ra90 - 5.0W - 408lm
1097.AA.25.930.XX
(2x) 4000K - Ra90 - 5.0W - 438lm
1097.AA.25.940.XX
DALI dim 500mA
(2x) 2700K - Ra90 - 5.0W - 378lm
1097.AA.26.927.XX
(2x) 3000K - Ra90 - 5.0W - 408lm
1097.AA.26.930.XX
(2x) 4000K - Ra90 - 5.0W - 438lm
1097.AA.26.940.XX
Mains dim 500mA
(2x) 2700K - Ra90 - 5.0W - 378lm
1097.AA.27.927.XX
(2x) 3000K - Ra90 - 5.0W - 408lm
1097.AA.27.930.XX
(2x) 4000K - Ra90 - 5.0W - 438lm
1097.AA.27.940.XX
Push/Touch dim 500mA
(2x) 2700K - Ra90 - 5.0W - 378lm
1097.AA.29.927.XX
(2x) 3000K - Ra90 - 5.0W - 408lm
1097.AA.29.930.XX
(2x) 4000K - Ra90 - 5.0W - 438lm
1097.AA.29.940.XX
Vesto 350
Double
Independant driver included in article and pricing
Non dim 350mA
(2x) 2700K - Ra90 - 3.4W - 280lm
1067.AA.24.927.XX
(2x) 3000K - Ra90 - 3.4W - 302lm
1067.AA.24.930.XX
(2x) 4000K - Ra90 - 3.4W - 324lm
1067.AA.24.940.XX
1-10V dim
(2x) 2700K - Ra90 - 3.4W - 280lm
1067.AA.25.927.XX
(2x) 3000K - Ra90 - 3.4W - 302lm
1067.AA.25.930.XX
(2x) 4000K - Ra90 - 3.4W - 324lm
1067.AA.25.940.XX
DALI dim 350mA
(2x) 2700K - Ra90 - 3.4W - 280lm
1067.AA.26.927.XX
(2x) 3000K - Ra90 - 3.4W - 302lm
1067.AA.26.930.XX
(2x) 4000K - Ra90 - 3.4W - 324lm
1067.AA.26.940.XX
Mains dim 350mA
(2x) 2700K - Ra90 - 3.4W - 280lm
1067.AA.27.927.XX
(2x) 3000K - Ra90 - 3.4W - 302lm
1067.AA.27.930.XX
(2x) 4000K - Ra90 - 3.4W - 324lm
1067.AA.27.940.XX
Push/Touch dim 350mA
(2x) 2700K - Ra90 - 3.4W - 280lm
1067.AA.29.927.XX
(2x) 3000K - Ra90 - 3.4W - 302lm
1067.AA.29.930.XX
(2x) 4000K - Ra90 - 3.4W - 324lm
1067.AA.29.940.XX
More info see “Color info” p.421
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
05 - White + Black
25 - Smoked Brown Text.
36 - Bronze
01
18
11
07
12
03
41
05
42
25
16
36
40
15
Colors Special
15 - Corten
11 - Black + Gold
12 - White + Gold
41 - Black + Champagne
42 - White + Champagne
16 - Gold
40 - Champagne
36: 36° Reflector
55: 55° Reflector
00000.AA.CCC.XX
Available colors (see below)
Other RAL colors on request
9xx: CRI 90 (standard)
Hxx: CRI 98
*In combination with optional front glass.
CRI98
Available
