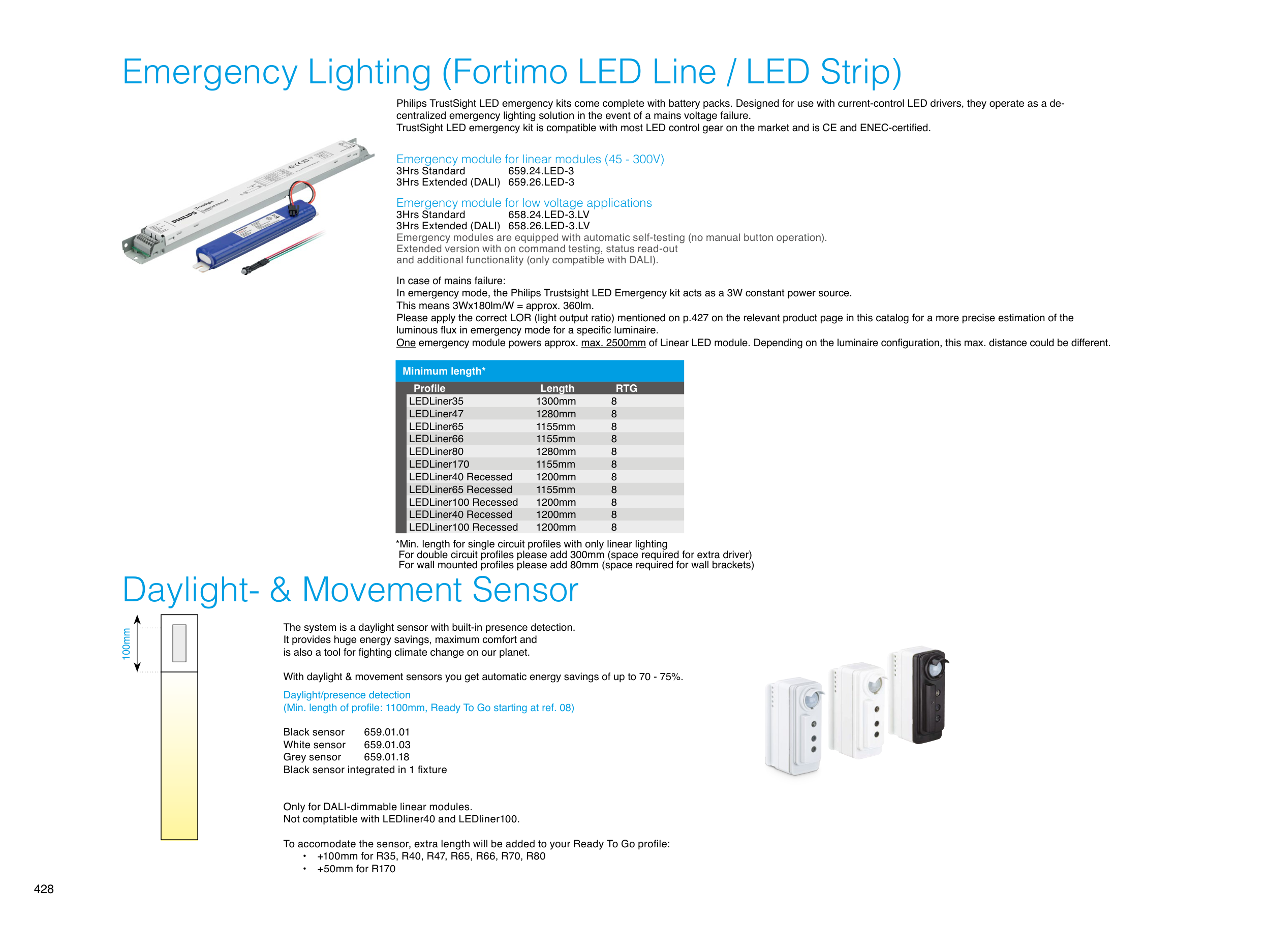

Emergency Lighting (Fortimo LED Line / LED Strip)
Emergency module for linear modules (45 - 300V)
3Hrs Standard
659.24.LED-3
3Hrs Extended (DALI) 659.26.LED-3
Emergency module for low voltage applications
3Hrs Standard
658.24.LED-3.LV
3Hrs Extended (DALI) 658.26.LED-3.LV
Emergency modules are equipped with automatic self-testing (no manual button operation).
Extended version with on command testing, status read-out
and additional functionality (only compatible with DALI).
Philips TrustSight LED emergency kits come complete with battery packs. Designed for use with current-control LED drivers, they operate as a de-
centralized emergency lighting solution in the event of a mains voltage failure.
TrustSight LED emergency kit is compatible with most LED control gear on the market and is CE and ENEC-certified.
In case of mains failure:
In emergency mode, the Philips Trustsight LED Emergency kit acts as a 3W constant power source.
This means 3Wx180lm/W = approx. 360lm.
Please apply the correct LOR (light output ratio) mentioned on p.427 on the relevant product page in this catalog for a more precise estimation of the
luminous flux in emergency mode for a specific luminaire.
One emergency module powers approx. max. 2500mm of Linear LED module. Depending on the luminaire configuration, this max. distance could be different.
100mm
Daylight- & Movement Sensor
Daylight/presence detection
(Min. length of profile: 1100mm, Ready To Go starting at ref. 08)
Black sensor
659.01.01
White sensor
659.01.03
Grey sensor
659.01.18
Black sensor integrated in 1 fixture
Only for DALI-dimmable linear modules.
Not comptatible with LEDliner40 and LEDliner100.
To accomodate the sensor, extra length will be added to your Ready To Go profile:
• +100mm for R35, R40, R47, R65, R66, R70, R80
• +50mm for R170
The system is a daylight sensor with built-in presence detection.
It provides huge energy savings, maximum comfort and
is also a tool for fighting climate change on our planet.
With daylight & movement sensors you get automatic energy savings of up to 70 - 75%.
Minimum length*
Profile
Length
RTG
LEDLiner35
1300mm
8
LEDLiner47
1280mm
8
LEDLiner65
1155mm
8
LEDLiner66
1155mm
8
LEDLiner80
1280mm
8
LEDLiner170
1155mm
8
LEDLiner40 Recessed
1200mm
8
LEDLiner65 Recessed
1155mm
8
LEDLiner100 Recessed
1200mm
8
LEDLiner40 Recessed
1200mm
8
LEDLiner100 Recessed
1200mm
8
*Min. length for single circuit profiles with only linear lighting
For double circuit profiles please add 300mm (space required for extra driver)
For wall mounted profiles please add 80mm (space required for wall brackets)
