Bridgelux Vero 10
(Tc=85°C)
CCT
CRI
Lum.
Flux
Power
consump.
Module
efficacy
Nom. current
Forward
voltage
Colour
consist.
Lumen Maint.
L70B50
Photobiol.
safety
K
Ra
lm
W
lm/W
mA
V
SDCM
K hrs
Bridgelux Vero 10 927 type D 350mA
2700
90
1100
8.9
124
350
25,3 (typ.)
3
70
RG1
Bridgelux Vero 10 930 type D 350mA
3000
90
1156
8.9
130
350
25,3 (typ.)
3
70
RG1
Bridgelux Vero 10 940 type D 350mA
4000
90
1172
8.9
132
350
25,3 (typ.)
3
70
RG1
Bridgelux Vero 10 927 type D 500mA
2700
90
1439
13,1
111
500
26,2 (typ.)
3
70
RG1
Bridgelux Vero 10 930 type D 500mA
3000
90
1505
13,1
116
500
26,2 (typ.)
3
70
RG1
Bridgelux Vero 10 940 type D 500mA
4000
90
1592
13,1
123
500
26,2 (typ.)
3
70
RG1
Bridgelux Vero 10 927 type D 350mA
2700
97
939
8,7
108
350
24,9 (typ.)
3
70
RG1
Bridgelux Vero 10 930 type D 350mA
3000
97
1003
8,7
115
350
24,9 (typ.)
3
70
RG1
Bridgelux Vero 10 940 type D 350mA
4000
97
1049
8,9
118
350
25,3 (typ.)
3
70
RG1
Bridgelux Vero 10 927 type D 500mA
2700
97
1305
12,9
101
500
25,9 (typ.)
3
70
RG1
Bridgelux Vero 10 930 type D 500mA
3000
97
1394
12,9
108
500
25,9 (typ.)
3
70
RG1
Bridgelux Vero 10 940 type D 500mA
4000
97
1445
13,1
110
500
26,2 (typ.)
3
70
RG1
Bridgelux Vero 18
(Tc=85°C)
CCT
CRI
Lum.
Flux
Power
consump.
Module
efficacy
Nom. current
Forward
voltage
Colour
consist.
Lumen Maint.
L70B50
Photobiol.
safety
K
Ra
lm
W
lm/W
mA
V
SDCM
K hrs
Bridgelux Vero 18 927 type D 700mA
2700
90
2585
19.2
135
700
27,4 (typ.)
3
70
RG1
Bridgelux Vero 18 930 type D 700mA
3000
90
2604
19.2
136
700
27,4 (typ.)
3
70
RG1
Bridgelux Vero 18 940 type D 700mA
4000
90
2755
19.2
143
700
27,4 (typ.)
3
70
RG1
Bridgelux Vero 18 927 type D 1050mA
2700
90
3754
29,5
126
1050
28,1 (typ.)
3
70
RG1
Bridgelux Vero 18 930 type D 1050mA
3000
90
3782
29,5
127
1050
28,1 (typ.)
3
70
RG1
Bridgelux Vero 18 940 type D 1050mA
4000
90
4001
29,5
135
1050
28,1 (typ.)
3
70
RG1
Bridgelux Vero 18 927 type D 700mA
2700
97
2206
19
116
700
27,1 (typ.)
3
70
RG1
Bridgelux Vero 18 930 type D 700mA
3000
97
2357
19
124
700
27,1 (typ.)
3
70
RG1
Bridgelux Vero 18 940 type D 700mA
4000
97
2552
19.2
133
700
27,4 (typ.)
3
70
RG1
Bridgelux Vero 18 927 type D 1050mA
2700
97
3225
29,3
110
1050
27,9 (typ.)
3
70
RG1
Bridgelux Vero 18 930 type D 1050mA
3000
97
3446
29,3
118
1050
27,9 (typ.)
3
70
RG1
Bridgelux Vero 18 940 type D 1050mA
4000
97
3617
29,5
123
1050
28,1 (typ.)
3
70
RG1

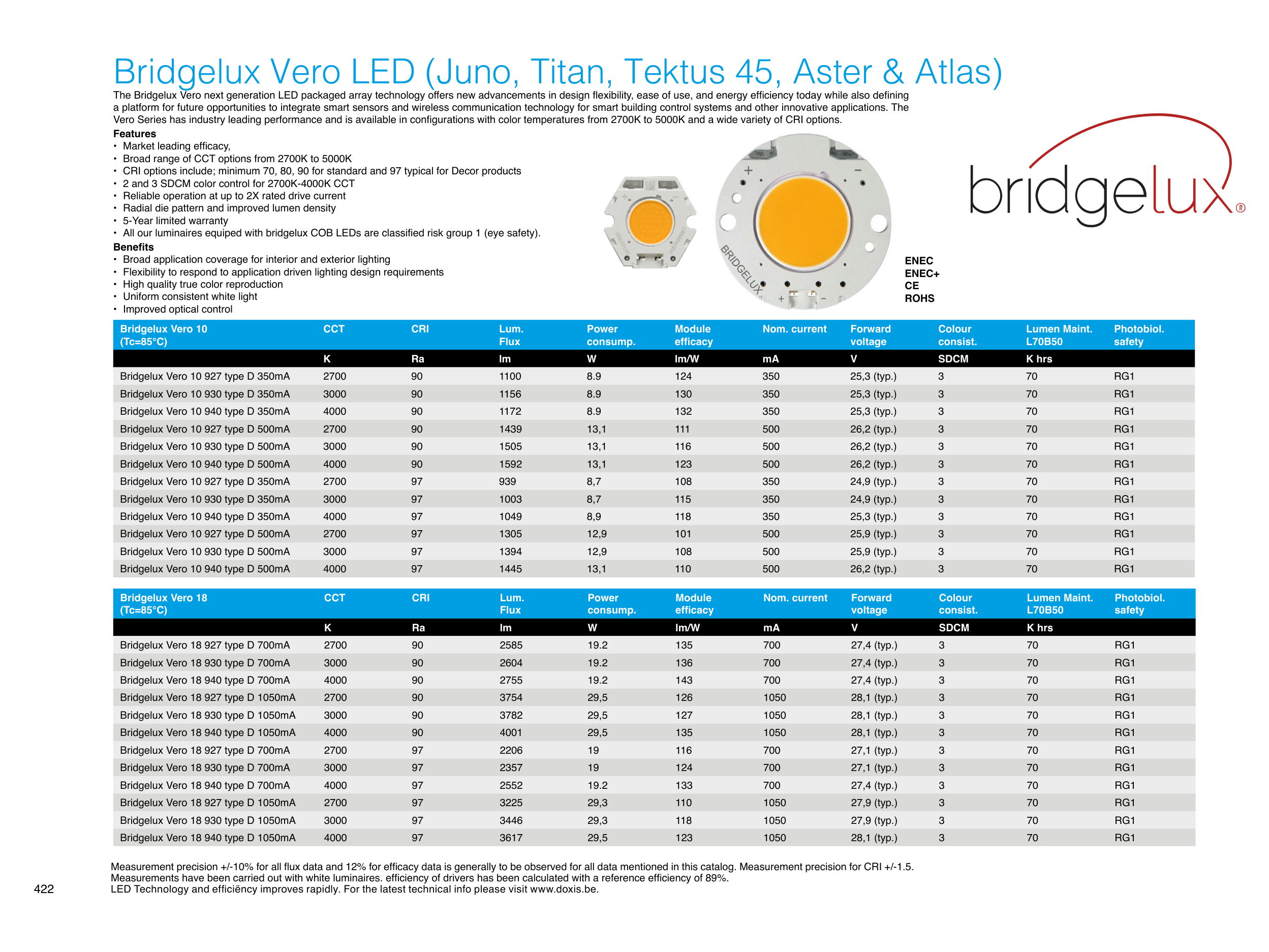

Bridgelux Vero LED (Juno, Titan, Tektus 45, Aster & Atlas)
The Bridgelux Vero next generation LED packaged array technology offers new advancements in design flexibility, ease of use, and energy efficiency today while also defining
a platform for future opportunities to integrate smart sensors and wireless communication technology for smart building control systems and other innovative applications. The
Vero Series has industry leading performance and is available in configurations with color temperatures from 2700K to 5000K and a wide variety of CRI options.
Features
• Market leading efficacy,
• Broad range of CCT options from 2700K to 5000K
• CRI options include; minimum 70, 80, 90 for standard and 97 typical for Decor products
• 2 and 3 SDCM color control for 2700K-4000K CCT
• Reliable operation at up to 2X rated drive current
• Radial die pattern and improved lumen density
• 5-Year limited warranty
• All our luminaires equiped with bridgelux COB LEDs are classified risk group 1 (eye safety).
Benefits
• Broad application coverage for interior and exterior lighting
• Flexibility to respond to application driven lighting design requirements
• High quality true color reproduction
• Uniform consistent white light
• Improved optical control
ENEC
ENEC+
CE
ROHS
Measurement precision +/-10% for all flux data and 12% for efficacy data is generally to be observed for all data mentioned in this catalog. Measurement precision for CRI +/-1.5.
Measurements have been carried out with white luminaires. efficiency of drivers has been calculated with a reference efficiency of 89%.
LED Technology and efficiëncy improves rapidly. For the latest technical info please visit www.doxis.be.
