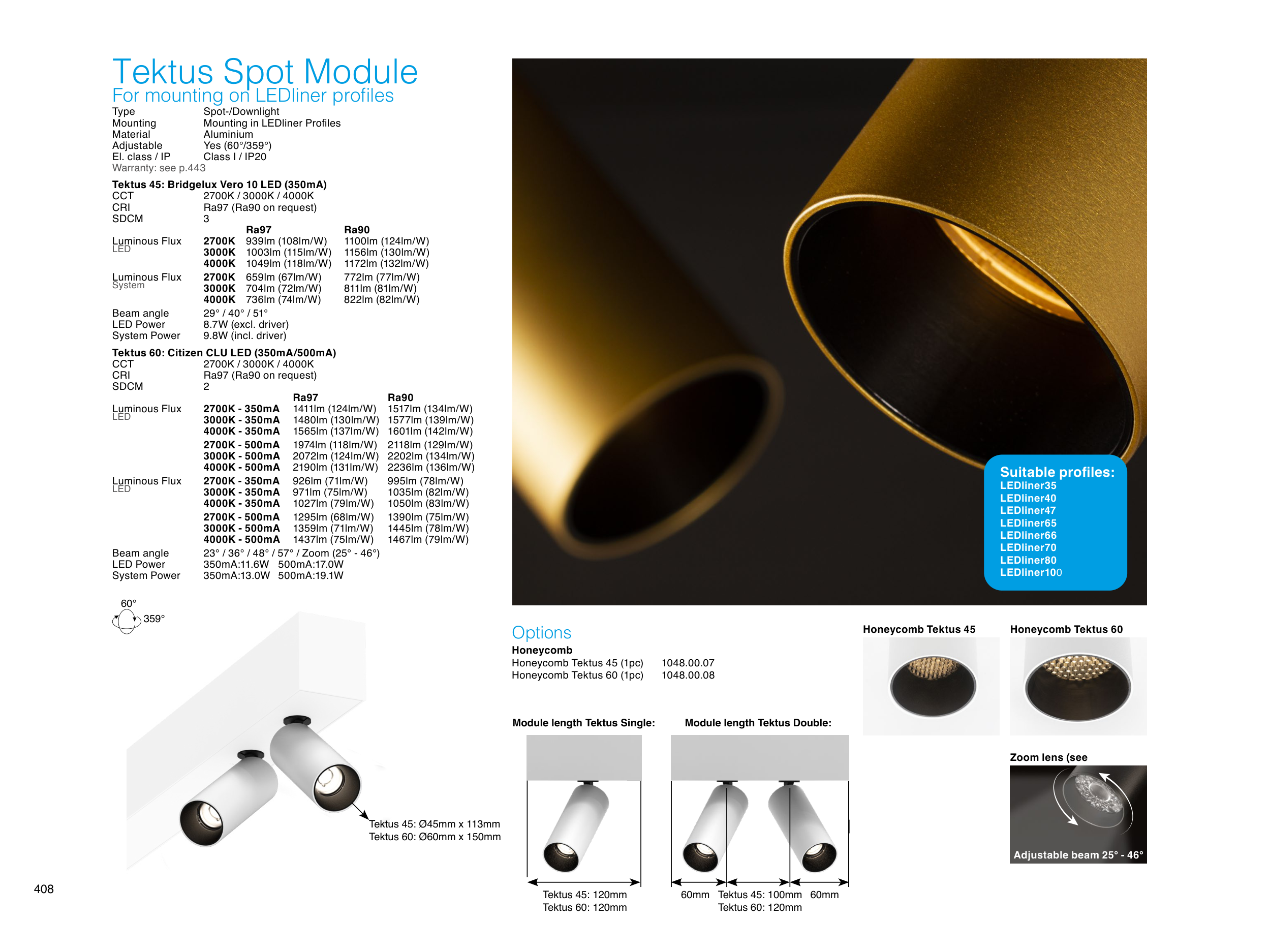

Tektus Spot Module
For mounting on LEDliner profiles
359°
60°
Type
Spot-/Downlight
Mounting
Mounting in LEDliner Profiles
Material
Aluminium
Adjustable
Yes (60°/359°)
El. class / IP
Class I / IP20
Warranty: see p.443
Tektus 45: Bridgelux Vero 10 LED (350mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K 939lm (108lm/W)
1100lm (124lm/W)
LED
3000K 1003lm (115lm/W) 1156lm (130lm/W)
4000K 1049lm (118lm/W) 1172lm (132lm/W)
Luminous Flux
2700K 659lm (67lm/W)
772lm (77lm/W)
System
3000K 704lm (72lm/W)
811lm (81lm/W)
4000K 736lm (74lm/W)
822lm (82lm/W)
Beam angle
29° / 40° / 51°
LED Power
8.7W (excl. driver)
System Power
9.8W (incl. driver)
Tektus 60: Citizen CLU LED (350mA/500mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
2
Ra97
Ra90
Luminous Flux
2700K - 350mA 1411lm (124lm/W) 1517lm (134lm/W)
LED
3000K - 350mA 1480lm (130lm/W) 1577lm (139lm/W)
4000K - 350mA 1565lm (137lm/W) 1601lm (142lm/W)
2700K - 500mA 1974lm (118lm/W) 2118lm (129lm/W)
3000K - 500mA 2072lm (124lm/W) 2202lm (134lm/W)
4000K - 500mA 2190lm (131lm/W) 2236lm (136lm/W)
Luminous Flux
2700K - 350mA 926lm (71lm/W)
995lm (78lm/W)
LED
3000K - 350mA 971lm (75lm/W)
1035lm (82lm/W)
4000K - 350mA 1027lm (79lm/W) 1050lm (83lm/W)
2700K - 500mA 1295lm (68lm/W) 1390lm (75lm/W)
3000K - 500mA 1359lm (71lm/W)
1445lm (78lm/W)
4000K - 500mA 1437lm (75lm/W) 1467lm (79lm/W)
Beam angle
23° / 36° / 48° / 57° / Zoom (25° - 46°)
LED Power
350mA:11.6W 500mA:17.0W
System Power
350mA:13.0W 500mA:19.1W
Tektus 45: Ø45mm x 113mm
Tektus 60: Ø60mm x 150mm
Module length Tektus Double:
Tektus 45: 120mm
Tektus 60: 120mm
Module length Tektus Single:
Tektus 45: 100mm
Tektus 60: 120mm
60mm
60mm
Options
Honeycomb
Honeycomb Tektus 45 (1pc)
1048.00.07
Honeycomb Tektus 60 (1pc)
1048.00.08
Suitable profiles:
LEDliner35
LEDliner40
LEDliner47
LEDliner65
LEDliner66
LEDliner70
LEDliner80
LEDliner100
Zoom lens (see
Adjustable beam 25° - 46°
Honeycomb Tektus 60
Honeycomb Tektus 45
