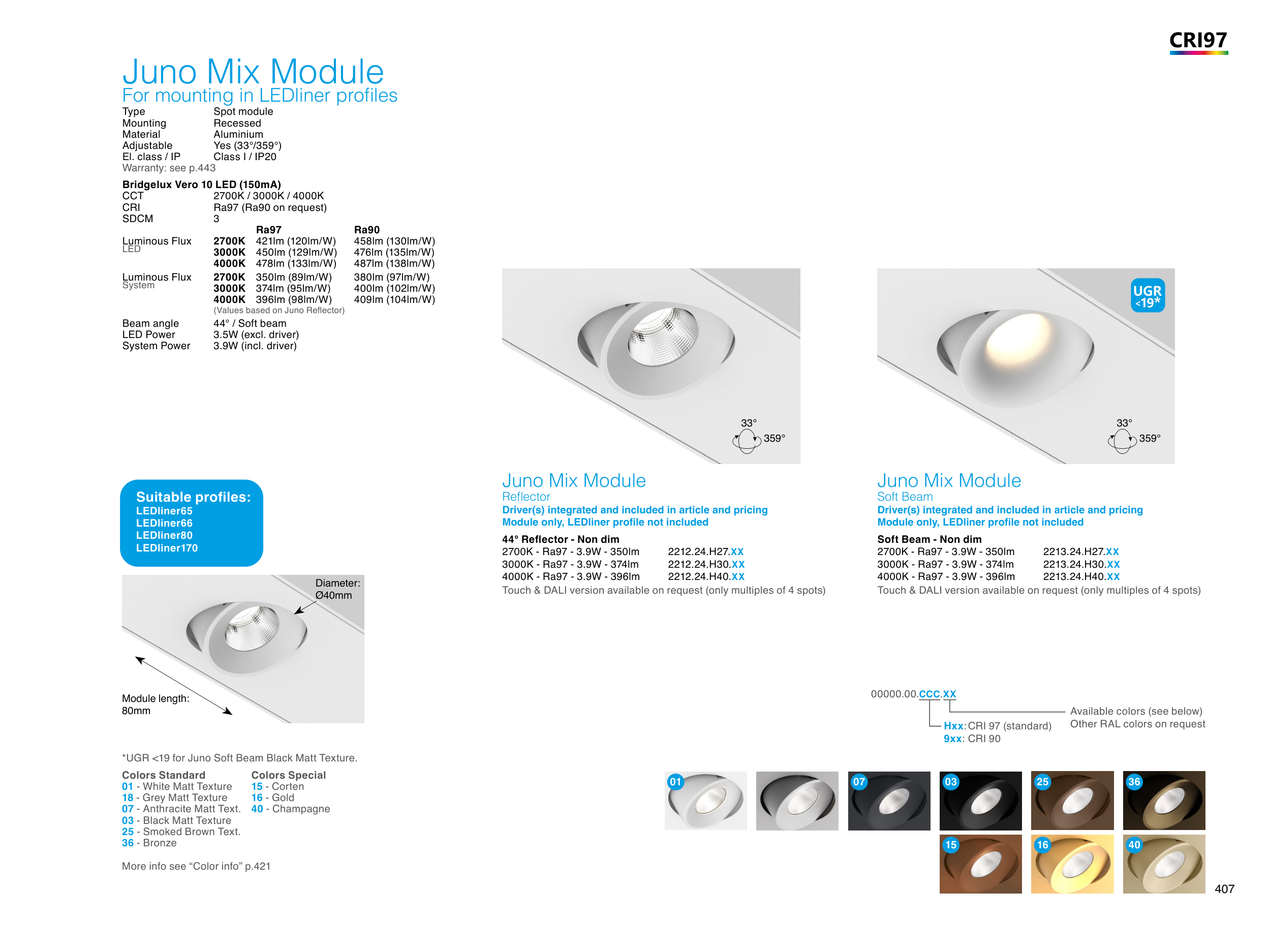

Juno Mix Module
For mounting in LEDliner profiles
Type
Spot module
Mounting
Recessed
Material
Aluminium
Adjustable
Yes (33°/359°)
El. class / IP
Class I / IP20
Warranty: see p.443
Bridgelux Vero 10 LED (150mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K 421lm (120lm/W)
458lm (130lm/W)
LED
3000K 450lm (129lm/W)
476lm (135lm/W)
4000K 478lm (133lm/W)
487lm (138lm/W)
Luminous Flux
2700K 350lm (89lm/W)
380lm (97lm/W)
System
3000K 374lm (95lm/W)
400lm (102lm/W)
4000K 396lm (98lm/W)
409lm (104lm/W)
(Values based on Juno Reflector)
Beam angle
44° / Soft beam
LED Power
3.5W (excl. driver)
System Power
3.9W (incl. driver)
Juno Mix Module
Soft Beam
Driver(s) integrated and included in article and pricing
Module only, LEDliner profile not included
Soft Beam - Non dim
2700K - Ra97 - 3.9W - 350lm
2213.24.H27.XX
3000K - Ra97 - 3.9W - 374lm
2213.24.H30.XX
4000K - Ra97 - 3.9W - 396lm
2213.24.H40.XX
Touch & DALI version available on request (only multiples of 4 spots)
Juno Mix Module
Reflector
Driver(s) integrated and included in article and pricing
Module only, LEDliner profile not included
44° Reflector - Non dim
2700K - Ra97 - 3.9W - 350lm
2212.24.H27.XX
3000K - Ra97 - 3.9W - 374lm
2212.24.H30.XX
4000K - Ra97 - 3.9W - 396lm
2212.24.H40.XX
Touch & DALI version available on request (only multiples of 4 spots)
*UGR <19 for Juno Soft Beam Black Matt Texture.
More info see “Color info” p.421
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
25 - Smoked Brown Text.
36 - Bronze
Colors Special
15 - Corten
16 - Gold
40 - Champagne
00000.00.CCC.XX
Available colors (see below)
Other RAL colors on request
Hxx: CRI 97 (standard)
9xx: CRI 90
01
15
18
07
03
25
16
36
40
Diameter:
Ø40mm
Module length:
80mm
Suitable profiles:
LEDliner65
LEDliner66
LEDliner80
LEDliner170
359°
33°
359°
33°
CRI97
