400
2700K
Ra90
Opal diffuser
3000K/4000K
Ra90
Opal diffuser
Tunable White
2700-6500K
Opal diffuser
2700K
Ra90
Prismatic diffuser
3000K/4000K
Ra80/Ra90
Prismatic diffuser
2x2200lm
562mm
Non dimmable
2221.24.927.4400
2221.24.CCC.4400
-
2221.24.927.4400.P
2221.24.CCC.4400.P
1-10V dimmable
2221.25.927.4400
2221.25.CCC.4400
-
2221.25.927.4400.P
2221.25.CCC.4400.P
Touch/DALI dim.
2221.26.927.4400
2221.26.CCC.4400
-
2221.26.927.4400.P
2221.26.CCC.4400.P
Tunable White (DALI DT8)
-
-
2221.26.TW.4400
-
-
2x2750lm*
704mm
Non dimmable
Not available
2221.24.CCC.5500
-
Not available
2221.24.CCC.5500.P
1-10V dimmable
Not available
2221.25.CCC.5500
-
Not available
2221.25.CCC.5500.P
Touch/DALI dim.
Not available
2221.26.CCC.5500
-
Not available
2221.26.CCC.5500.P
Tunable White (DALI DT8)
-
-
Not available
-
-
2x3300lm
844mm
Non dimmable
2221.24.927.6600
2221.24.CCC.6600
-
2221.24.927.6600.P
2221.24.CCC.6600.P
1-10V dimmable
2221.25.927.6600
2221.25.CCC.6600
-
2221.25.927.6600.P
2221.25.CCC.6600.P
Touch/DALI dim.
2221.26.927.6600
2221.26.CCC.6600
-
2221.26.927.6600.P
2221.26.CCC.6600.P
Tunable White (DALI DT8)
-
-
2221.26.TW.6600
-
-
2x3850lm*
986mm
Non dimmable
Not available
2221.24.CCC.7700
-
Not available
2221.24.CCC.7700.P
1-10V dimmable
Not available
2221.25.CCC.7700
-
Not available
2221.25.CCC.7700.P
Touch/DALI dim.
Not available
2221.26.CCC.7700
-
Not available
2221.26.CCC.7700.P
Tunable White (DALI DT8)
-
-
Not available
-
-
2x4400lm
1124mm
Non dimmable
2221.24.927.8800
2221.24.CCC.8800
-
2221.24.927.8800.P
2221.24.CCC.8800.P
1-10V dimmable
2221.25.927.8800
2221.25.CCC.8800
-
2221.25.927.8800.P
2221.25.CCC.8800.P
Touch/DALI dim.
2221.26.927.8800
2221.26.CCC.8800
-
2221.26.927.8800.P
2221.26.CCC.8800.P
Tunable White (DALI DT8)
-
-
2221.26.TW.8800
-
-
2x4950lm*
1266mm
Non dimmable
Not available
2221.24.CCC.9900
-
Not available
2221.24.CCC.9900.P
1-10V dimmable
Not available
2221.25.CCC.9900
-
Not available
2221.25.CCC.9900.P
Touch/DALI dim.
Not available
2221.26.CCC.9900
-
Not available
2221.26.CCC.9900.P
Tunable White (DALI DT8)
-
-
Not available
-
-
2x5500lm
1406mm
Non dimmable
2221.24.927.11000
2221.24.CCC.11000
-
2221.24.927.11000.P
2221.24.CCC.11000.P
1-10V dimmable
2221.25.927.11000
2221.25.CCC.11000
-
2221.25.927.11000.P
2221.25.CCC.11000.P
Touch/DALI dim.
2221.26.927.11000
2221.26.CCC.11000
-
2221.26.927.11000.P
2221.26.CCC.11000.P
Tunable White (DALI DT8)
-
-
2221.26.TW.11000
-
-
2x6050lm*
1548mm
Non dimmable
Not available
2221.24.CCC.12100
-
Not available
2221.24.CCC.12100.P
1-10V dimmable
Not available
2221.25.CCC.12100
-
Not available
2221.25.CCC.12100.P
Touch/DALI dim.
Not available
2221.26.CCC.12100
-
Not available
2221.26.CCC.12100.P
Tunable White (DALI DT8)
-
-
Not available
-
-
2x6600lm
1686mm
Non dimmable
2221.24.927.13200
2221.24.CCC.13200
-
2221.24.927.13200.P
2221.24.CCC.13200.P
1-10V dimmable
2221.25.927.13200
2221.25.CCC.13200
-
2221.25.927.13200.P
2221.25.CCC.13200.P
Touch/DALI dim.
2221.26.927.13200
2221.26.CCC.13200
-
2221.26.927.13200.P
2221.26.CCC.13200.P
Tunable White (DALI DT8)
-
-
2221.26.TW.13200
-
-
2x7150lm*
1828mm
Non dimmable
Not available
2221.24.CCC.14300
-
Not available
2221.24.CCC.14300.P
1-10V dimmable
Not available
2221.25.CCC.14300
-
Not available
2221.25.CCC.14300.P
Touch/DALI dim.
Not available
2221.26.CCC.14300
-
Not available
2221.26.CCC.14300.P
Tunable White (DALI DT8)
-
-
Not available
-
-
2x7700lm
1968mm
Non dimmable
2221.24.927.15400
2221.24.CCC.15400
-
2221.24.927.15400.P
2221.24.CCC.15400.P
1-10V dimmable
2221.25.927.15400
2221.25.CCC.15400
-
2221.25.927.15400.P
2221.25.CCC.15400.P
Touch/DALI dim.
2221.26.927.15400
2221.26.CCC.15400
-
2221.26.927.15400.P
2221.26.CCC.15400.P
Tunable White (DALI DT8)
-
-
2221.26.TW.15400
-
-
Module availability: -LEDliner40
-LEDliner47
-LEDliner66
-LEDliner70
-LEDliner80
-LEDliner170
Luminous flux mentioned is the flux of the LED modules in 4000K Ra90.
For further specifications see table on page 426.
To know the luminous flux of the luminaire, please apply the light output ratios on page 427 or check www.doxis.be.
* Not available in 927. Our supplier, Philips, does not provide 140mm LED modules in 2700K and Tunable White.
Only available for LEDliner66, LEDliner80 and LEDliner170
930: Ra90 - 3000K
940: Ra90 - 4000K
Philips Fortimo LED Module 1100lm/ft*

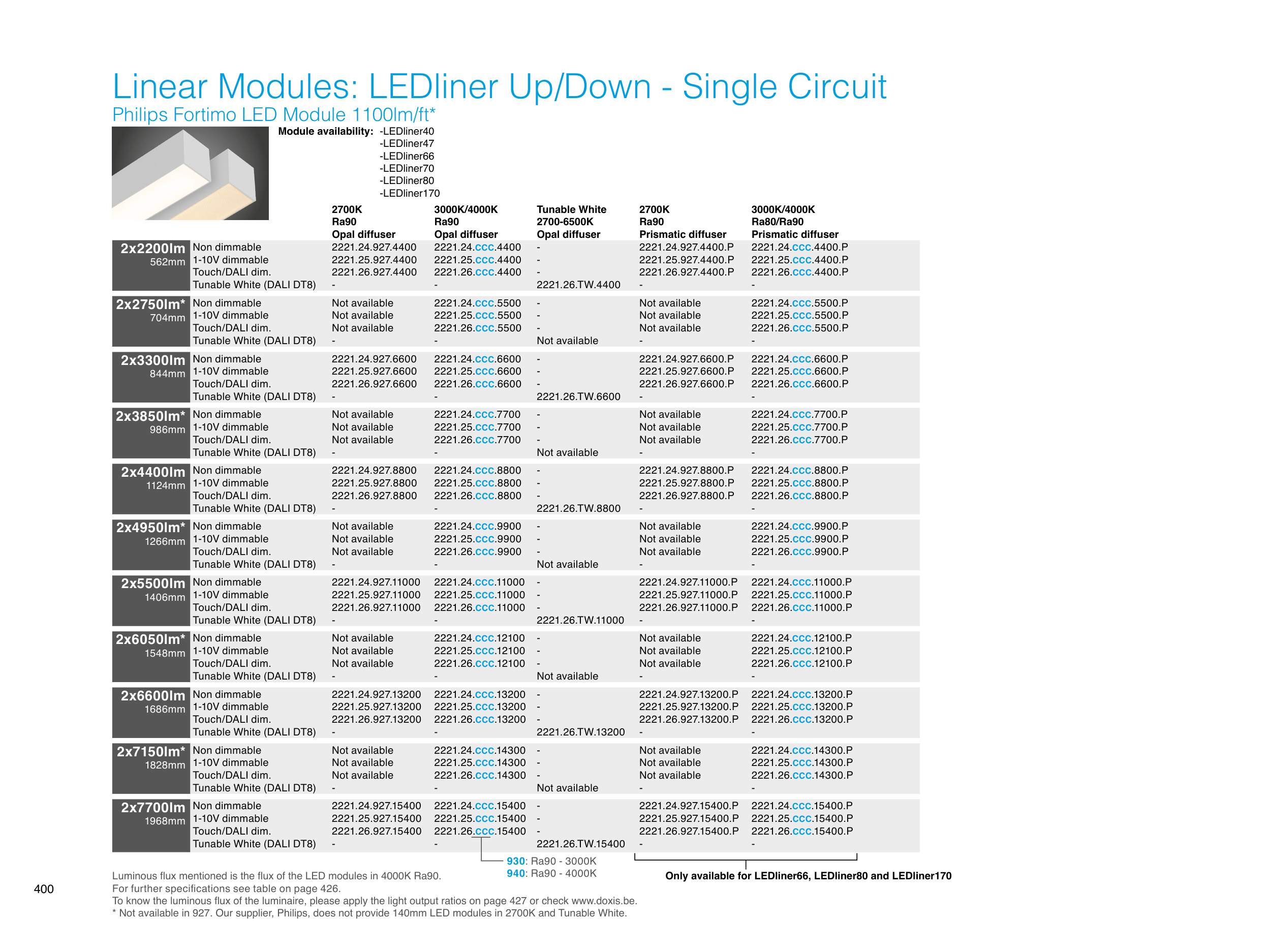

Linear Modules: LEDliner Up/Down - Single Circuit
