399
2700K
Ra90
Opal diffuser
3000K/4000K
Ra90
Opal diffuser
Tunable White
2700-6500K
Opal diffuser
2700K
Ra90
Prismatic diffuser
3000K/4000K
Ra80/Ra90
Prismatic diffuser
8800lm
2248mm
Non dimmable
2220.24.927.8800
2220.24.CCC.8800
-
2220.24.927.8800.P
2220.24.CCC.8800.P
1-10V dimmable
2220.25.927.8800
2220.25.CCC.8800
-
2220.25.927.8800.P
2220.25.CCC.8800.P
Touch/DALI dim.
2220.26.927.8800
2220.26.CCC.8800
-
2220.26.927.8800.P
2220.26.CCC.8800.P
Tunable White (DALI DT8)
-
-
2220.26.TW.8800
-
-
9350lm*
2390mm
Non dimmable
Not available
2220.24.CCC.9350
-
Not available
2220.24.CCC.9350.P
1-10V dimmable
Not available
2220.25.CCC.9350
-
Not available
2220.25.CCC.9350.P
Touch/DALI dim.
Not available
2220.26.CCC.9350
-
Not available
2220.26.CCC.9350.P
Tunable White (DALI DT8)
-
-
Not available
-
-
9900lm
2530mm
Non dimmable
2220.24.927.9900
2220.24.CCC.9900
-
2220.24.927.9900.P
2220.24.CCC.9900.P
1-10V dimmable
2220.25.927.9900
2220.25.CCC.9900
-
2220.25.927.9900.P
2220.25.CCC.9900.P
Touch/DALI dim.
2220.26.927.9900
2220.26.CCC.9900
-
2220.26.927.9900.P
2220.26.CCC.9900.P
Tunable White (DALI DT8)
-
-
2220.26.TW.9900
-
-
10450lm*
2672mm
Non dimmable
Not available
2220.24.CCC.10450
-
Not available
2220.24.CCC.10450.P
1-10V dimmable
Not available
2220.25.CCC.10450
-
Not available
2220.25.CCC.10450.P
Touch/DALI dim.
Not available
2220.26.CCC.10450
-
Not available
2220.26.CCC.10450.P
Tunable White (DALI DT8)
-
-
Not available
-
-
11000lm
2810mm
Non dimmable
2220.24.927.11000
2220.24.CCC.11000
-
2220.24.927.11000.P
2220.24.CCC.11000.P
1-10V dimmable
2220.25.927.11000
2220.25.CCC.11000
-
2220.25.927.11000.P
2220.25.CCC.11000.P
Touch/DALI dim.
2220.26.927.11000
2220.26.CCC.11000
-
2220.26.927.11000.P
2220.26.CCC.11000.P
Tunable White (DALI DT8)
-
-
2220.26.TW.11000
-
-
11550lm*
2952mm
Non dimmable
Not available
2220.24.CCC.11550
-
Not available
2220.24.CCC.11550.P
1-10V dimmable
Not available
2220.25.CCC.11550
-
Not available
2220.25.CCC.11550.P
Touch/DALI dim.
Not available
2220.26.CCC.11550
-
Not available
2220.26.CCC.11550.P
Tunable White (DALI DT8)
-
-
Not available
-
-
12100lm
3092mm
Non dimmable
2220.24.927.12100
2220.24.CCC.12100
-
2220.24.927.12100.P
2220.24.CCC.12100.P
1-10V dimmable
2220.25.927.12100
2220.25.CCC.12100
-
2220.25.927.12100.P
2220.25.CCC.12100.P
Touch/DALI dim.
2220.26.927.12100
2220.26.CCC.12100
-
2220.26.927.12100.P
2220.26.CCC.12100.P
Tunable White (DALI DT8)
-
-
2220.26.TW.12100
-
-
12650lm*
3234mm
Non dimmable
Not available
2220.24.CCC.12650
-
Not available
2220.24.CCC.12650.P
1-10V dimmable
Not available
2220.25.CCC.12650
-
Not available
2220.25.CCC.12650.P
Touch/DALI dim.
Not available
2220.26.CCC.12650
-
Not available
2220.26.CCC.12650.P
Tunable White (DALI DT8)
-
-
Not available
-
-
13200lm
3372mm
Non dimmable
2220.24.927.13200
2220.24.CCC.13200
-
2220.24.927.13200.P
2220.24.CCC.13200.P
1-10V dimmable
2220.25.927.13200
2220.25.CCC.13200
-
2220.25.927.13200.P
2220.25.CCC.13200.P
Touch/DALI dim.
2220.26.927.13200
2220.26.CCC.13200
-
2220.26.927.13200.P
2220.26.CCC.13200.P
Tunable White (DALI DT8)
-
-
2220.26.TW.13200
-
-
Only available for LEDliner65, LEDliner65 Recessed, LEDliner66, LEDliner80 and LEDliner170
930: Ra90 - 3000K
940: Ra90 - 4000K
Philips Fortimo LED Module 1100lm/ft*

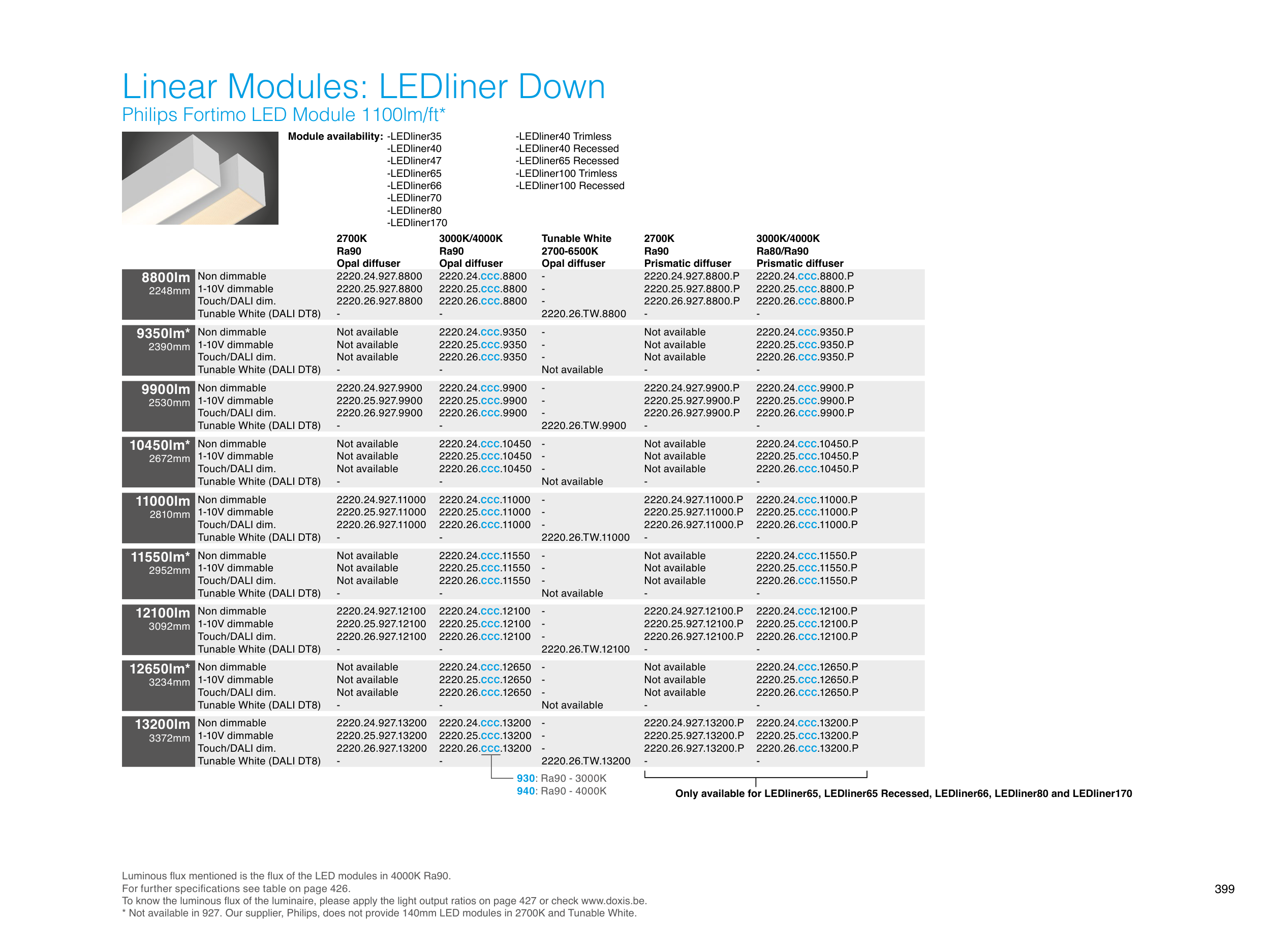

Linear Modules: LEDliner Down
Module availability: -LEDliner35
-LEDliner40
-LEDliner47
-LEDliner65
-LEDliner66
-LEDliner70
-LEDliner80
-LEDliner170
-LEDliner40 Trimless
-LEDliner40 Recessed
-LEDliner65 Recessed
-LEDliner100 Trimless
-LEDliner100 Recessed
Luminous flux mentioned is the flux of the LED modules in 4000K Ra90.
For further specifications see table on page 426.
To know the luminous flux of the luminaire, please apply the light output ratios on page 427 or check www.doxis.be.
* Not available in 927. Our supplier, Philips, does not provide 140mm LED modules in 2700K and Tunable White.
