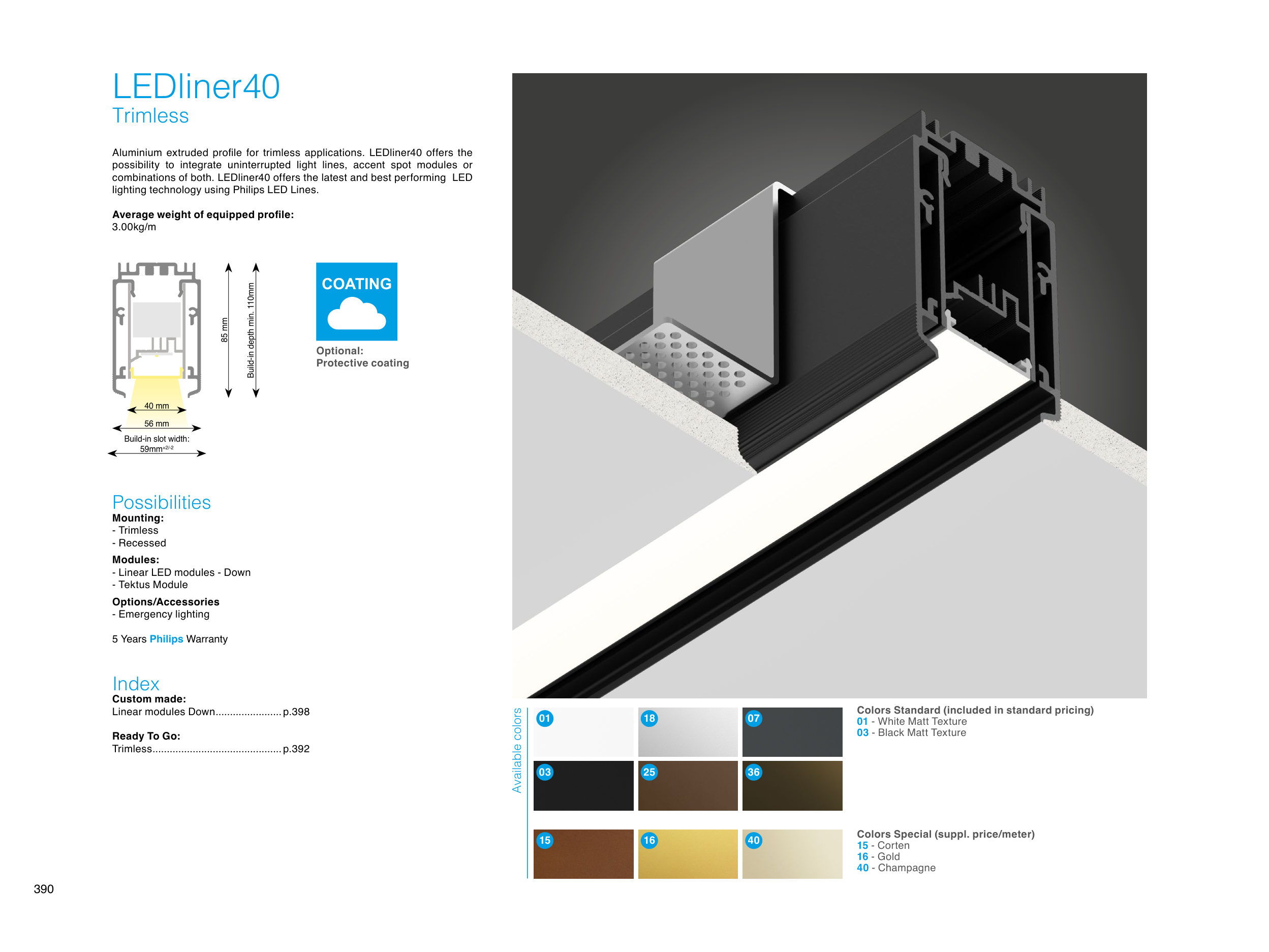

390
Aluminium extruded profile for trimless applications. LEDliner40 offers the
possibility to integrate uninterrupted light lines, accent spot modules or
combinations of both. LEDliner40 offers the latest and best performing LED
lighting technology using Philips LED Lines.
Average weight of equipped profile:
3.00kg/m
Possibilities
Mounting:
- Trimless
- Recessed
Modules:
- Linear LED modules - Down
- Tektus Module
Options/Accessories
- Emergency lighting
5 Years Philips Warranty
Index
Custom made:
Linear modules Down .......................p.398
Ready To Go:
Trimless .............................................p.392
LEDliner40
Trimless
40 mm
85 mm
Build-in depth min. 110mm
Build-in slot width:
59mm+2/-2
56 mm
Available colors
01
15
18
07
03
25
16
36
40
Colors Standard (included in standard pricing)
01 - White Matt Texture
03 - Black Matt Texture
Colors Special (suppl. price/meter)
15 - Corten
16 - Gold
40 - Champagne
Optional:
Protective coating
COATING
