383
Connector Recessed
90°
2196.00.00
180°
2197.00.00
Cover /meter
Opal PC Cover
2200.00.00
Alu cover
2203.00.xx
Alu cover painted in color of profile (xx)
Other colors on request
Mounting Bracket Recessed
Recessed Bracket
2191.00.00
0-1400mm: 2 brackets required
1401-2400mm: 3 brackets required
2401mm-3400mm: 4 brackets required
LEDliner40 Recessed
Recessed Carrier Profile /meter
Standard color
2110.00.xx
Special color
2110.00.xx
Max. length single piece 3400mm
Available colors xx see left page
End cap Recessed (1 piece)
Standard color
2186.00.xx
Special color
2186.00.xx
Available colors xx see left page

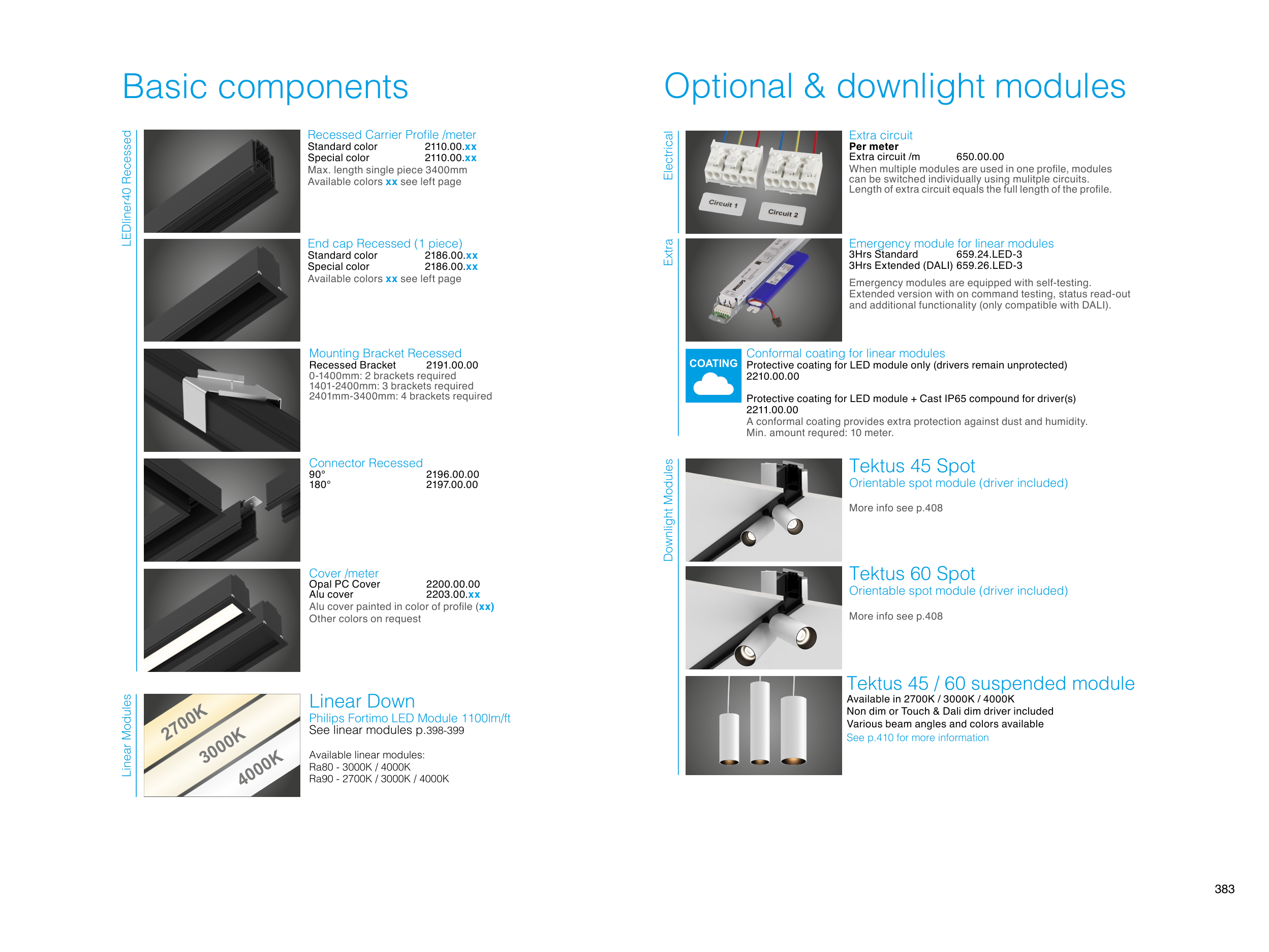

Basic components
Linear Down
Philips Fortimo LED Module 1100lm/ft
See linear modules p.398-399
Available linear modules:
Ra80 - 3000K / 4000K
Ra90 - 2700K / 3000K / 4000K
Linear Modules
Optional & downlight modules
Extra circuit
Per meter
Extra circuit /m
650.00.00
When multiple modules are used in one profile, modules
can be switched individually using mulitple circuits.
Length of extra circuit equals the full length of the profile.
Extra
Electrical
Emergency module for linear modules
3Hrs Standard
659.24.LED-3
3Hrs Extended (DALI) 659.26.LED-3
Emergency modules are equipped with self-testing.
Extended version with on command testing, status read-out
and additional functionality (only compatible with DALI).
Tektus 45 Spot
Orientable spot module (driver included)
More info see p.408
Tektus 60 Spot
Orientable spot module (driver included)
More info see p.408
Downlight Modules
2700K
3000K
4000K
Conformal coating for linear modules
Protective coating for LED module only (drivers remain unprotected)
2210.00.00
Protective coating for LED module + Cast IP65 compound for driver(s)
2211.00.00
A conformal coating provides extra protection against dust and humidity.
Min. amount requred: 10 meter.
COATING
Tektus 45 / 60 suspended module
Available in 2700K / 3000K / 4000K
Non dim or Touch & Dali dim driver included
Various beam angles and colors available
See p.410 for more information
