Profile housing

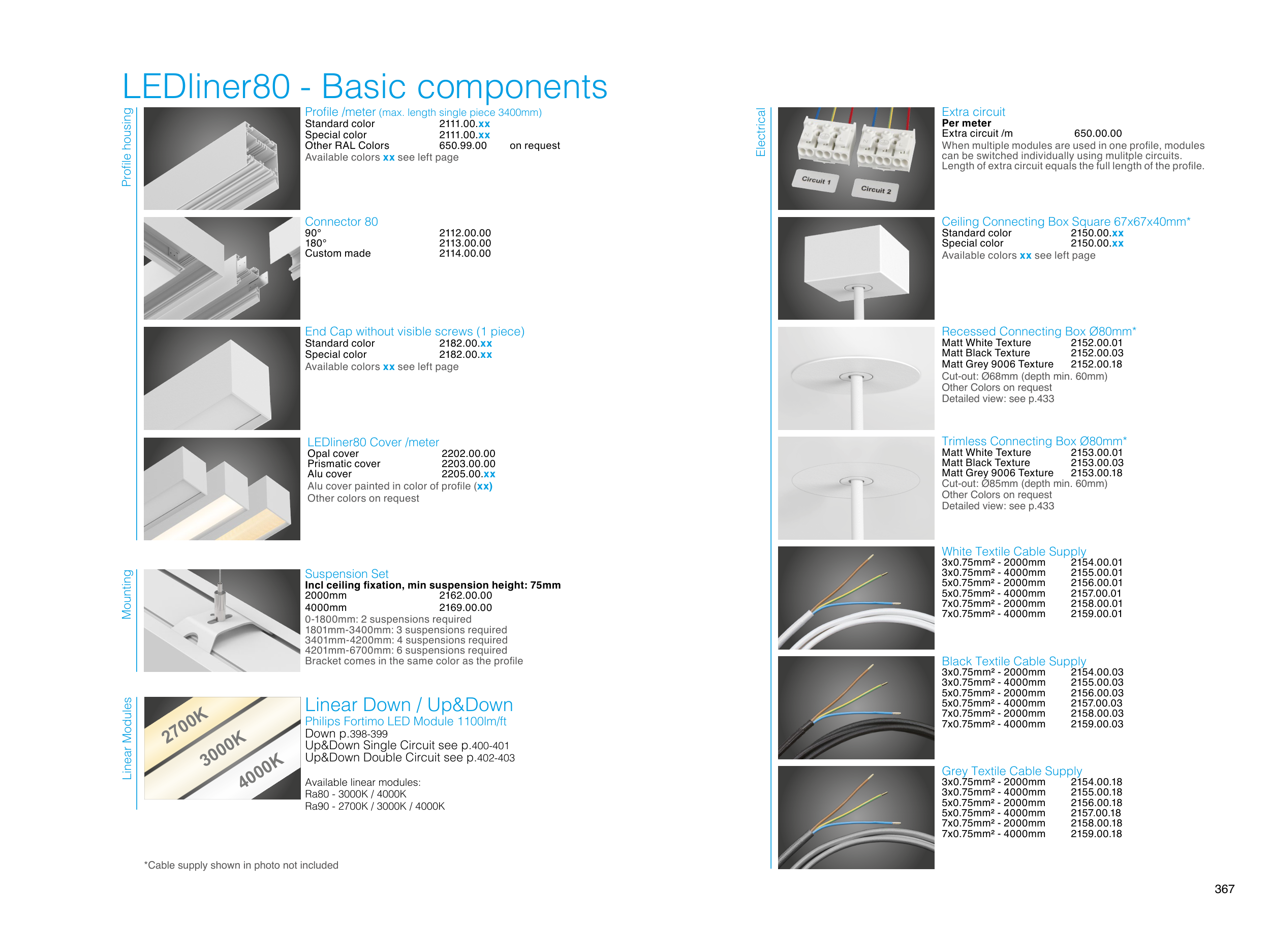

LEDliner80 - Basic components
Profile /meter (max. length single piece 3400mm)
Standard color
2111.00.xx
Special color
2111.00.xx
Other RAL Colors
650.99.00
on request
Available colors xx see left page
Connector 80
90°
2112.00.00
180°
2113.00.00
Custom made
2114.00.00
End Cap without visible screws (1 piece)
Standard color
2182.00.xx
Special color
2182.00.xx
Available colors xx see left page
Mounting
Suspension Set
Incl ceiling fixation, min suspension height: 75mm
2000mm
2162.00.00
4000mm
2169.00.00
0-1800mm: 2 suspensions required
1801mm-3400mm: 3 suspensions required
3401mm-4200mm: 4 suspensions required
4201mm-6700mm: 6 suspensions required
Bracket comes in the same color as the profile
Linear Down / Up&Down
Philips Fortimo LED Module 1100lm/ft
Down p.398-399
Up&Down Single Circuit see p.400-401
Up&Down Double Circuit see p.402-403
Available linear modules:
Ra80 - 3000K / 4000K
Ra90 - 2700K / 3000K / 4000K
Linear Modules
2700K
3000K
4000K
LEDliner80 Cover /meter
Opal cover
2202.00.00
Prismatic cover
2203.00.00
Alu cover
2205.00.xx
Alu cover painted in color of profile (xx)
Other colors on request
*Cable supply shown in photo not included
Extra circuit
Per meter
Extra circuit /m
650.00.00
When multiple modules are used in one profile, modules
can be switched individually using mulitple circuits.
Length of extra circuit equals the full length of the profile.
Electrical
Recessed Connecting Box Ø80mm*
Matt White Texture
2152.00.01
Matt Black Texture
2152.00.03
Matt Grey 9006 Texture
2152.00.18
Cut-out: Ø68mm (depth min. 60mm)
Other Colors on request
Detailed view: see p.433
Trimless Connecting Box Ø80mm*
Matt White Texture
2153.00.01
Matt Black Texture
2153.00.03
Matt Grey 9006 Texture
2153.00.18
Cut-out: Ø85mm (depth min. 60mm)
Other Colors on request
Detailed view: see p.433
White Textile Cable Supply
3x0.75mm² - 2000mm
2154.00.01
3x0.75mm² - 4000mm
2155.00.01
5x0.75mm² - 2000mm
2156.00.01
5x0.75mm² - 4000mm
2157.00.01
7x0.75mm² - 2000mm
2158.00.01
7x0.75mm² - 4000mm
2159.00.01
Black Textile Cable Supply
3x0.75mm² - 2000mm
2154.00.03
3x0.75mm² - 4000mm
2155.00.03
5x0.75mm² - 2000mm
2156.00.03
5x0.75mm² - 4000mm
2157.00.03
7x0.75mm² - 2000mm
2158.00.03
7x0.75mm² - 4000mm
2159.00.03
Grey Textile Cable Supply
3x0.75mm² - 2000mm
2154.00.18
3x0.75mm² - 4000mm
2155.00.18
5x0.75mm² - 2000mm
2156.00.18
5x0.75mm² - 4000mm
2157.00.18
7x0.75mm² - 2000mm
2158.00.18
7x0.75mm² - 4000mm
2159.00.18
Ceiling Connecting Box Square 67x67x40mm*
Standard color
2150.00.xx
Special color
2150.00.xx
Available colors xx see left page
