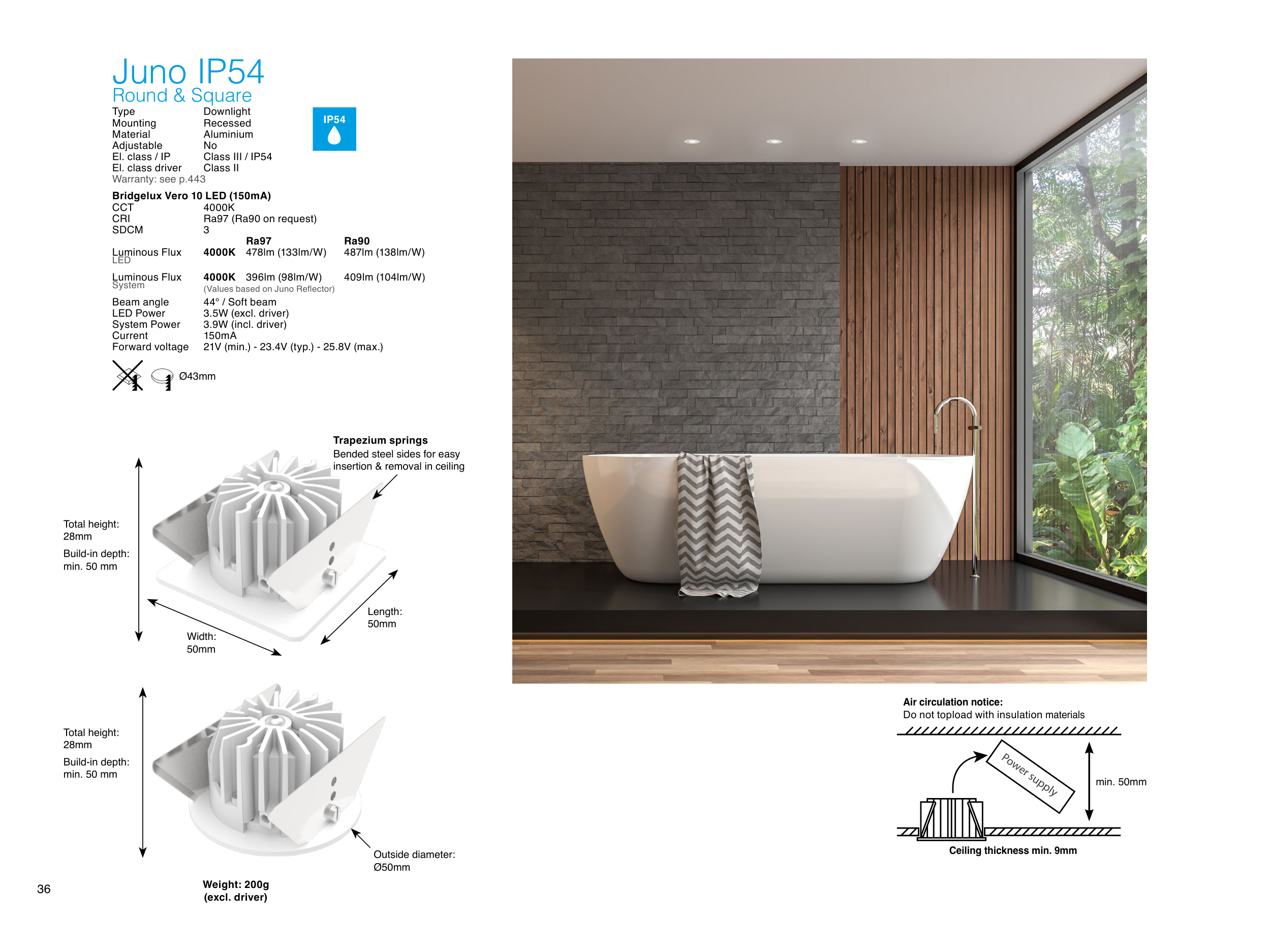

Juno IP54
Round & Square
Type
Downlight
Mounting
Recessed
Material
Aluminium
Adjustable
No
El. class / IP
Class III / IP54
El. class driver
Class II
Warranty: see p.443
Bridgelux Vero 10 LED (150mA)
CCT
4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
4000K 478lm (133lm/W)
487lm (138lm/W)
LED
Luminous Flux
4000K 396lm (98lm/W)
409lm (104lm/W)
System
(Values based on Juno Reflector)
Beam angle
44° / Soft beam
LED Power
3.5W (excl. driver)
System Power
3.9W (incl. driver)
Current
150mA
Forward voltage
21V (min.) - 23.4V (typ.) - 25.8V (max.)
Outside diameter:
Ø50mm
Total height:
28mm
Build-in depth:
min. 50 mm
Total height:
28mm
Build-in depth:
min. 50 mm
Width:
50mm
Length:
50mm
Bended steel sides for easy
insertion & removal in ceiling
Trapezium springs
IP54
Weight: 200g
(excl. driver)
Ø43mm
Power supply
min. 50mm
Air circulation notice:
Do not topload with insulation materials
Ceiling thickness min. 9mm
