359

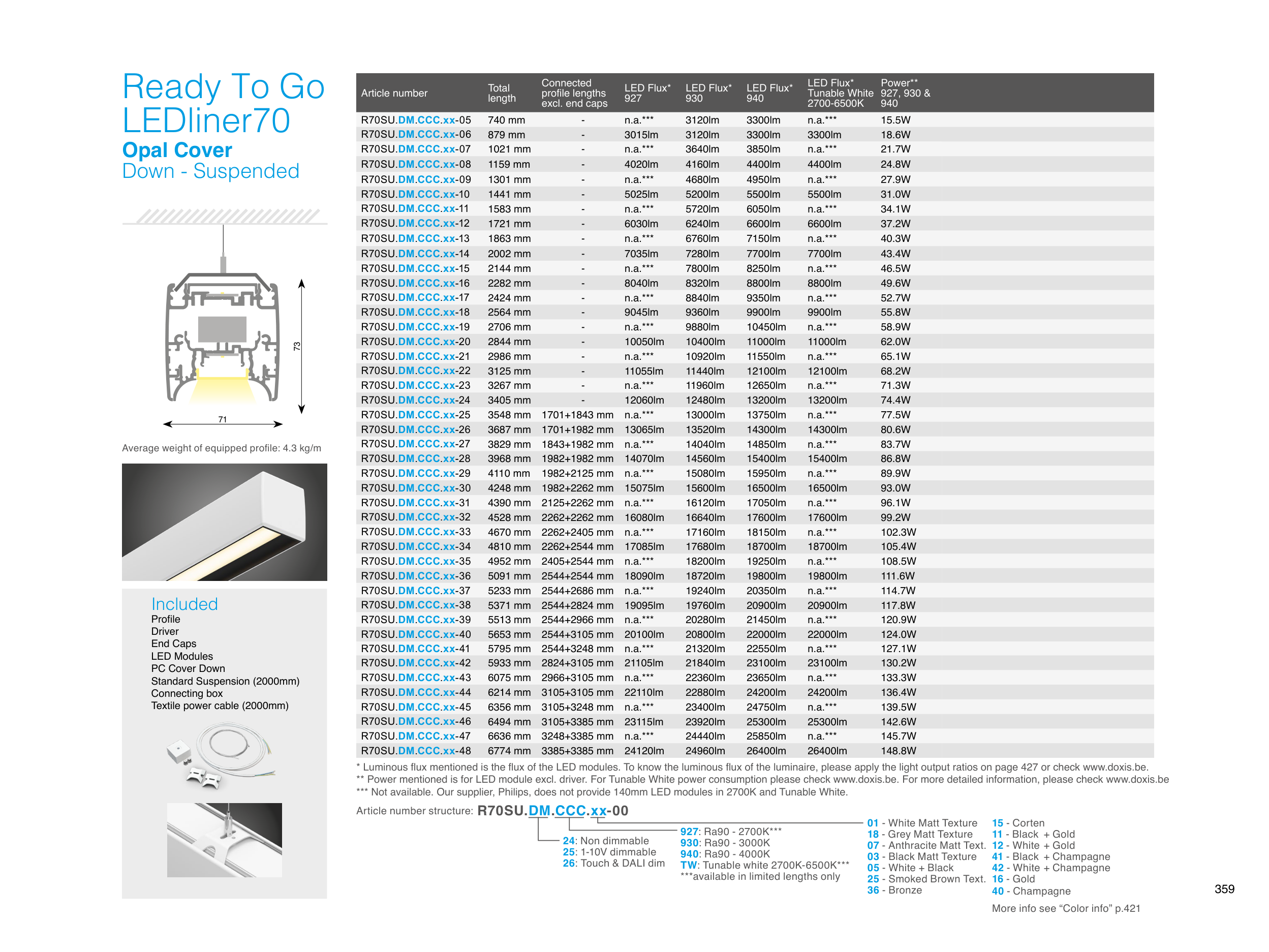

Ready To Go
LEDliner70
Opal Cover
Down - Suspended
* Luminous flux mentioned is the flux of the LED modules. To know the luminous flux of the luminaire, please apply the light output ratios on page 427 or check www.doxis.be.
** Power mentioned is for LED module excl. driver. For Tunable White power consumption please check www.doxis.be. For more detailed information, please check www.doxis.be
*** Not available. Our supplier, Philips, does not provide 140mm LED modules in 2700K and Tunable White.
Article number
Total
length
Connected
profile lengths
excl. end caps
LED Flux*
927
LED Flux*
930
LED Flux*
940
LED Flux*
Tunable White
2700-6500K
Power**
927, 930 &
940
R70SU.DM.CCC.xx-05
740 mm
-
n.a.***
3120lm
3300lm
n.a.***
15.5W
R70SU.DM.CCC.xx-06
879 mm
-
3015lm
3120lm
3300lm
3300lm
18.6W
R70SU.DM.CCC.xx-07
1021 mm
-
n.a.***
3640lm
3850lm
n.a.***
21.7W
R70SU.DM.CCC.xx-08
1159 mm
-
4020lm
4160lm
4400lm
4400lm
24.8W
R70SU.DM.CCC.xx-09
1301 mm
-
n.a.***
4680lm
4950lm
n.a.***
27.9W
R70SU.DM.CCC.xx-10
1441 mm
-
5025lm
5200lm
5500lm
5500lm
31.0W
R70SU.DM.CCC.xx-11
1583 mm
-
n.a.***
5720lm
6050lm
n.a.***
34.1W
R70SU.DM.CCC.xx-12
1721 mm
-
6030lm
6240lm
6600lm
6600lm
37.2W
R70SU.DM.CCC.xx-13
1863 mm
-
n.a.***
6760lm
7150lm
n.a.***
40.3W
R70SU.DM.CCC.xx-14
2002 mm
-
7035lm
7280lm
7700lm
7700lm
43.4W
R70SU.DM.CCC.xx-15
2144 mm
-
n.a.***
7800lm
8250lm
n.a.***
46.5W
R70SU.DM.CCC.xx-16
2282 mm
-
8040lm
8320lm
8800lm
8800lm
49.6W
R70SU.DM.CCC.xx-17
2424 mm
-
n.a.***
8840lm
9350lm
n.a.***
52.7W
R70SU.DM.CCC.xx-18
2564 mm
-
9045lm
9360lm
9900lm
9900lm
55.8W
R70SU.DM.CCC.xx-19
2706 mm
-
n.a.***
9880lm
10450lm
n.a.***
58.9W
R70SU.DM.CCC.xx-20
2844 mm
-
10050lm
10400lm
11000lm
11000lm
62.0W
R70SU.DM.CCC.xx-21
2986 mm
-
n.a.***
10920lm
11550lm
n.a.***
65.1W
R70SU.DM.CCC.xx-22
3125 mm
-
11055lm
11440lm
12100lm
12100lm
68.2W
R70SU.DM.CCC.xx-23
3267 mm
-
n.a.***
11960lm
12650lm
n.a.***
71.3W
R70SU.DM.CCC.xx-24
3405 mm
-
12060lm
12480lm
13200lm
13200lm
74.4W
R70SU.DM.CCC.xx-25
3548 mm
1701+1843 mm
n.a.***
13000lm
13750lm
n.a.***
77.5W
R70SU.DM.CCC.xx-26
3687 mm
1701+1982 mm
13065lm
13520lm
14300lm
14300lm
80.6W
R70SU.DM.CCC.xx-27
3829 mm
1843+1982 mm
n.a.***
14040lm
14850lm
n.a.***
83.7W
R70SU.DM.CCC.xx-28
3968 mm
1982+1982 mm
14070lm
14560lm
15400lm
15400lm
86.8W
R70SU.DM.CCC.xx-29
4110 mm
1982+2125 mm
n.a.***
15080lm
15950lm
n.a.***
89.9W
R70SU.DM.CCC.xx-30
4248 mm
1982+2262 mm
15075lm
15600lm
16500lm
16500lm
93.0W
R70SU.DM.CCC.xx-31
4390 mm
2125+2262 mm
n.a.***
16120lm
17050lm
n.a.***
96.1W
R70SU.DM.CCC.xx-32
4528 mm
2262+2262 mm
16080lm
16640lm
17600lm
17600lm
99.2W
R70SU.DM.CCC.xx-33
4670 mm
2262+2405 mm
n.a.***
17160lm
18150lm
n.a.***
102.3W
R70SU.DM.CCC.xx-34
4810 mm
2262+2544 mm
17085lm
17680lm
18700lm
18700lm
105.4W
R70SU.DM.CCC.xx-35
4952 mm
2405+2544 mm
n.a.***
18200lm
19250lm
n.a.***
108.5W
R70SU.DM.CCC.xx-36
5091 mm
2544+2544 mm
18090lm
18720lm
19800lm
19800lm
111.6W
R70SU.DM.CCC.xx-37
5233 mm
2544+2686 mm
n.a.***
19240lm
20350lm
n.a.***
114.7W
R70SU.DM.CCC.xx-38
5371 mm
2544+2824 mm
19095lm
19760lm
20900lm
20900lm
117.8W
R70SU.DM.CCC.xx-39
5513 mm
2544+2966 mm
n.a.***
20280lm
21450lm
n.a.***
120.9W
R70SU.DM.CCC.xx-40
5653 mm
2544+3105 mm
20100lm
20800lm
22000lm
22000lm
124.0W
R70SU.DM.CCC.xx-41
5795 mm
2544+3248 mm
n.a.***
21320lm
22550lm
n.a.***
127.1W
R70SU.DM.CCC.xx-42
5933 mm
2824+3105 mm
21105lm
21840lm
23100lm
23100lm
130.2W
R70SU.DM.CCC.xx-43
6075 mm
2966+3105 mm
n.a.***
22360lm
23650lm
n.a.***
133.3W
R70SU.DM.CCC.xx-44
6214 mm
3105+3105 mm
22110lm
22880lm
24200lm
24200lm
136.4W
R70SU.DM.CCC.xx-45
6356 mm
3105+3248 mm
n.a.***
23400lm
24750lm
n.a.***
139.5W
R70SU.DM.CCC.xx-46
6494 mm
3105+3385 mm
23115lm
23920lm
25300lm
25300lm
142.6W
R70SU.DM.CCC.xx-47
6636 mm
3248+3385 mm
n.a.***
24440lm
25850lm
n.a.***
145.7W
R70SU.DM.CCC.xx-48
6774 mm
3385+3385 mm
24120lm
24960lm
26400lm
26400lm
148.8W
Average weight of equipped profile: 4.3 kg/m
Included
Profile
Driver
End Caps
LED Modules
PC Cover Down
Standard Suspension (2000mm)
Connecting box
Textile power cable (2000mm)
71
73
Article number structure: R70SU.DM.CCC.xx-00
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
05 - White + Black
25 - Smoked Brown Text.
36 - Bronze
24: Non dimmable
25: 1-10V dimmable
26: Touch & DALI dim
927: Ra90 - 2700K***
930: Ra90 - 3000K
940: Ra90 - 4000K
TW: Tunable white 2700K-6500K***
***available in limited lengths only
15 - Corten
11 - Black + Gold
12 - White + Gold
41 - Black + Champagne
42 - White + Champagne
16 - Gold
40 - Champagne
More info see “Color info” p.421
