Connector
90°
2241.00.00
180°
2242.00.00
Custom made
2178.00.00
Profile housing

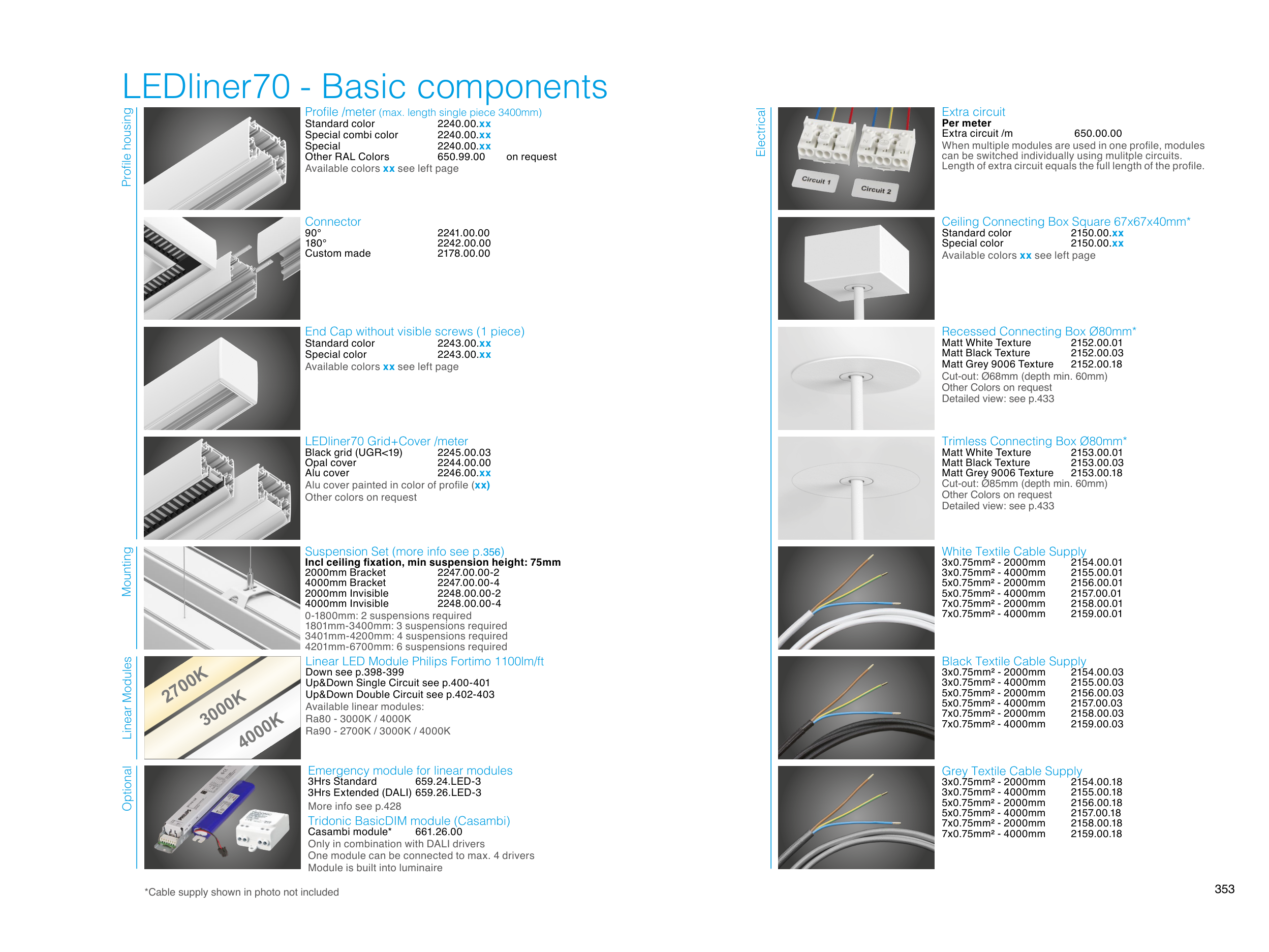

LEDliner70 - Basic components
Profile /meter (max. length single piece 3400mm)
Standard color
2240.00.xx
Special combi color
2240.00.xx
Special
2240.00.xx
Other RAL Colors
650.99.00
on request
Available colors xx see left page
End Cap without visible screws (1 piece)
Standard color
2243.00.xx
Special color
2243.00.xx
Available colors xx see left page
Mounting
*Cable supply shown in photo not included
Linear LED Module Philips Fortimo 1100lm/ft
Down see p.398-399
Up&Down Single Circuit see p.400-401
Up&Down Double Circuit see p.402-403
Available linear modules:
Ra80 - 3000K / 4000K
Ra90 - 2700K / 3000K / 4000K
Linear Modules
Optional
2700K
3000K
4000K
Emergency module for linear modules
3Hrs Standard
659.24.LED-3
3Hrs Extended (DALI) 659.26.LED-3
More info see p.428
Tridonic BasicDIM module (Casambi)
Casambi module*
661.26.00
Only in combination with DALI drivers
One module can be connected to max. 4 drivers
Module is built into luminaire
LEDliner70 Grid+Cover /meter
Black grid (UGR<19)
2245.00.03
Opal cover
2244.00.00
Alu cover
2246.00.xx
Alu cover painted in color of profile (xx)
Other colors on request
Suspension Set (more info see p.356)
Incl ceiling fixation, min suspension height: 75mm
2000mm Bracket
2247.00.00-2
4000mm Bracket
2247.00.00-4
2000mm Invisible
2248.00.00-2
4000mm Invisible
2248.00.00-4
0-1800mm: 2 suspensions required
1801mm-3400mm: 3 suspensions required
3401mm-4200mm: 4 suspensions required
4201mm-6700mm: 6 suspensions required
Extra circuit
Per meter
Extra circuit /m
650.00.00
When multiple modules are used in one profile, modules
can be switched individually using mulitple circuits.
Length of extra circuit equals the full length of the profile.
Electrical
Recessed Connecting Box Ø80mm*
Matt White Texture
2152.00.01
Matt Black Texture
2152.00.03
Matt Grey 9006 Texture
2152.00.18
Cut-out: Ø68mm (depth min. 60mm)
Other Colors on request
Detailed view: see p.433
Trimless Connecting Box Ø80mm*
Matt White Texture
2153.00.01
Matt Black Texture
2153.00.03
Matt Grey 9006 Texture
2153.00.18
Cut-out: Ø85mm (depth min. 60mm)
Other Colors on request
Detailed view: see p.433
White Textile Cable Supply
3x0.75mm² - 2000mm
2154.00.01
3x0.75mm² - 4000mm
2155.00.01
5x0.75mm² - 2000mm
2156.00.01
5x0.75mm² - 4000mm
2157.00.01
7x0.75mm² - 2000mm
2158.00.01
7x0.75mm² - 4000mm
2159.00.01
Black Textile Cable Supply
3x0.75mm² - 2000mm
2154.00.03
3x0.75mm² - 4000mm
2155.00.03
5x0.75mm² - 2000mm
2156.00.03
5x0.75mm² - 4000mm
2157.00.03
7x0.75mm² - 2000mm
2158.00.03
7x0.75mm² - 4000mm
2159.00.03
Grey Textile Cable Supply
3x0.75mm² - 2000mm
2154.00.18
3x0.75mm² - 4000mm
2155.00.18
5x0.75mm² - 2000mm
2156.00.18
5x0.75mm² - 4000mm
2157.00.18
7x0.75mm² - 2000mm
2158.00.18
7x0.75mm² - 4000mm
2159.00.18
