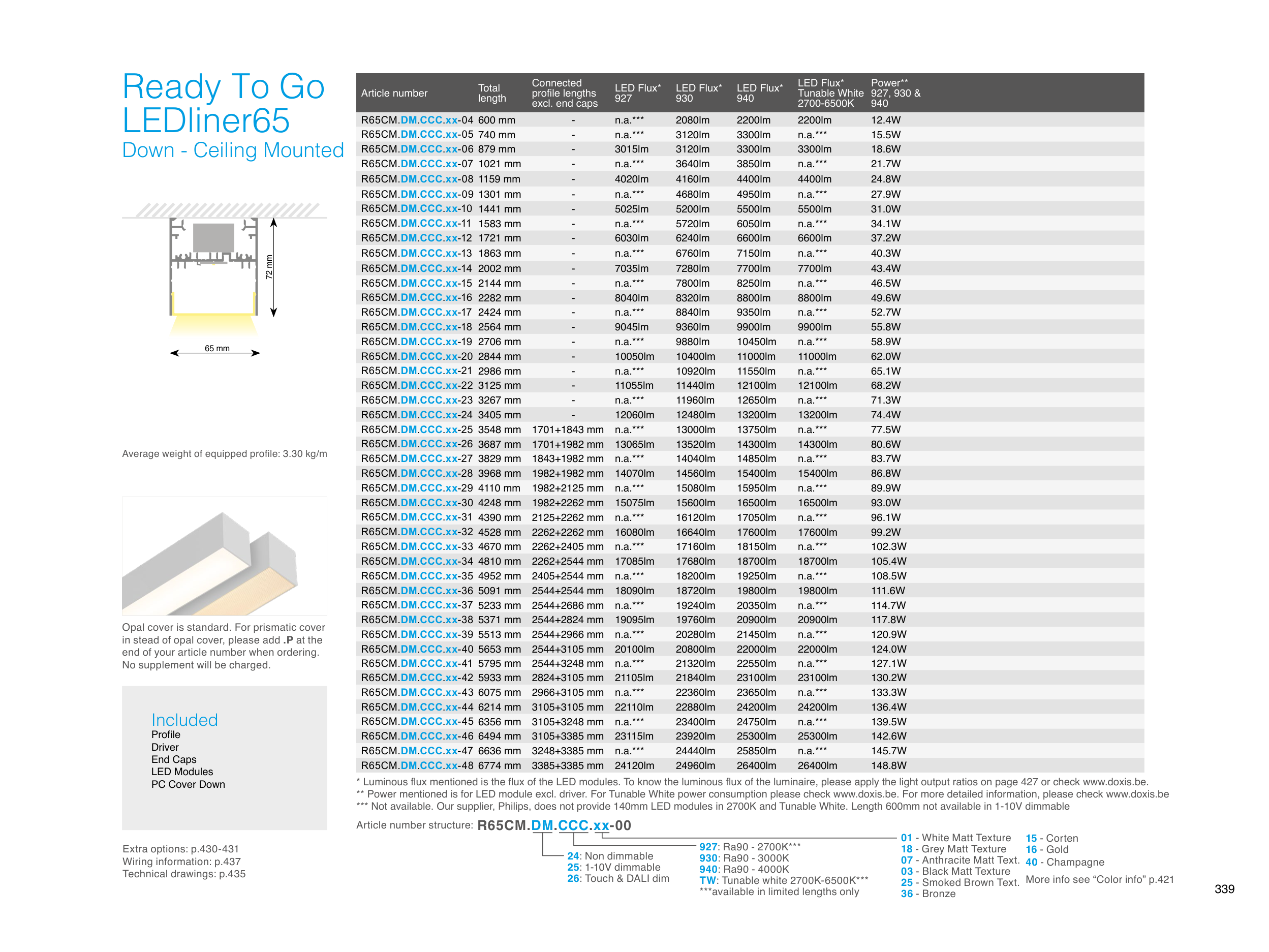

Ready To Go
LEDliner65
Down - Ceiling Mounted
Included
Profile
Driver
End Caps
LED Modules
PC Cover Down
Opal cover is standard. For prismatic cover
in stead of opal cover, please add .P at the
end of your article number when ordering.
No supplement will be charged.
72 mm
65 mm
Average weight of equipped profile: 3.30 kg/m
* Luminous flux mentioned is the flux of the LED modules. To know the luminous flux of the luminaire, please apply the light output ratios on page 427 or check www.doxis.be.
** Power mentioned is for LED module excl. driver. For Tunable White power consumption please check www.doxis.be. For more detailed information, please check www.doxis.be
*** Not available. Our supplier, Philips, does not provide 140mm LED modules in 2700K and Tunable White. Length 600mm not available in 1-10V dimmable
Article number structure: R65CM.DM.CCC.xx-00
Article number
Total
length
Connected
profile lengths
excl. end caps
LED Flux*
927
LED Flux*
930
LED Flux*
940
LED Flux*
Tunable White
2700-6500K
Power**
927, 930 &
940
R65CM.DM.CCC.xx-04 600 mm
-
n.a.***
2080lm
2200lm
2200lm
12.4W
R65CM.DM.CCC.xx-05 740 mm
-
n.a.***
3120lm
3300lm
n.a.***
15.5W
R65CM.DM.CCC.xx-06 879 mm
-
3015lm
3120lm
3300lm
3300lm
18.6W
R65CM.DM.CCC.xx-07 1021 mm
-
n.a.***
3640lm
3850lm
n.a.***
21.7W
R65CM.DM.CCC.xx-08 1159 mm
-
4020lm
4160lm
4400lm
4400lm
24.8W
R65CM.DM.CCC.xx-09 1301 mm
-
n.a.***
4680lm
4950lm
n.a.***
27.9W
R65CM.DM.CCC.xx-10 1441 mm
-
5025lm
5200lm
5500lm
5500lm
31.0W
R65CM.DM.CCC.xx-11 1583 mm
-
n.a.***
5720lm
6050lm
n.a.***
34.1W
R65CM.DM.CCC.xx-12 1721 mm
-
6030lm
6240lm
6600lm
6600lm
37.2W
R65CM.DM.CCC.xx-13 1863 mm
-
n.a.***
6760lm
7150lm
n.a.***
40.3W
R65CM.DM.CCC.xx-14 2002 mm
-
7035lm
7280lm
7700lm
7700lm
43.4W
R65CM.DM.CCC.xx-15 2144 mm
-
n.a.***
7800lm
8250lm
n.a.***
46.5W
R65CM.DM.CCC.xx-16 2282 mm
-
8040lm
8320lm
8800lm
8800lm
49.6W
R65CM.DM.CCC.xx-17 2424 mm
-
n.a.***
8840lm
9350lm
n.a.***
52.7W
R65CM.DM.CCC.xx-18 2564 mm
-
9045lm
9360lm
9900lm
9900lm
55.8W
R65CM.DM.CCC.xx-19 2706 mm
-
n.a.***
9880lm
10450lm
n.a.***
58.9W
R65CM.DM.CCC.xx-20 2844 mm
-
10050lm
10400lm
11000lm
11000lm
62.0W
R65CM.DM.CCC.xx-21 2986 mm
-
n.a.***
10920lm
11550lm
n.a.***
65.1W
R65CM.DM.CCC.xx-22 3125 mm
-
11055lm
11440lm
12100lm
12100lm
68.2W
R65CM.DM.CCC.xx-23 3267 mm
-
n.a.***
11960lm
12650lm
n.a.***
71.3W
R65CM.DM.CCC.xx-24 3405 mm
-
12060lm
12480lm
13200lm
13200lm
74.4W
R65CM.DM.CCC.xx-25 3548 mm
1701+1843 mm
n.a.***
13000lm
13750lm
n.a.***
77.5W
R65CM.DM.CCC.xx-26 3687 mm
1701+1982 mm
13065lm
13520lm
14300lm
14300lm
80.6W
R65CM.DM.CCC.xx-27 3829 mm
1843+1982 mm
n.a.***
14040lm
14850lm
n.a.***
83.7W
R65CM.DM.CCC.xx-28 3968 mm
1982+1982 mm
14070lm
14560lm
15400lm
15400lm
86.8W
R65CM.DM.CCC.xx-29 4110 mm
1982+2125 mm
n.a.***
15080lm
15950lm
n.a.***
89.9W
R65CM.DM.CCC.xx-30 4248 mm
1982+2262 mm
15075lm
15600lm
16500lm
16500lm
93.0W
R65CM.DM.CCC.xx-31 4390 mm
2125+2262 mm
n.a.***
16120lm
17050lm
n.a.***
96.1W
R65CM.DM.CCC.xx-32 4528 mm
2262+2262 mm
16080lm
16640lm
17600lm
17600lm
99.2W
R65CM.DM.CCC.xx-33 4670 mm
2262+2405 mm
n.a.***
17160lm
18150lm
n.a.***
102.3W
R65CM.DM.CCC.xx-34 4810 mm
2262+2544 mm
17085lm
17680lm
18700lm
18700lm
105.4W
R65CM.DM.CCC.xx-35 4952 mm
2405+2544 mm
n.a.***
18200lm
19250lm
n.a.***
108.5W
R65CM.DM.CCC.xx-36 5091 mm
2544+2544 mm
18090lm
18720lm
19800lm
19800lm
111.6W
R65CM.DM.CCC.xx-37 5233 mm
2544+2686 mm
n.a.***
19240lm
20350lm
n.a.***
114.7W
R65CM.DM.CCC.xx-38 5371 mm
2544+2824 mm
19095lm
19760lm
20900lm
20900lm
117.8W
R65CM.DM.CCC.xx-39 5513 mm
2544+2966 mm
n.a.***
20280lm
21450lm
n.a.***
120.9W
R65CM.DM.CCC.xx-40 5653 mm
2544+3105 mm
20100lm
20800lm
22000lm
22000lm
124.0W
R65CM.DM.CCC.xx-41 5795 mm
2544+3248 mm
n.a.***
21320lm
22550lm
n.a.***
127.1W
R65CM.DM.CCC.xx-42 5933 mm
2824+3105 mm
21105lm
21840lm
23100lm
23100lm
130.2W
R65CM.DM.CCC.xx-43 6075 mm
2966+3105 mm
n.a.***
22360lm
23650lm
n.a.***
133.3W
R65CM.DM.CCC.xx-44 6214 mm
3105+3105 mm
22110lm
22880lm
24200lm
24200lm
136.4W
R65CM.DM.CCC.xx-45 6356 mm
3105+3248 mm
n.a.***
23400lm
24750lm
n.a.***
139.5W
R65CM.DM.CCC.xx-46 6494 mm
3105+3385 mm
23115lm
23920lm
25300lm
25300lm
142.6W
R65CM.DM.CCC.xx-47 6636 mm
3248+3385 mm
n.a.***
24440lm
25850lm
n.a.***
145.7W
R65CM.DM.CCC.xx-48 6774 mm
3385+3385 mm
24120lm
24960lm
26400lm
26400lm
148.8W
Extra options: p.430-431
Wiring information: p.437
Technical drawings: p.435
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
25 - Smoked Brown Text.
36 - Bronze
15 - Corten
16 - Gold
40 - Champagne
More info see “Color info” p.421
24: Non dimmable
25: 1-10V dimmable
26: Touch & DALI dim
927: Ra90 - 2700K***
930: Ra90 - 3000K
940: Ra90 - 4000K
TW: Tunable white 2700K-6500K***
***available in limited lengths only
