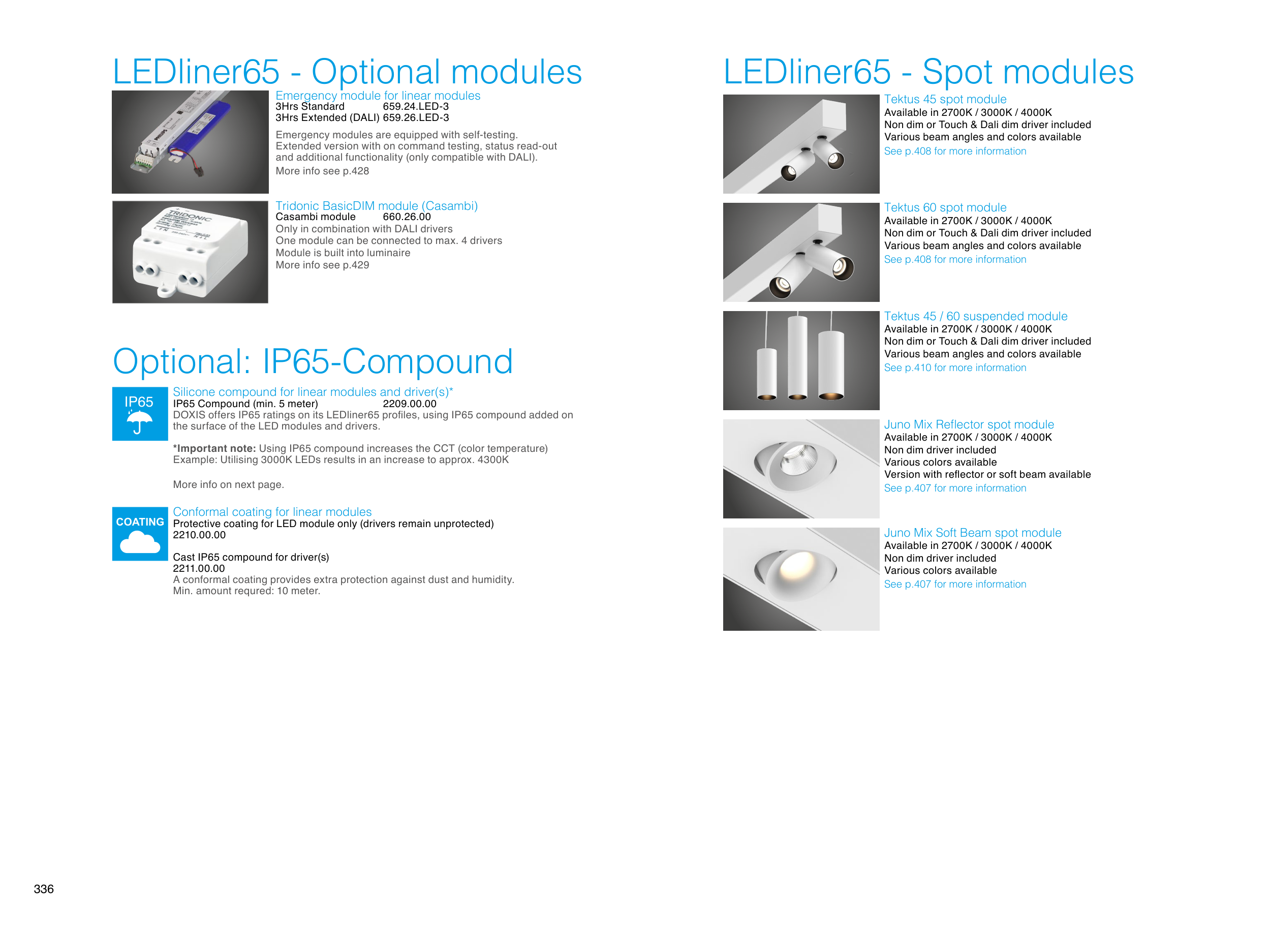

LEDliner65 - Optional modules
Optional: IP65-Compound
Emergency module for linear modules
3Hrs Standard
659.24.LED-3
3Hrs Extended (DALI) 659.26.LED-3
Emergency modules are equipped with self-testing.
Extended version with on command testing, status read-out
and additional functionality (only compatible with DALI).
More info see p.428
Silicone compound for linear modules and driver(s)*
IP65 Compound (min. 5 meter)
2209.00.00
DOXIS offers IP65 ratings on its LEDliner65 profiles, using IP65 compound added on
the surface of the LED modules and drivers.
*Important note: Using IP65 compound increases the CCT (color temperature)
Example: Utilising 3000K LEDs results in an increase to approx. 4300K
More info on next page.
IP65
Tridonic BasicDIM module (Casambi)
Casambi module
660.26.00
Only in combination with DALI drivers
One module can be connected to max. 4 drivers
Module is built into luminaire
More info see p.429
LEDliner65 - Spot modules
Tektus 60 spot module
Available in 2700K / 3000K / 4000K
Non dim or Touch & Dali dim driver included
Various beam angles and colors available
See p.408 for more information
Tektus 45 / 60 suspended module
Available in 2700K / 3000K / 4000K
Non dim or Touch & Dali dim driver included
Various beam angles and colors available
See p.410 for more information
Tektus 45 spot module
Available in 2700K / 3000K / 4000K
Non dim or Touch & Dali dim driver included
Various beam angles and colors available
See p.408 for more information
Juno Mix Reflector spot module
Available in 2700K / 3000K / 4000K
Non dim driver included
Various colors available
Version with reflector or soft beam available
See p.407 for more information
Juno Mix Soft Beam spot module
Available in 2700K / 3000K / 4000K
Non dim driver included
Various colors available
See p.407 for more information
COATING Conformal coating for linear modules
Protective coating for LED module only (drivers remain unprotected)
2210.00.00
Cast IP65 compound for driver(s)
2211.00.00
A conformal coating provides extra protection against dust and humidity.
Min. amount requred: 10 meter.
