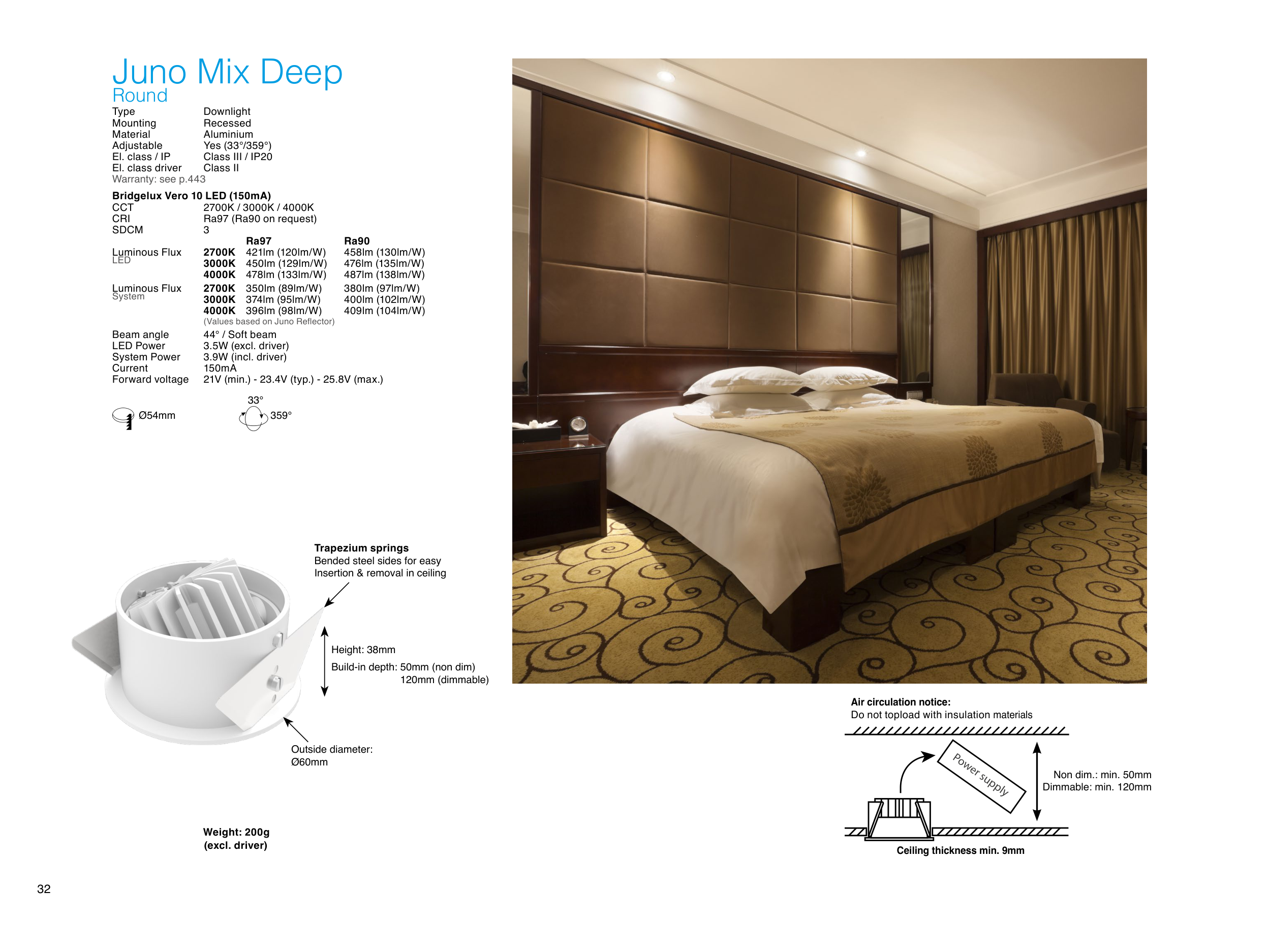

Juno Mix Deep
Round
Type
Downlight
Mounting
Recessed
Material
Aluminium
Adjustable
Yes (33°/359°)
El. class / IP
Class III / IP20
El. class driver
Class II
Warranty: see p.443
Bridgelux Vero 10 LED (150mA)
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K 421lm (120lm/W)
458lm (130lm/W)
LED
3000K 450lm (129lm/W)
476lm (135lm/W)
4000K 478lm (133lm/W)
487lm (138lm/W)
Luminous Flux
2700K 350lm (89lm/W)
380lm (97lm/W)
System
3000K 374lm (95lm/W)
400lm (102lm/W)
4000K 396lm (98lm/W)
409lm (104lm/W)
(Values based on Juno Reflector)
Beam angle
44° / Soft beam
LED Power
3.5W (excl. driver)
System Power
3.9W (incl. driver)
Current
150mA
Forward voltage
21V (min.) - 23.4V (typ.) - 25.8V (max.)
Weight: 200g
(excl. driver)
359°
33°
Ø54mm
Power supply
Non dim.: min. 50mm
Dimmable: min. 120mm
Air circulation notice:
Do not topload with insulation materials
Ceiling thickness min. 9mm
Outside diameter:
Ø60mm
Height: 38mm
Build-in depth: 50mm (non dim)
120mm (dimmable)
Trapezium springs
Bended steel sides for easy
Insertion & removal in ceiling
