310

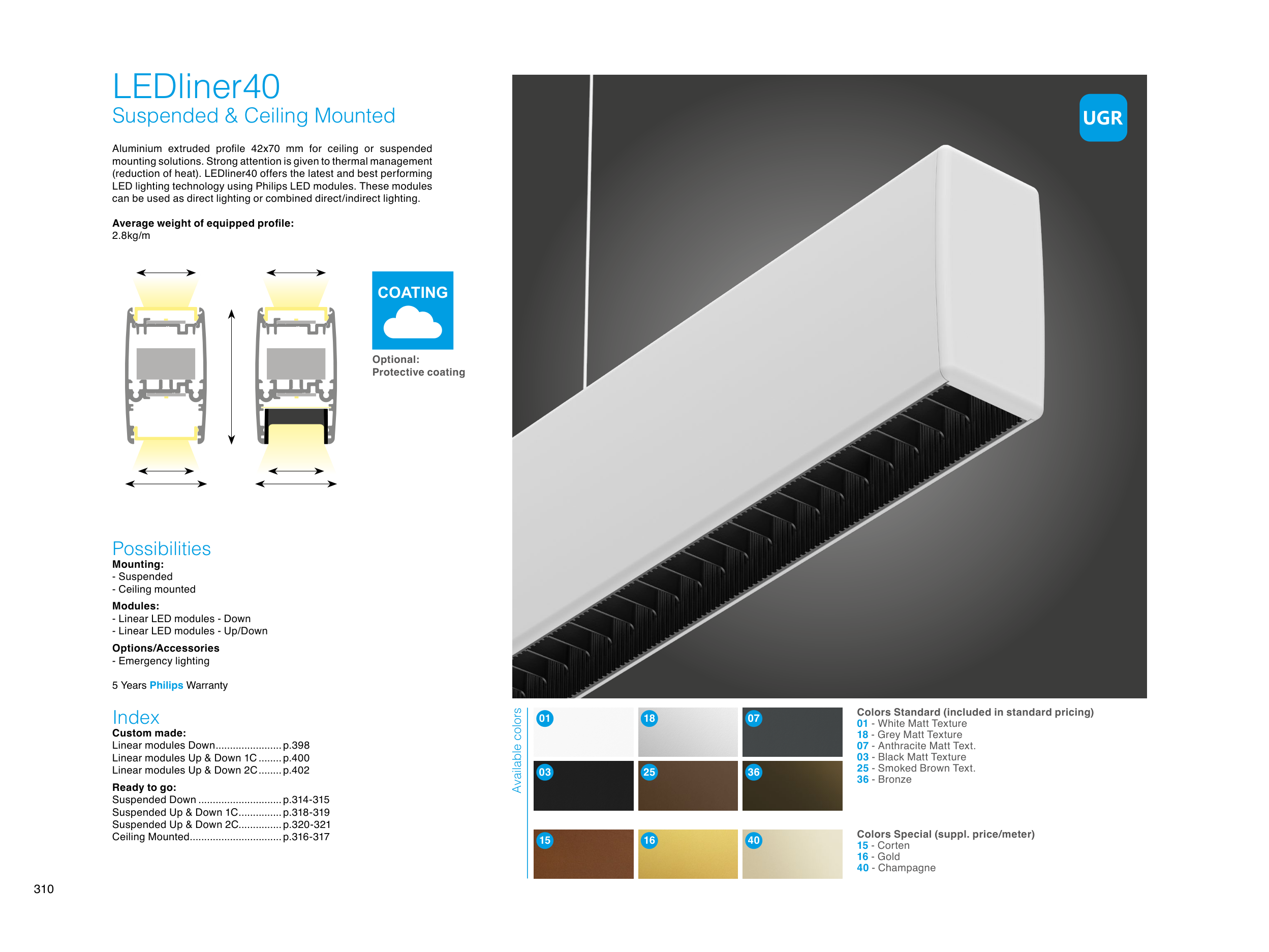

Aluminium extruded profile 42x70 mm for ceiling or suspended
mounting solutions. Strong attention is given to thermal management
(reduction of heat). LEDliner40 offers the latest and best performing
LED lighting technology using Philips LED modules. These modules
can be used as direct lighting or combined direct/indirect lighting.
Average weight of equipped profile:
2.8kg/m
Possibilities
Mounting:
- Suspended
- Ceiling mounted
Modules:
- Linear LED modules - Down
- Linear LED modules - Up/Down
Options/Accessories
- Emergency lighting
5 Years Philips Warranty
Index
Custom made:
Linear modules Down .......................p.398
Linear modules Up & Down 1C ........p.400
Linear modules Up & Down 2C ........p.402
Ready to go:
Suspended Down .............................p.314-315
Suspended Up & Down 1C ...............p.318-319
Suspended Up & Down 2C...............p.320-321
Ceiling Mounted ................................p.316-317
LEDliner40
Suspended & Ceiling Mounted
Available colors
01
15
18
07
03
25
16
36
40
Colors Standard (included in standard pricing)
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
25 - Smoked Brown Text.
36 - Bronze
Colors Special (suppl. price/meter)
15 - Corten
16 - Gold
40 - Champagne
Optional:
Protective coating
COATING
