302
Possibilities
Mounting:
- Suspended
- Ceiling mounted
- Wall mounted
Modules:
- Linear LED modules - Down
Options/Accessories
- Emergency lighting
- Daylight/presence sensor
UGR Rated in transversal direction
with prismatic cover
5 Years Philips Warranty
Index
Custom made:
Linear modules Down .......................p.398
Ready to go:
Suspended ........................................p.305
Ceiling mounted ................................p.306
Wall mounted ....................................p.307

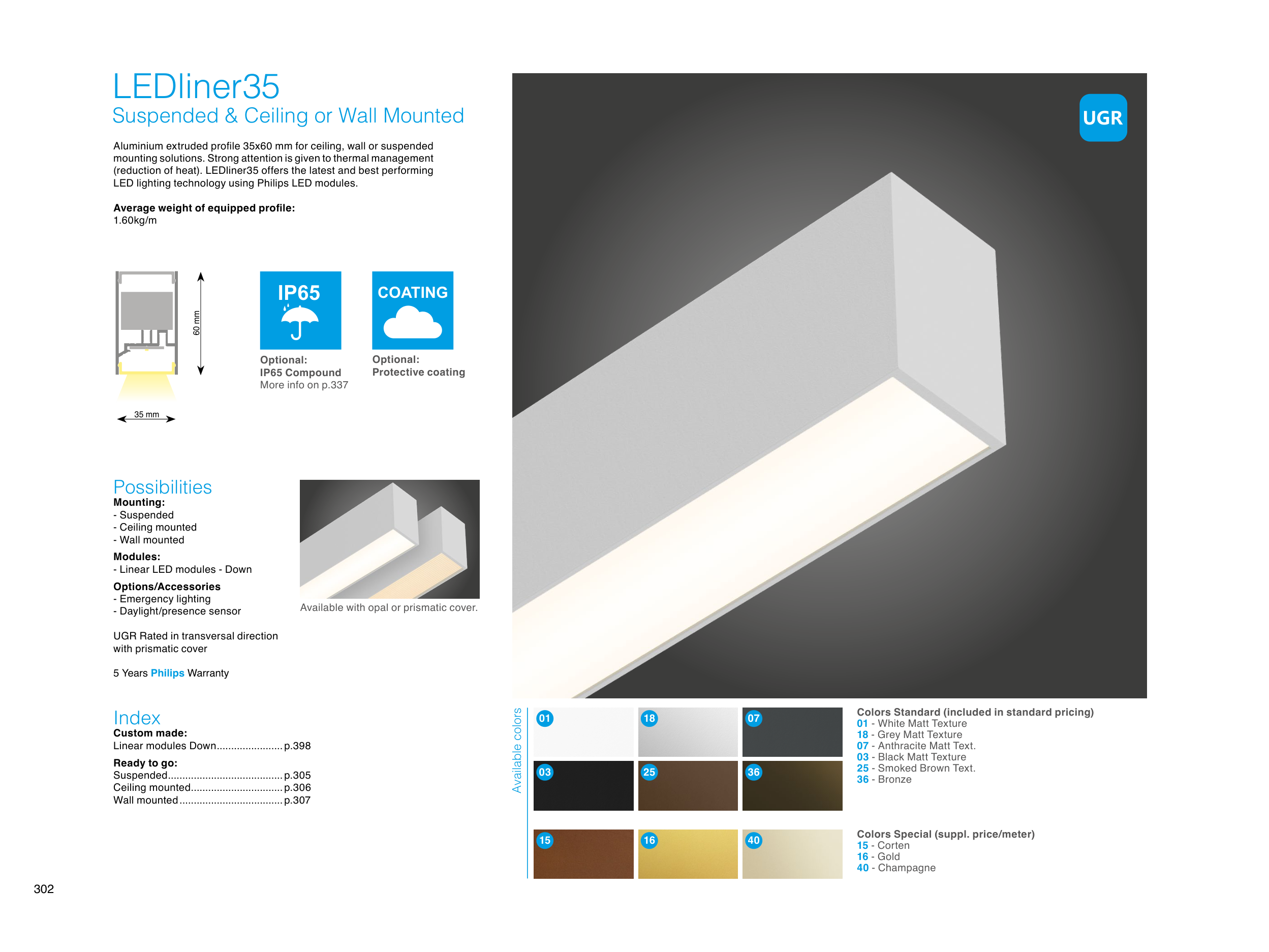

Aluminium extruded profile 35x60 mm for ceiling, wall or suspended
mounting solutions. Strong attention is given to thermal management
(reduction of heat). LEDliner35 offers the latest and best performing
LED lighting technology using Philips LED modules.
Average weight of equipped profile:
1.60kg/m
LEDliner35
Suspended & Ceiling or Wall Mounted
60 mm
35 mm
Available colors
IP65
Optional:
IP65 Compound
More info on p.337
01
15
18
07
03
25
16
36
40
Colors Standard (included in standard pricing)
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
25 - Smoked Brown Text.
36 - Bronze
Colors Special (suppl. price/meter)
15 - Corten
16 - Gold
40 - Champagne
Optional:
Protective coating
COATING
Available with opal or prismatic cover.
