301

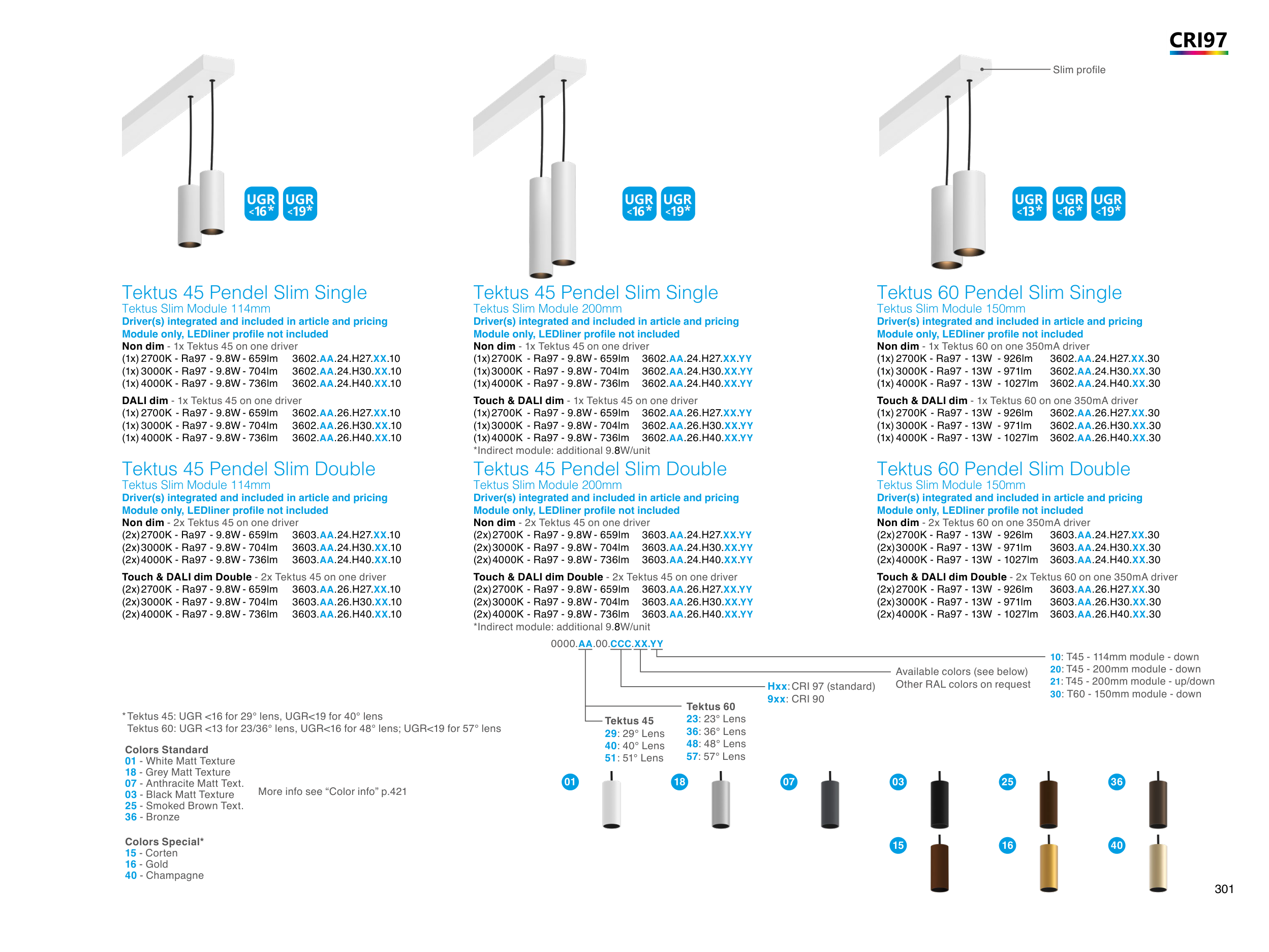

Tektus 45 Pendel Slim Double
Tektus Slim Module 114mm
Driver(s) integrated and included in article and pricing
Module only, LEDliner profile not included
Non dim - 2x Tektus 45 on one driver
(2x) 2700K - Ra97 - 9.8W - 659lm
3603.AA.24.H27.XX.10
(2x) 3000K - Ra97 - 9.8W - 704lm
3603.AA.24.H30.XX.10
(2x) 4000K - Ra97 - 9.8W - 736lm
3603.AA.24.H40.XX.10
Touch & DALI dim Double - 2x Tektus 45 on one driver
(2x) 2700K - Ra97 - 9.8W - 659lm
3603.AA.26.H27.XX.10
(2x) 3000K - Ra97 - 9.8W - 704lm
3603.AA.26.H30.XX.10
(2x) 4000K - Ra97 - 9.8W - 736lm
3603.AA.26.H40.XX.10
Tektus 45 Pendel Slim Single
Tektus Slim Module 114mm
Driver(s) integrated and included in article and pricing
Module only, LEDliner profile not included
Non dim - 1x Tektus 45 on one driver
(1x) 2700K - Ra97 - 9.8W - 659lm
3602.AA.24.H27.XX.10
(1x) 3000K - Ra97 - 9.8W - 704lm
3602.AA.24.H30.XX.10
(1x) 4000K - Ra97 - 9.8W - 736lm
3602.AA.24.H40.XX.10
DALI dim - 1x Tektus 45 on one driver
(1x) 2700K - Ra97 - 9.8W - 659lm
3602.AA.26.H27.XX.10
(1x) 3000K - Ra97 - 9.8W - 704lm
3602.AA.26.H30.XX.10
(1x) 4000K - Ra97 - 9.8W - 736lm
3602.AA.26.H40.XX.10
Tektus 60 Pendel Slim Double
Tektus Slim Module 150mm
Driver(s) integrated and included in article and pricing
Module only, LEDliner profile not included
Non dim - 2x Tektus 60 on one 350mA driver
(2x) 2700K - Ra97 - 13W - 926lm
3603.AA.24.H27.XX.30
(2x) 3000K - Ra97 - 13W - 971lm
3603.AA.24.H30.XX.30
(2x) 4000K - Ra97 - 13W - 1027lm
3603.AA.24.H40.XX.30
Touch & DALI dim Double - 2x Tektus 60 on one 350mA driver
(2x) 2700K - Ra97 - 13W - 926lm
3603.AA.26.H27.XX.30
(2x) 3000K - Ra97 - 13W - 971lm
3603.AA.26.H30.XX.30
(2x) 4000K - Ra97 - 13W - 1027lm
3603.AA.26.H40.XX.30
Tektus 60 Pendel Slim Single
Tektus Slim Module 150mm
Driver(s) integrated and included in article and pricing
Module only, LEDliner profile not included
Non dim - 1x Tektus 60 on one 350mA driver
(1x) 2700K - Ra97 - 13W - 926lm
3602.AA.24.H27.XX.30
(1x) 3000K - Ra97 - 13W - 971lm
3602.AA.24.H30.XX.30
(1x) 4000K - Ra97 - 13W - 1027lm
3602.AA.24.H40.XX.30
Touch & DALI dim - 1x Tektus 60 on one 350mA driver
(1x) 2700K - Ra97 - 13W - 926lm
3602.AA.26.H27.XX.30
(1x) 3000K - Ra97 - 13W - 971lm
3602.AA.26.H30.XX.30
(1x) 4000K - Ra97 - 13W - 1027lm
3602.AA.26.H40.XX.30
Tektus 45 Pendel Slim Double
Tektus Slim Module 200mm
Driver(s) integrated and included in article and pricing
Module only, LEDliner profile not included
Non dim - 2x Tektus 45 on one driver
(2x) 2700K - Ra97 - 9.8W - 659lm
3603.AA.24.H27.XX.YY
(2x) 3000K - Ra97 - 9.8W - 704lm
3603.AA.24.H30.XX.YY
(2x) 4000K - Ra97 - 9.8W - 736lm
3603.AA.24.H40.XX.YY
Touch & DALI dim Double - 2x Tektus 45 on one driver
(2x) 2700K - Ra97 - 9.8W - 659lm
3603.AA.26.H27.XX.YY
(2x) 3000K - Ra97 - 9.8W - 704lm
3603.AA.26.H30.XX.YY
(2x) 4000K - Ra97 - 9.8W - 736lm
3603.AA.26.H40.XX.YY
*Indirect module: additional 9.8W/unit
Tektus 45 Pendel Slim Single
Tektus Slim Module 200mm
Driver(s) integrated and included in article and pricing
Module only, LEDliner profile not included
Non dim - 1x Tektus 45 on one driver
(1x) 2700K - Ra97 - 9.8W - 659lm
3602.AA.24.H27.XX.YY
(1x) 3000K - Ra97 - 9.8W - 704lm
3602.AA.24.H30.XX.YY
(1x) 4000K - Ra97 - 9.8W - 736lm
3602.AA.24.H40.XX.YY
Touch & DALI dim - 1x Tektus 45 on one driver
(1x) 2700K - Ra97 - 9.8W - 659lm
3602.AA.26.H27.XX.YY
(1x) 3000K - Ra97 - 9.8W - 704lm
3602.AA.26.H30.XX.YY
(1x) 4000K - Ra97 - 9.8W - 736lm
3602.AA.26.H40.XX.YY
*Indirect module: additional 9.8W/unit
Slim profile
More info see “Color info” p.421
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
25 - Smoked Brown Text.
36 - Bronze
Colors Special*
15 - Corten
16 - Gold
40 - Champagne
* Tektus 45: UGR <16 for 29° lens, UGR<19 for 40° lens
Tektus 60: UGR <13 for 23/36° lens, UGR<16 for 48° lens; UGR<19 for 57° lens
10: T45 - 114mm module - down
20: T45 - 200mm module - down
21: T45 - 200mm module - up/down
30: T60 - 150mm module - down
Tektus 60
23: 23° Lens
36: 36° Lens
48: 48° Lens
57: 57° Lens
0000.AA.00.CCC.XX.YY
Available colors (see below)
Other RAL colors on request
Hxx: CRI 97 (standard)
9xx: CRI 90
Tektus 45
29 : 29° Lens
40 : 40° Lens
51 : 51° Lens
CRI97
01
15
18
07
03
25
16
36
40
