300
Tektus 60 Direct Mounted Single
Tektus Slim Module 150mm
Driver(s) integrated and included in article and pricing
Module only, LEDliner profile not included
Non dim - 1x Tektus 60 on one 350mA driver
(1x) 2700K - Ra97 - 13W - 926lm
1250.AA.24.H27.XX
(1x) 3000K - Ra97 - 13W - 971lm
1250.AA.24.H30.XX
(1x) 4000K - Ra97 - 13W - 1027lm
1250.AA.24.H40.XX
Touch & DALI dim Single - 1x Tektus 60 on one 350mA driver
(1x) 2700K - Ra97 - 13W - 926lm
1250.AA.26.H27.XX
(1x) 3000K - Ra97 - 13W - 971lm
1250.AA.26.H30.XX
(1x) 4000K - Ra97 - 13W - 1027lm
1250.AA.26.H40.XX
Tektus 60 Direct Mounted Double
Tektus Slim Module 150mm
Driver(s) integrated and included in article and pricing
Module only, LEDliner profile not included
Non dim - 2x Tektus 60 on one 350mA driver
(2x) 2700K - Ra97 - 13W - 926lm
1302.AA.24.H27.XX
(2x) 3000K - Ra97 - 13W - 971lm
1302.AA.24.H30.XX
(2x) 4000K - Ra97 - 13W - 1027lm
1302.AA.24.H40.XX
Touch & DALI dim Double - 2x Tektus 60 on one 350mA driver
(2x) 2700K - Ra97 - 13W - 926lm
1302.AA.26.H27.XX
(2x) 3000K - Ra97 - 13W - 971lm
1302.AA.26.H30.XX
(2x) 4000K - Ra97 - 13W - 1027lm
1302.AA.26.H40.XX
Tektus 45 Direct Mounted Single
Tektus Slim Module 114mm
Driver(s) integrated and included in article and pricing
Module only, LEDliner profile not included
Non dim - 1x Tektus 45 on one driver
(1x) 2700K - Ra97 - 9.8W - 659lm
1248.AA.24.H27.XX
(1x) 3000K - Ra97 - 9.8W - 704lm
1248.AA.24.H30.XX
(1x) 4000K - Ra97 - 9.8W - 736lm
1248.AA.24.H40.XX
Touch & DALI dim Single - 1x Tektus 45 on one driver
(1x) 2700K - Ra97 - 9.8W - 659lm
1248.AA.26.H27.XX
(1x) 3000K - Ra97 - 9.8W - 704lm
1248.AA.26.H30.XX
(1x) 4000K - Ra97 - 9.8W - 736lm
1248.AA.26.H40.XX
Tektus 45 Direct Mounted Double
Tektus Slim Module 114mm
Driver(s) integrated and included in article and pricing
Module only, LEDliner profile not included
Non dim - 2x Tektus 45 on one driver
(2x) 2700K - Ra97 - 9.8W - 659lm
1300.AA.24.H27.XX
(2x) 3000K - Ra97 - 9.8W - 704lm
1300.AA.24.H30.XX
(2x) 4000K - Ra97 - 9.8W - 736lm
1300.AA.24.H40.XX
Touch & DALI dim Double - 2x Tektus 45 on one driver
(2x) 2700K - Ra97 - 9.8W - 659lm
1300.AA.26.H27.XX
(2x) 3000K - Ra97 - 9.8W - 704lm
1300.AA.26.H30.XX
(2x) 4000K - Ra97 - 9.8W - 736lm
1300.AA.26.H40.XX

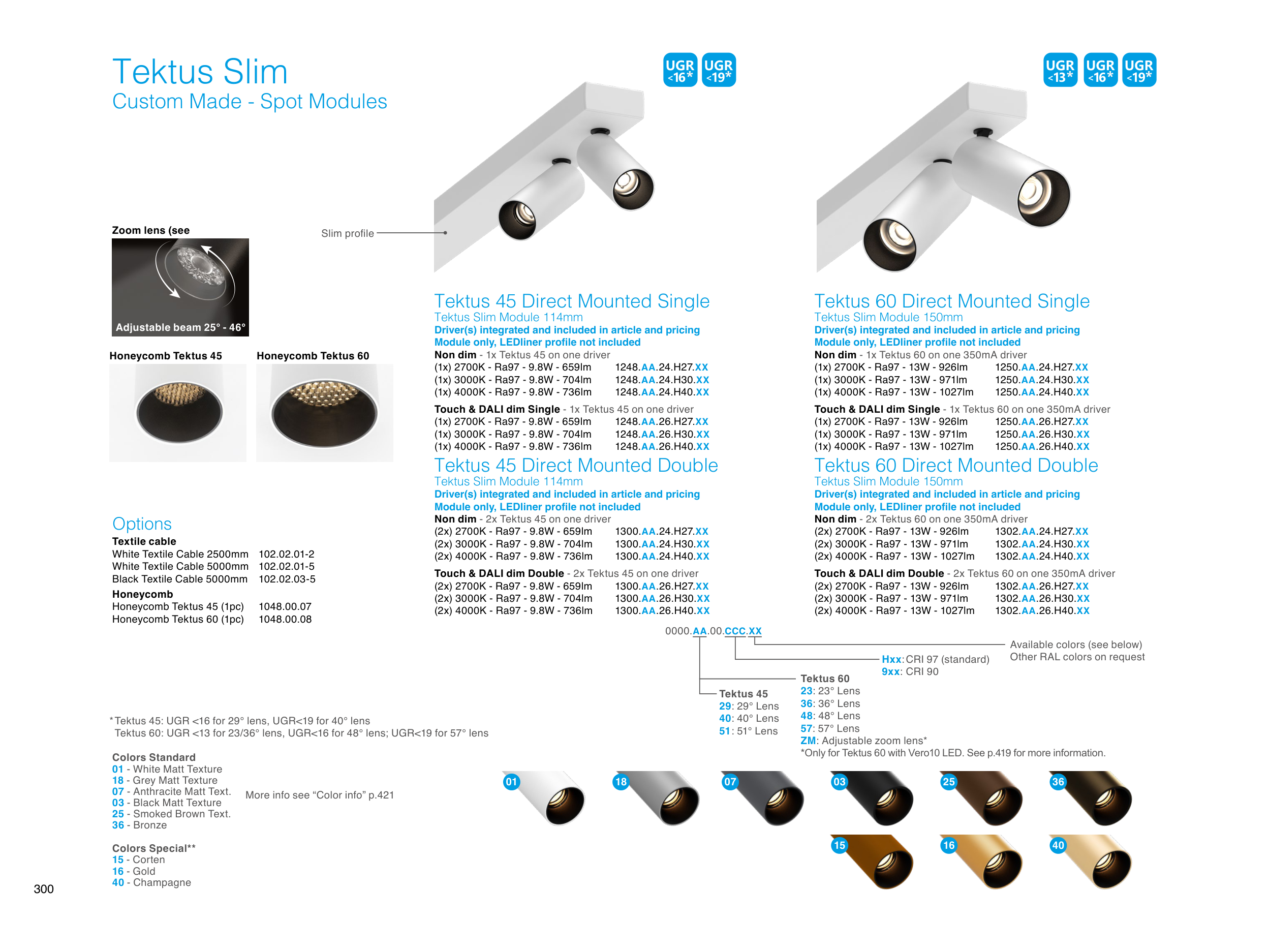

Tektus Slim
Custom Made - Spot Modules
Options
Textile cable
White Textile Cable 2500mm 102.02.01-2
White Textile Cable 5000mm 102.02.01-5
Black Textile Cable 5000mm 102.02.03-5
Honeycomb
Honeycomb Tektus 45 (1pc)
1048.00.07
Honeycomb Tektus 60 (1pc)
1048.00.08
Slim profile
More info see “Color info” p.421
Colors Standard
01 - White Matt Texture
18 - Grey Matt Texture
07 - Anthracite Matt Text.
03 - Black Matt Texture
25 - Smoked Brown Text.
36 - Bronze
Colors Special**
15 - Corten
16 - Gold
40 - Champagne
* Tektus 45: UGR <16 for 29° lens, UGR<19 for 40° lens
Tektus 60: UGR <13 for 23/36° lens, UGR<16 for 48° lens; UGR<19 for 57° lens
Tektus 60
23: 23° Lens
36: 36° Lens
48: 48° Lens
57: 57° Lens
ZM: Adjustable zoom lens*
*Only for Tektus 60 with Vero10 LED. See p.419 for more information.
0000.AA.00.CCC.XX
Available colors (see below)
Other RAL colors on request
Hxx: CRI 97 (standard)
9xx: CRI 90
Tektus 45
29 : 29° Lens
40 : 40° Lens
51 : 51° Lens
Honeycomb Tektus 60
Honeycomb Tektus 45
01
15
18
07
03
25
16
36
40
Zoom lens (see
Adjustable beam 25° - 46°
