292

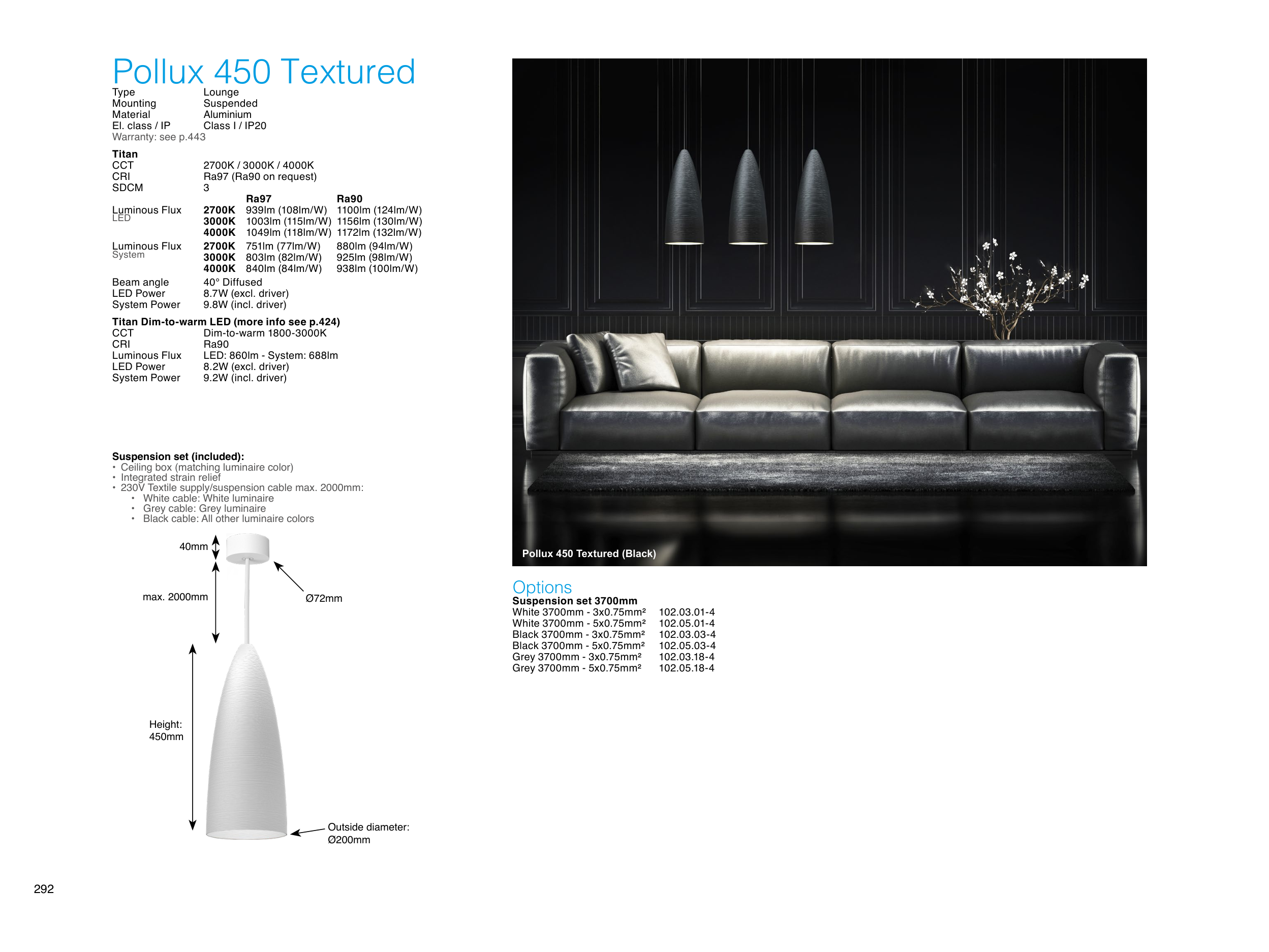

Pollux 450 Textured
Outside diameter:
Ø200mm
Height:
450mm
40mm
max. 2000mm
Ø72mm
Options
Suspension set 3700mm
White 3700mm - 3x0.75mm²
102.03.01-4
White 3700mm - 5x0.75mm²
102.05.01-4
Black 3700mm - 3x0.75mm²
102.03.03-4
Black 3700mm - 5x0.75mm²
102.05.03-4
Grey 3700mm - 3x0.75mm²
102.03.18-4
Grey 3700mm - 5x0.75mm²
102.05.18-4
Type
Lounge
Mounting
Suspended
Material
Aluminium
El. class / IP
Class I / IP20
Warranty: see p.443
Titan
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K 939lm (108lm/W) 1100lm (124lm/W)
LED
3000K 1003lm (115lm/W) 1156lm (130lm/W)
4000K 1049lm (118lm/W) 1172lm (132lm/W)
Luminous Flux
2700K 751lm (77lm/W)
880lm (94lm/W)
System
3000K 803lm (82lm/W)
925lm (98lm/W)
4000K 840lm (84lm/W)
938lm (100lm/W)
Beam angle
40° Diffused
LED Power
8.7W (excl. driver)
System Power
9.8W (incl. driver)
Titan Dim-to-warm LED (more info see p.424)
CCT
Dim-to-warm 1800-3000K
CRI
Ra90
Luminous Flux
LED: 860lm - System: 688lm
LED Power
8.2W (excl. driver)
System Power
9.2W (incl. driver)
Pollux 450 Textured (Black)
Suspension set (included):
• Ceiling box (matching luminaire color)
• Integrated strain relief
• 230V Textile supply/suspension cable max. 2000mm:
• White cable: White luminaire
• Grey cable: Grey luminaire
• Black cable: All other luminaire colors
