284

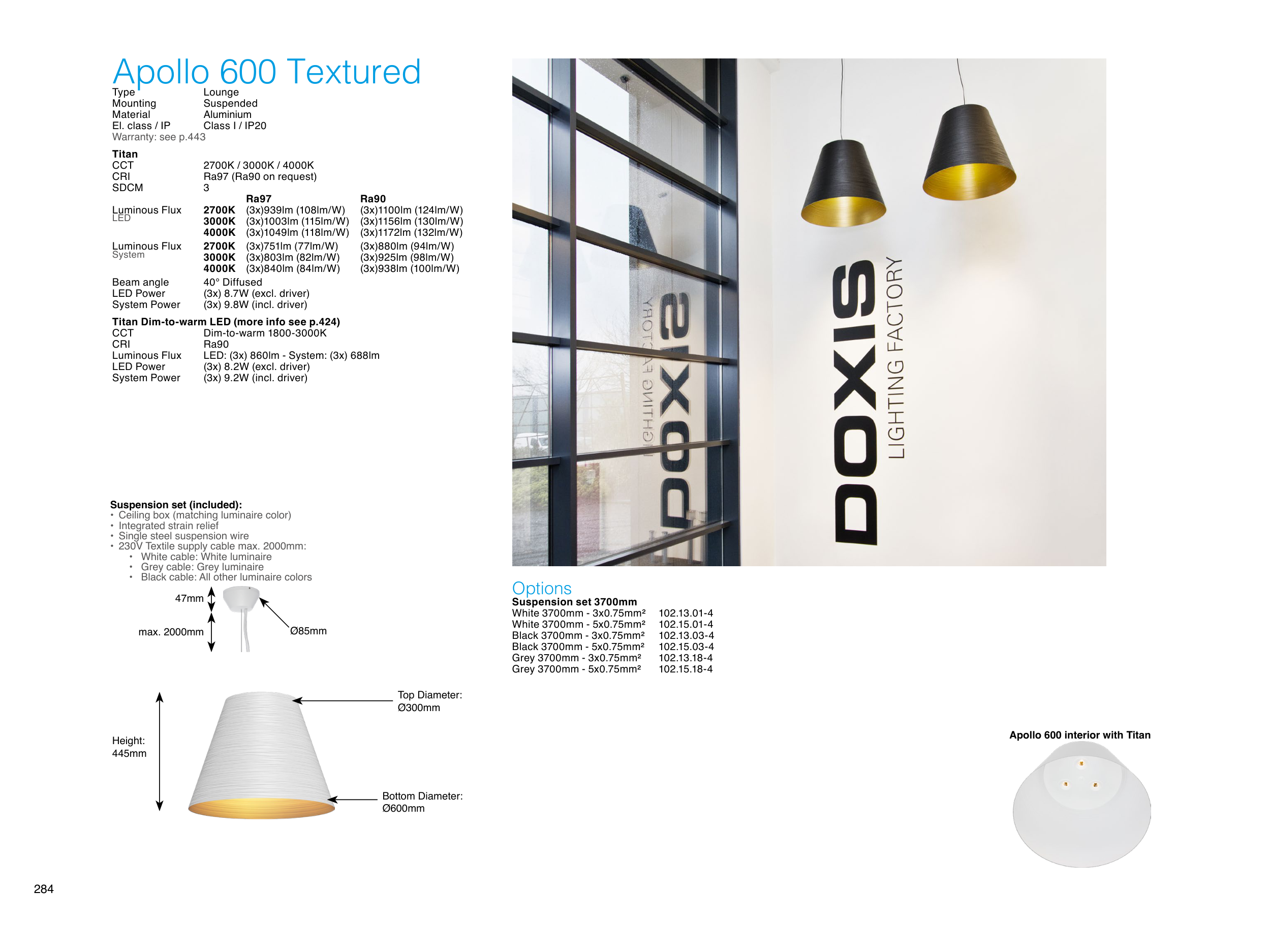

Apollo 600 Textured
Bottom Diameter:
Ø600mm
Top Diameter:
Ø300mm
Height:
445mm
Apollo 600 interior with Titan
Type
Lounge
Mounting
Suspended
Material
Aluminium
El. class / IP
Class I / IP20
Warranty: see p.443
Titan
CCT
2700K / 3000K / 4000K
CRI
Ra97 (Ra90 on request)
SDCM
3
Ra97
Ra90
Luminous Flux
2700K (3x)939lm (108lm/W)
(3x)1100lm (124lm/W)
LED
3000K (3x)1003lm (115lm/W) (3x)1156lm (130lm/W)
4000K (3x)1049lm (118lm/W) (3x)1172lm (132lm/W)
Luminous Flux
2700K (3x)751lm (77lm/W)
(3x)880lm (94lm/W)
System
3000K (3x)803lm (82lm/W)
(3x)925lm (98lm/W)
4000K (3x)840lm (84lm/W)
(3x)938lm (100lm/W)
Beam angle
40° Diffused
LED Power
(3x) 8.7W (excl. driver)
System Power
(3x) 9.8W (incl. driver)
Titan Dim-to-warm LED (more info see p.424)
CCT
Dim-to-warm 1800-3000K
CRI
Ra90
Luminous Flux
LED: (3x) 860lm - System: (3x) 688lm
LED Power
(3x) 8.2W (excl. driver)
System Power
(3x) 9.2W (incl. driver)
Suspension set (included):
• Ceiling box (matching luminaire color)
• Integrated strain relief
• Single steel suspension wire
• 230V Textile supply cable max. 2000mm:
• White cable: White luminaire
• Grey cable: Grey luminaire
• Black cable: All other luminaire colors
47mm
max. 2000mm
Ø85mm
Options
Suspension set 3700mm
White 3700mm - 3x0.75mm²
102.13.01-4
White 3700mm - 5x0.75mm²
102.15.01-4
Black 3700mm - 3x0.75mm²
102.13.03-4
Black 3700mm - 5x0.75mm²
102.15.03-4
Grey 3700mm - 3x0.75mm²
102.13.18-4
Grey 3700mm - 5x0.75mm²
102.15.18-4
